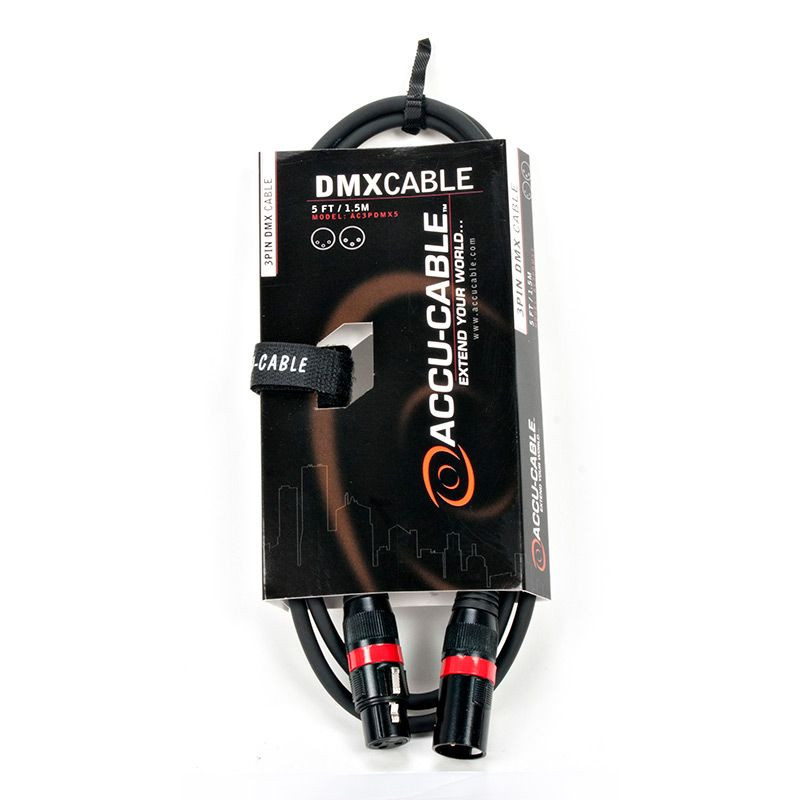

Accu-Cable AC3PDMX 5 Foot DMX Lighting Cable, 005 Ft

In Stock In Stock and Ready To Ship
Free Shipping FREE Ground Shipping On Orders Over $99

to the contiguous U.S. (details) (Get US Shipping Quote)
$7.95
VIP Price:
accucable ac3pdmx   005 ft
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

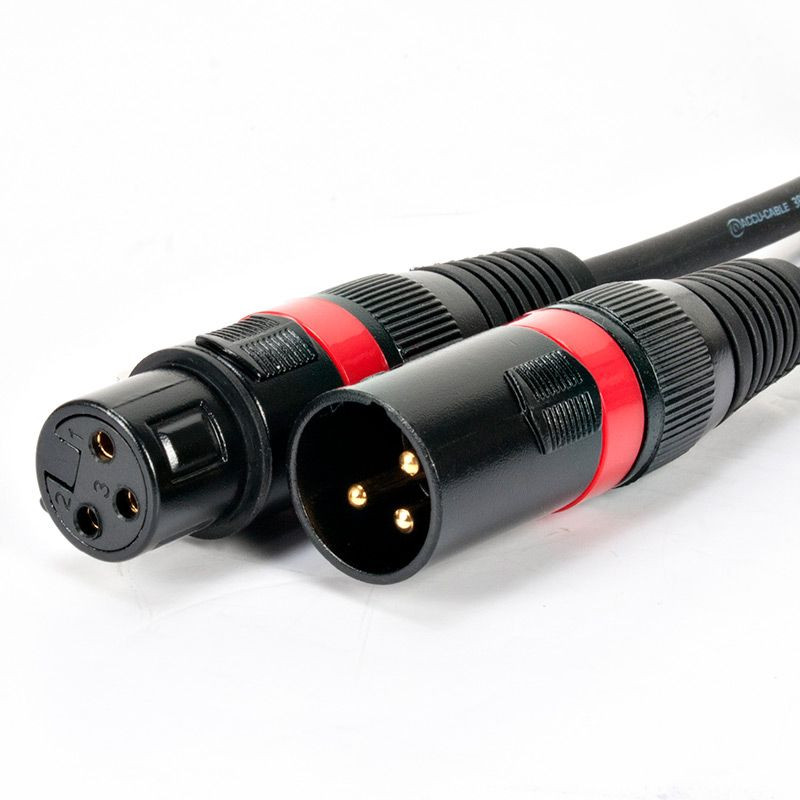

5-foot DMX Cable - 3-pin male to 3-pin female connection. The Accu-Cable AC3PDMX5 is perfect for connecting DMX lights, controllers, and other 3-pin DMX512 products.

• No memory rugged 22 AWG cable
• For connecting DMX lights and controllers
• Stranded tinned copper conductors
• Polyethylene insulation and inner jacket
• PVC jacket to prevent from kinking.

Conductor:
• Number of Pairs: 1
• Total Number of Conductors: 2
• AWG: 22
• Stranding: 0.15 x 19
• Diameter: .0354"
• Material: TC-Tinned Copper

Insulation Material:
• PE Polyethylene

• Lay Length: 2.5"
• Direction: Left Hand Lay
• Twists: 4.8 per foot

Inner Jacket:
• Material: PE Polyethylene
• Diameter: .055"
• Pair Color Code: Black/White

Outer Shield:
• Trade Name: Duofoil
• Type: Tape/Braid

Outer Shield Material:
• Layer Number:1, Material Trade Name: Dufoil, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
• Layer Number: 2, Material Trade Name: Dufoil, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85

Outer Jacket Material:
• PVC-Polyvinyl Chloride

Overall Nominal Diameter:
• 0.229"

Mechanical Characteristics:
• Operating Temperature Range: (-30C To +75C)
• Bulk Cable Weight: 31 lbs/1000
• Minimum Bend Radius (Install): 3.2"
• Maximum Recommended Pull Tension: 72 lbs.

Electrical Characteristics:
• Nominal Characteristic Impedance: 110 Ohms
• Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/f t
• Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
• Nominal Velocity of Propagation: 66%
• Nominal Delay: 1.6 Nanoseconds per foot
• Nominal Conductor DC Resistance @ 20C: 24 Ohms/1000 ft
• Nominal Outer Shield DC Resistance @ 20C: 3.4 Ohms/ 1000 ft
• Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft
• Maximum Recommended Current: 2.1 amps per conductor @ 25C

Additional Information

UPC640282090599
SKUAC3PDMX 005 FT
ManufacturerAccu Cable
Price$7.95
Product ConditionNew
