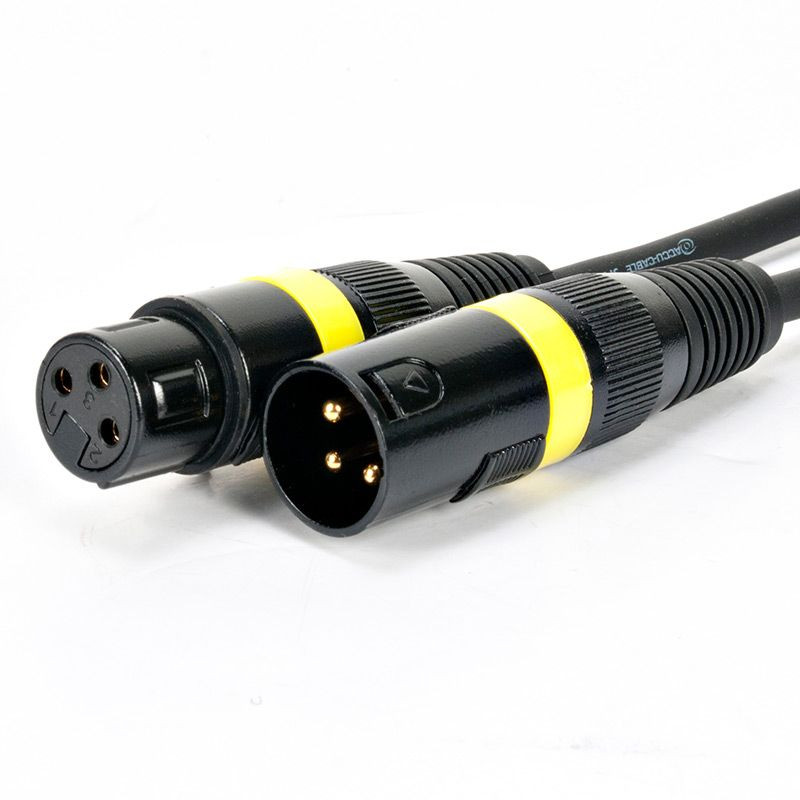

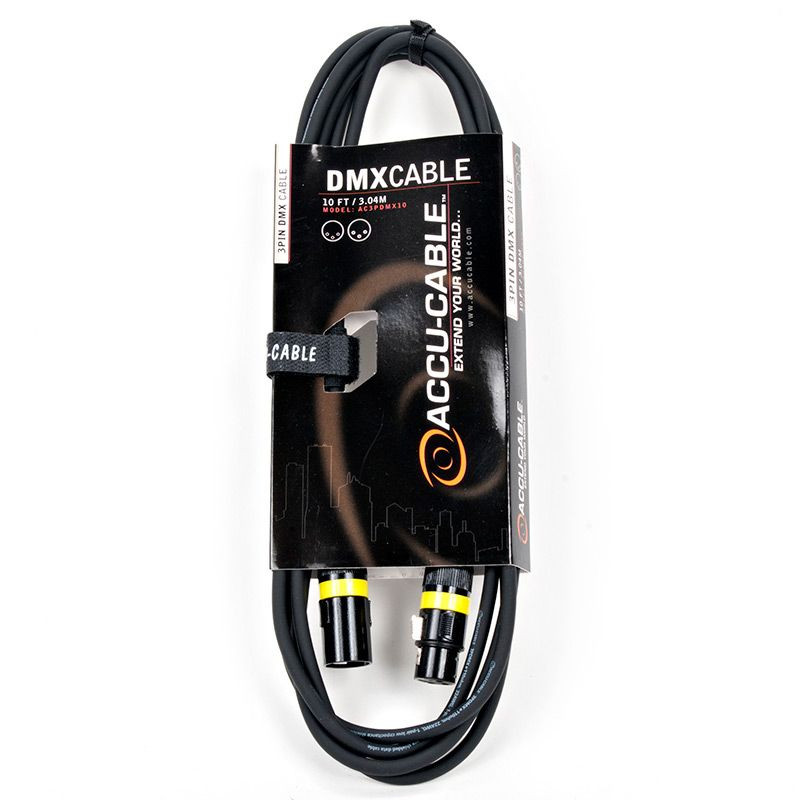

Accu-Cable DMX Lighting Cable, 3-Pin, 010 Ft

In Stock In Stock and Ready To Ship
Usually ships same day if ordered before 6PM ET / 3PM PT. (Excludes weekends and holidays, and all orders are subject to verification.)
Free Shipping FREE Ground Shipping On Orders Over $99
to the contiguous U.S. (details)
$11.95
As low as $25/mo.
X

To apply for financing, simply add items to your cart, checkout and choose one of these financing options as the payment method. Questions? Call us at 877-435-4327 or click here to chat!


  • Designed for the individual, not a business.
  • Subject to credit approval, this process takes only seconds after which you can complete your purchase.
  • 3, 6 or 12 months to pay over time, rate range from 10-30% APR. You will see your total at check out.
  • No hidden fess or confusing terminology.
  • May be used with purchases totaling up to $17,500.
  • More details at Affirm.com

  • Can be used for purchases up to $3,000, based on your available credit.
  • Subject to credit approval, this process takes only seconds after which you can complete your purchase.
  • Easily apply for a FuturePay account in seconds during checkout. You will never need a credit card – ever.
  • At the end of every billing period you can pay your balance in full or carry your balance a month longer for as little as $5/month.
  • Your information is kept secure by using the latest in fraud prevention and security tools.
  • More details at Futurepay.com

  • Designed for the individual, not a business.
  • PayPal Credit is a line of credit from Comenity Capital Bank that gives you the flexibility to pay for your purchase now, or pay over time.
  • It’s easy to apply and easy to use. Simply choose PayPal at checkout and select PayPal credit from within your PayPal account.
  • Must have or apply for a PayPal account.
  • More details at PayPal.com

VIP Price:

accucable ac3pdmx   010 ft
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

High Quality 3 Pin DMX Cables from 5ft to 100ft

Description:
22 AWG stranded (0.15 x 19 ) tinned copper conductors, polyethylene insulation, twisted pair, polyethylene inner jacket, Duofoil (100% coverage) and cotton plus a tinned copper braid shield (85% coverage), PVC jacket.

Physical Characteristics:
Conductor:
• Number of Pairs: 1
• Total Number of Conductors: 2
• AWG: 22
• Stranding: 0.15 x 19
• Conductor Diameter: .0354"
• Conduct or Material: TC-Tinned Copper

Insulation:
Insulation Material PE Polyethylene

Lay Length:
• Lay Length: 2.5"
• Direction: Left Hand Lay
• Twists: 4.8 per foot

Inner Jacket:
• Inner Jacket Material: PE- Polyethylene
• Inner Jacket Diameter: .055"
• Pair Color Code: Black/White

Outer Shield:
• Outer Shield Trade Name: Duofoil
• Outer Shield Type: Tape/Braid

Outer Shield Material:
• Layer Number:1, Material Trade Name: Dufoil, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
• Layer Number: 2, Material Trade Name: Dufoil, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85

Outer Jacket:
• Outer Jacket Material: PVC-Polyvinyl Chloride

Overall Nominal Diameter:
• Overall Nominal Diameter: .229"

Mechanical Characteristics:
• Operating Temperature Range: (-30 degrees C To + 75 degrees C)
• Bulk Cable Weight: 31 lbs/1000
• Minimum Bend Radius (Install): 3.2"
• Maximum Recommended Pull Tension: 72 lbs.

Electrical Characteristics:
• Nominal Characteristic Impedence: 110 Ohms
• Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/f t
• Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
• Nominal Velocity of Propagation: 66%
• Nominal Delay: 1.6 Nanoseconds per foot
• Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
• Nominal Outer Shield D C Resistance @ 20 degrees C: 3.4 Ohms/ 1000 ft
• Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft
• Maximum Recommended Current: 2.1 A mps per conductor @ 25 degree C

Additional Information

UPC 640282090605
SKU AC3PDMX 010 FT
Manufacturer Accu Cable
Product Condition New
Returnable Yes
