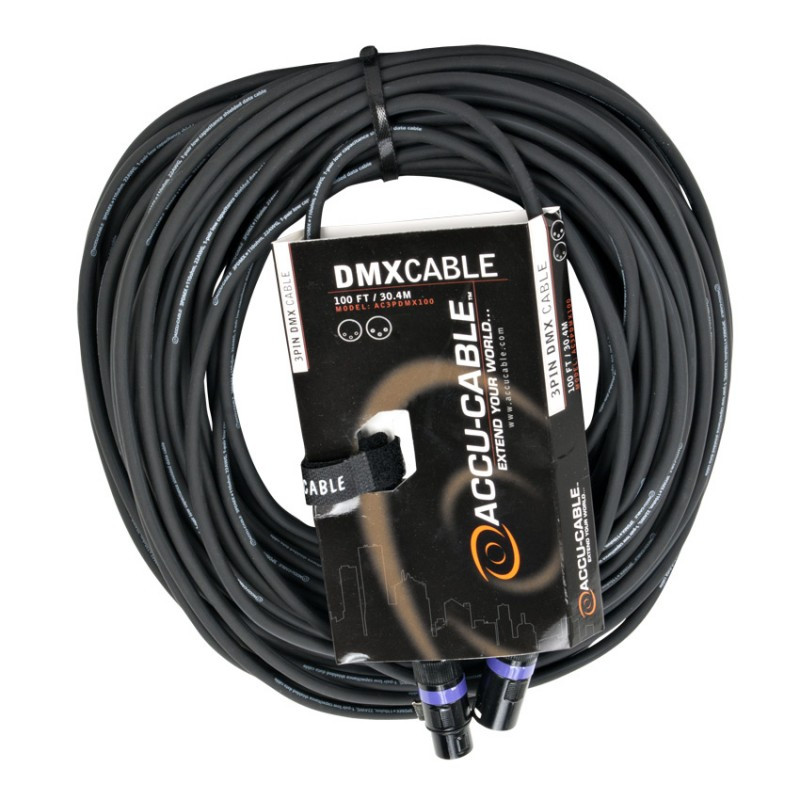

Accu-Cable DMX Lighting Cable, 3-Pin, 100 Ft

Not In Stock Not In Stock, But More Are On Order
This item is not in stock. In addition, Accu Cable has informed us that they too are backordered and do not expect more until after December 15, 2016. This date is not guaranteed, rather an estimate. Go ahead, place your order now to reserve one. Orders are shipped on a first-come, first-shipped basis.
Free Shipping FREE Ground Shipping On Orders Over $99
to the contiguous U.S. (details)
$58.95
As low as $25/month
    • BONUS! Buy Now and Earn 117 PDJ Bucks ($1.17)! MUST Be Logged In! Domestic U.S. customers only. Exact value may vary once logged in.

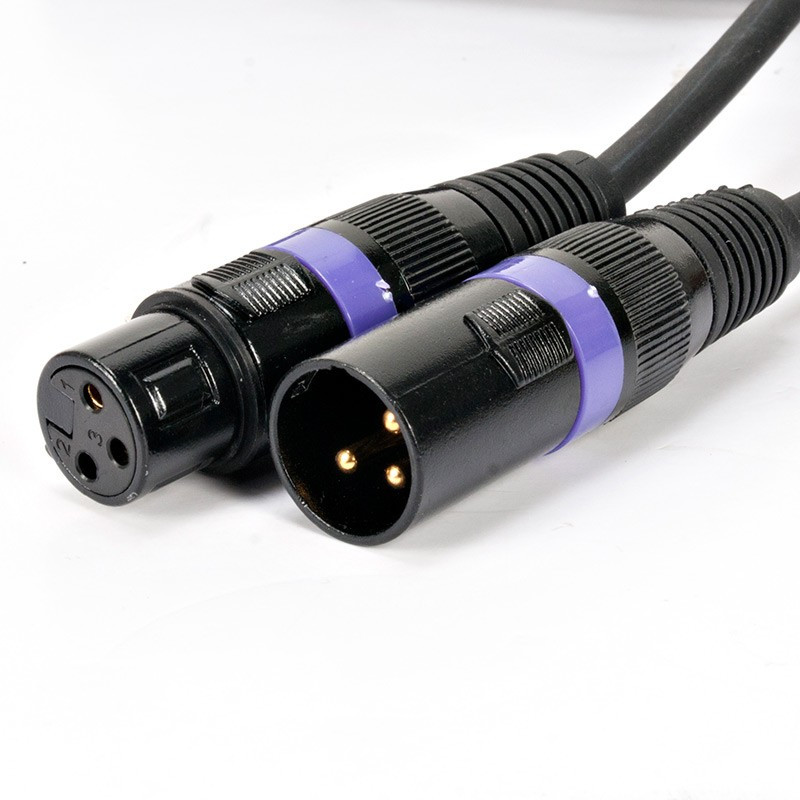

High Quality 3 Pin DMX Cables from 5ft to 100ft

Description:
22 AWG stranded (0.15 x 19 ) tinned copper conductors, polyethylene insulation, twisted pair, polyethylene inner jacket, Duofoil (100% coverage) and cotton plus a tinned copper braid shield (85% coverage), PVC jacket.

Physical Characteristics:
Conductor:
• Number of Pairs: 1
• Total Number of Conductors: 2
• AWG: 22
• Stranding: 0.15 x 19
• Conductor Diameter: .0354"
• Conduct or Material: TC-Tinned Copper

Insulation:
Insulation Material PE Polyethylene

Lay Length:
• Lay Length: 2.5"
• Direction: Left Hand Lay
• Twists: 4.8 per foot

Inner Jacket:
• Inner Jacket Material: PE- Polyethylene
• Inner Jacket Diameter: .055"
• Pair Color Code: Black/White

Outer Shield:
• Outer Shield Trade Name: Duofoil
• Outer Shield Type: Tape/Braid

Outer Shield Material:
• Layer Number:1, Material Trade Name: Dufoil, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
• Layer Number: 2, Material Trade Name: Dufoil, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85

Outer Jacket:
• Outer Jacket Material: PVC-Polyvinyl Chloride

Overall Nominal Diameter:
• Overall Nominal Diameter: .229"

Mechanical Characteristics:
• Operating Temperature Range: (-30 degrees C To + 75 degrees C)
• Bulk Cable Weight: 31 lbs/1000
• Minimum Bend Radius (Install): 3.2"
• Maximum Recommended Pull Tension: 72 lbs.

Electrical Characteristics:
• Nominal Characteristic Impedence: 110 Ohms
• Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/f t
• Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
• Nominal Velocity of Propagation: 66%
• Nominal Delay: 1.6 Nanoseconds per foot
• Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
• Nominal Outer Shield D C Resistance @ 20 degrees C: 3.4 Ohms/ 1000 ft
• Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft
• Maximum Recommended Current: 2.1 A mps per conductor @ 25 degree C

Additional Information

UPC819730011121
SKUAC3PDMX 100 FT
ManufacturerAccu Cable
Product ConditionNew
ReturnableYes
