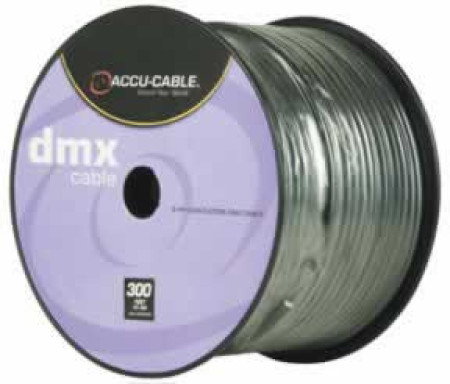

Accu-Cable 5-Pin DMX Cable Spool, 300ft.

Dropships Ships Directly From The Supplier
Accu Cable can usually ship this item directly to our U.S. customers after 1 to 3 business days processing time, depending upon their stock levels. Order now! We'll notify you promptly if we hear of any delay.
Free Shipping FREE Ground Shipping to the contiguous U.S. (details)
Affirm Financing
Future Pay
    • Buy Now and Earn 539 PDJ Bucks ($5.39)! Applies only to registered, domestic U.S. customers. Exact value may vary once logged in.
5 Pin XLR Cable Spools:* AC5CDMX300 (300 Foot Spool 5 Pin DMX Cable)

Description: 22 AWG stranded (0.15 x 19 ) tinned copper conductors, polyethylene insulation, twisted pair, polyethylene inner jacket, Duofoil (100% coverage) and cotton plus a tinned copper braid shield (85% coverage), PVC jacket. Physical Characteristics:Conductor: * Number of Pairs: 2 * Total Number of Conductors: 4 * AWG: 22 * Stranding: 0.15 x 19 * Conductor Diameter: .0354" * Conduct or Material: TC-Tinned Copper Insulation: Insulation Material PE Polyethylene Lay Length:* Lay Length: 1.1"* Direction: Left Hand Lay* Twists: 10.9 per foot Inner Jacket:* Inner Jacket Material: PE- Polyethylene* Inner Jacket Diameter: .055"* Pair Color Code: Green/Black/Red/WhiteOuter Shield:* Outer Shield Trade Name: Duofoil* Outer Shield Type: Tape/BraidOuter Shield Material:* Layer Number:1, Material Trade Name: Dufoil, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100* Layer Number: 2, Material Trade Name: Dufoil, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85Outer Jacket:* Outer Jacket Material: PVC-Polyvinyl ChlorideOverall Nominal Diameter:* Overall Nominal Diameter: .295"Mechanical Characteristics:* Operating Temperature Range: (-30 degrees C To + 75 degrees C)* Bulk Cable Weight: 50 lbs/1000* Minimum Bend Radius (Install): 3.5"* Maximum Recommended Pull Tension: 22 lbs.Electrical Characteristics: * Nominal Characteristic Impedence: 110 Ohms * Nominal Capacitance Conductor to Conductor @ 1KHz: 12.5 pF/f t * Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft * Nominal Velocity of Propagation: 76% * Nominal Delay: 1.6 Nanoseconds per foot * Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft * Individual Pair Nominal Shield DC Resistance @ 20 degrees C: 15 Ohms/1000 ft* Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH) dB/100 ft.* Maximum Recommended Current: 2.1 Amps per conductor @ 25 degrees C

Additional Information

ManufacturerAccu Cable
Product ConditionNew
