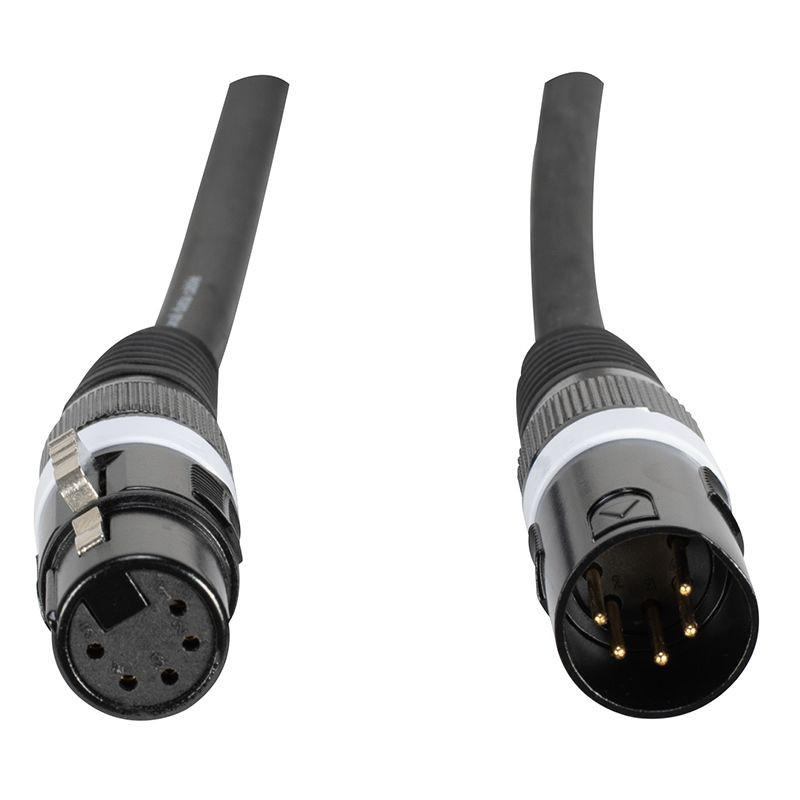

Accu-Cable DMX Lighting Cable, 5-Pin, 050 Ft

accucable ac5pdmx   050 ft
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

Dropships Currently Out of Stock at Planet DJ
In Stock May Be In Stock on Amazon
In Stock Free Shipping On Most Orders Over $35
Buy on Amazon
High Quality 5 Pin DMX Cables from 5ft to 100ft

5 Pin Male to 3 Pin Female XLR Cable:
• AC5PM3PFM (5 Pin Male XLR to 3 Pin Female XLR Turnaround)

Description:
22 AWG stranded (0.15 x 19 ) tinned copper conductors, polyethylene insulation, twisted pair, polyethylene inner jacket, Duofoil (100% coverage) and cotton plus a tinned copper braid shield (85% coverage), PVC jacket.

Physical Characteristics:
Conductor:
• Number of Pairs: 2
• Total Number of Conductors: 4
• AWG: 22
• Stranding: 0.15 x 19
• Conductor Diameter: .0354"
• Conduct or Material: TC-Tinned Copper

Insulation:
Insulation Material PE Polyethylene

Lay Length:
• Lay Length: 1.1"
• Direction: Left Hand Lay
• Twists: 10.9 per foot

Inner Jacket:
• Inner Jacket Material: PE- Polyethylene
• Inner Jacket Diameter: .055"
• Pair Color Code: Green/Black/Red/White

Outer Shield:
• Outer Shield Trade Name: Duofoil
• Outer Shield Type: Tape/Braid

Outer Shield Material:
• Layer Number:1, Material Trade Name: Dufoil, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
• Layer Number: 2, Material Trade Name: Dufoil, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85

Outer Jacket:
• Outer Jacket Material: PVC-Polyvinyl Chloride

Overall Nominal Diameter:
• Overall Nominal Diameter: .295"

Mechanical Characteristics:
• Operating Temperature Range: (-30 degrees C To + 75 degrees C)
• Bulk Cable Weight: 50 lbs/1000
• Minimum Bend Radius (Install): 3.5"
• Maximum Recommended Pull Tension: 22 lbs.

Electrical Characteristics:
• Nominal Characteristic Impedence: 110 Ohms
• Nominal Capacitance Conductor to Conductor @ 1KHz: 12.5 pF/f t
• Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
• Nominal Velocity of Propagation: 76%
• Nominal Delay: 1.6 Nanoseconds per foot
• Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
• Individual Pair Nominal Shield DC Resistance @ 20 degrees C: 15 Ohms/1000 ft
• Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MHz) dB/100 ft.
• Maximum Recommended Current: 2.1 Amps per conductor @ 25 degrees C

Additional Information

UPCN/A
SKUAC5PDMX 050 FT
ManufacturerAccu Cable
Price$49.95
Product ConditionNew
