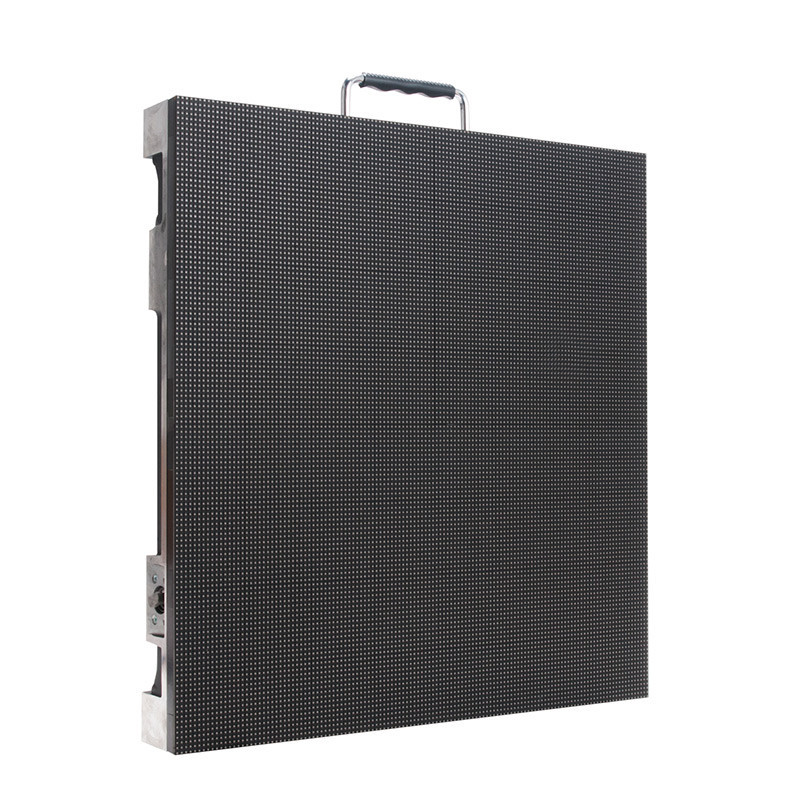

ADJ AV3X 3.9mm LED Video Wall Panel

ADJ offers full packages with video processors, software, cabling, rigging bars and flight cases so that you have everything you need to get up and running.

Up to 8 AV3X video panels fit inside the AV3FC flight case.

SPECIFICATIONS:
• Pixel Pitch: 3.91mm (0.25")
• LED Configuration: 3-in-1 SMD2121 LED
• Pixel Density: 128x128; 65536 per square meter
• Size :19.75" x 19.75" x 4" / 500 x 500 x 100mm
• Module Quantity: 2
• Weight: 20 lbs. / 9kg.

MECHANICAL RATINGS:
• Surface Flatness: Gaps<0.5mm

OPTICAL RATINGS:
• Brightness: 1000 NITS
• View Angle: Horizontal 120/Vertical 120 @ 13 ft. (4m)
• Gray Scale / Display Color: 14-bit
• Brightness Adjustment: 0100% 100 Levels
• Processing: 14-bit

POWER SUPPLY:
• Operation Power: 100240V 50-60Hz
• Max. Power Consumption: 170W/per panel
• Ave. Power Consumption: 70W/per panel

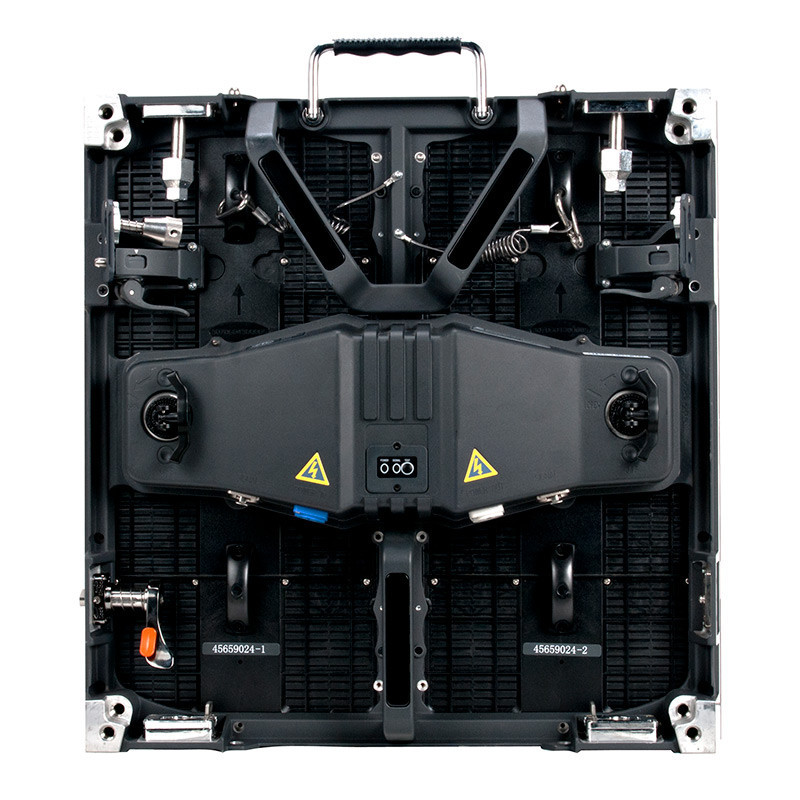

• Connections Power/Data: Power-PowerCon In/Out; Data EtherCon In/Out

CONTROL SYSTEM:
• Control Mode: Nova Star Synchronous System with Control via DVI
• Frame Update Frequency: 50-60Hz
• Scan Mode: 1/16
• Refresh Rate: 1920Hz
• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
• Control Distance: Ethernet Cable <100m or Fiber Optic>120m
• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
• Brightness Correction: Pixel, Module, Cabinet
• With Wired Digital Communication Network

ENVIRONMENTAL:
• Operating Temp / Humidity: Fahrenheit: -4 + 104 / Celsius: -20 + 40/ 10-90% (No Condensation)
• Operating Life / MTBF: 50,000 Hours / 5,000 Hours
• Protection Level: IP20 (Front and Back)
• Out of Control Rate: <0.02%
• Listings: ETL, CE, FCC Class A

OPTIONAL ACCESSORIES:
AV3FC (AV3095): Flight Case - fits 8 AV3X Video Walls
AV3RB1 (AV3070): Rigging Bar - Connect up to 15 AV3X Video Panels
AV3RSB (AV3111): Rear Support Bracket
Novastar VX4S: Video Processor
Novastar MCTRL-300: Video Processor
Media Master Express 4: Video Software
GrandVJ 2.0: Video Software

CABLES:
Cabinet to Cabinet Data Link Cables
MCTRL-300 Processor to Cabinet
VX4S Processor to Cabinet
NOVA PRO HD Processor to Cabinet
Locking Power Link Cables
Locking Main Power Cables

ETL Approved
