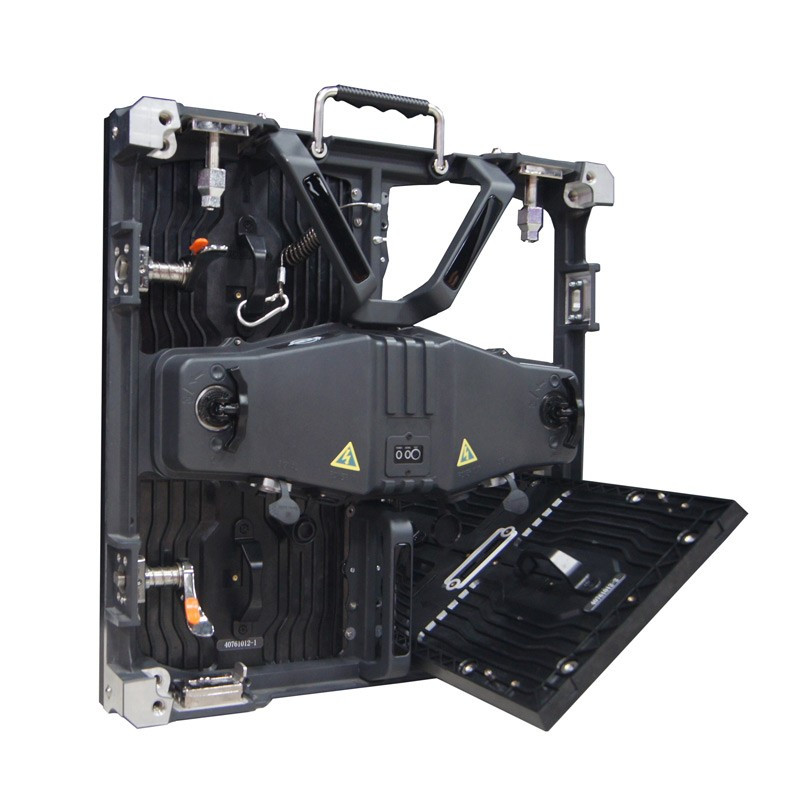

There are 2 LED modules per panel. This allows for easy serviceability. The AV4IP includes True 1 powerCon In/Out and etherCON In/Out water proof connections. This panel also features a Novastar receiving card.
The AV4IP is a great video solution for indoor or outdoor use. ADJ offers full packages with video processors, software, cabling, rigging bars and flight cases so that you have everything you need to get up and running.
• 4.81mm pixel pitch high resolution video panel
• IP65 Front, IP54 Back (Temporary outdoor use)
• SMD1921 3-IN-1 RGB LEDs
• NITS: 4,000
• Pixel Count: 104x104
• Quick release power supply / receiving card module
• True1 powerCON In & Out
• EtherCON In & Out
• Novastar receiving card
• Dimensions: 19.7" x 19.7" (500x500mm) panel size
• Flight Case: AV3FC (AV3095): Flight Case - fits 8 AV4IP Panels
• Rigging Bar: AV3RB1
SPECIFICATIONS:• Pixel Pitch: 4.81mm (0.19")
• LED Configuration: 3-in-1 SMD1921 LED
• Pixel Density: 104x104; 43264 (dot/m2)
• Panel Size :19.75" x 19.75" x 4" / 500 x 500 x 100mm
• Module Quantity: 2
• Module Size: 250 x 500mm
• Module Resolution: 52 x 104 pixels
• Panel Weight: 20 lbs. / 9kg.
MECHANICAL RATINGS:• Surface Flatness: Gaps<0.5mm
OPTICAL RATINGS:• Brightness: 4000 NITS
• View Angle: Horizontal 140/Vertical 140
• Gray Scaler: 14-bit
• Brightness Adjustment: 0100% 100 Levels
• Processing: 14-bit
POWER SUPPLY:• Input Voltage: 100240V 50-60Hz
• Max. Power Consumption: 180W/per panel
• Ave. Power Consumption: 60W/per panel
• Connections Power/Data: Power = True1 powerCON In/Out; Data = etherCON In/Out
CONTROL SYSTEM:• Control Mode: Nova Star Synchronous System with Control via DVI
• Frame Update Frequency: 50-60Hz
• Scan Mode: 1/16
• Refresh Rate: 1920Hz
• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
• Control Distance: Ethernet Cable <100m or Fiber Optic>120m
• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
• Brightness Correction: Pixel, Module, Cabinet
ENVIRONMENTAL:• Operating Temp / : Fahrenheit: -14 + 122 / Celsius: -10 + 50
• Humidity: 10-90% (No Condensation)
• Operating Life / MTBF: @ 50,000 Hours
• Protection Level: IP65 Front, IP54 Back (Temporary outdoor use)
• Out of Control Rate: <0.02%
• Listings: cETL, CE, FCC Class A
OPTIONAL ACCESSORIES:AV3FC (AV3095): Flight Case - fits 8 AV4IP
AV3RB1 (AV3070): Rigging Bar - Holds up to 15 AV4IP vertically
AV3FWA (AV3111): Rear Support Bracket
Novastar VX4S: Video Processor
Novastar MCTRL-300: Video Processor
Novastar NOVA PRO HD: Video Processor
Media Master Express 4: Video Software
GrandVJ 2.0: Video Software
MAIN POWER CABLES, IP65 (True1 powerCON to Edison):10ft. / 3.04M (TRU200)
15ft. / 4.57M (TRU215)
25ft. / 7.62M (TRU230)
50ft. / 15.24M (TRU254)
100ft. / 30.48M (TRU271)
PANEL TO PANEL POWER LINK CABLES, IP65 (True1 powerCON to True1 powerCON):1.64ft. / .50M (TRU064)
3.28ft. / 1M (TRU113)
4.92ft. / 1.5M (TRU126)
9.84ft. / 3M (TRU139)
13.12ft. / 4M (TRU152)
22.96ft. / 7M (TRU165)
49.21ft. / 15M (TRU178)
98.42ft. / 30M (TRU191)
MAIN DATA CABLES, Bare RJ45 to Ethercon:10ft. / 3.04M (CAT271)
25ft. / 7.62M (CAT729)
50ft. / 15.24M (CAT743)
100ft. / 30.48M (CAT757)
PANEL TO PANEL DATA LINK CABLES, (Ethercon to Ethercon):3ft. / .91M (CAT303)
5ft. / 1.52M (CAT305)
10ft. / 3.04M (CAT310)
15ft. / 4.87M (CAT315)
25ft. / 7.62M (CAT325)
50ft. / 15.24M (CAT350)
