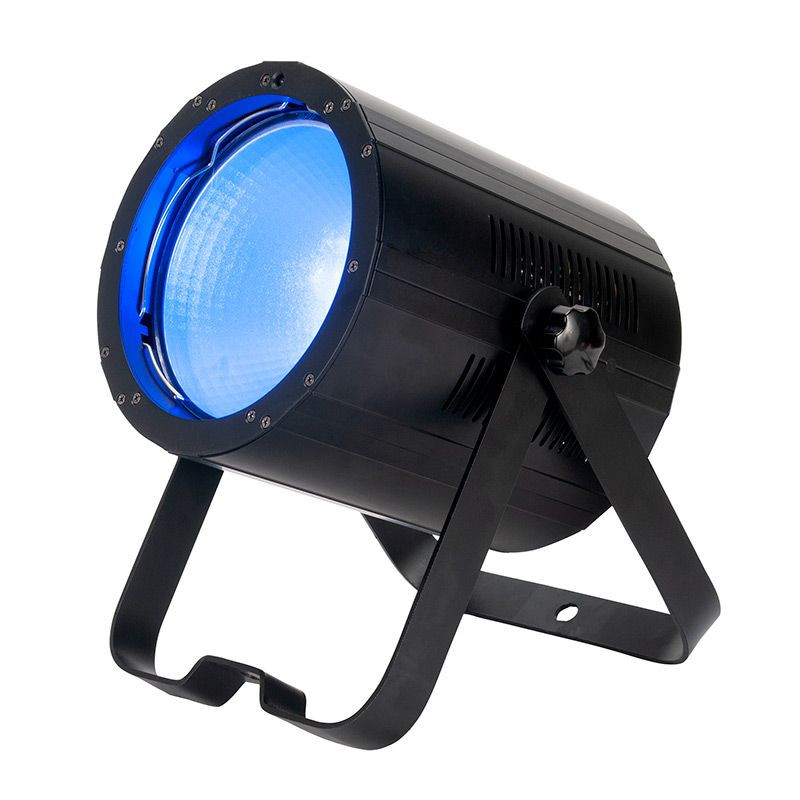

ADJ COB Cannon Wash ST

Designed for mobile or permanent wash lighting of stages, clubs, dance floors and churches. The COB LED engine on the COB Cannon Wash ST is a QUAD RGBA 4-In-1). It also doubles as an uplight with its scissor yoke that act as legs to set the fixture upright to wash walls and ceilings.

The COB Cannon Wash ST comes in a black casing and has massive 80-degree beam angle. Easily replaceable 40-degree and 50-degree lens are included so that the beam angle may be changed.

It has 7 DMX Channel modes for programming flexibility, built-in color macros and 5 selectable Dim Curves. The fixture has many pro features such as: 0-100% electronic dimming, strobe/pulse effect, Flicker Free operation, 3-pin & 5-pin DMX and locking power connections to daisy-chain fixtures, and a 4-button DMX display. COB Cannon Wash ST may run in its stand-alone mode from built-in programs, sound actively or from a DMX controller.



• Flicker Free operation (No flickering on camera)
• Produces powerful, smooth RGBA color mixing with
rich palettes of color
• Use as Wash/par or Pixel Mapped for a stunning
visual effect
• Scissor yoke allows fixture to be mounted on truss or
set on the ground
• Optional Barn Doors (BAR001) sold separately
• Run all night No duty cycle
• 7 DMX Channel modes (3,4,5,6,7,9,10 Ch.)
• 64 built-in color macros

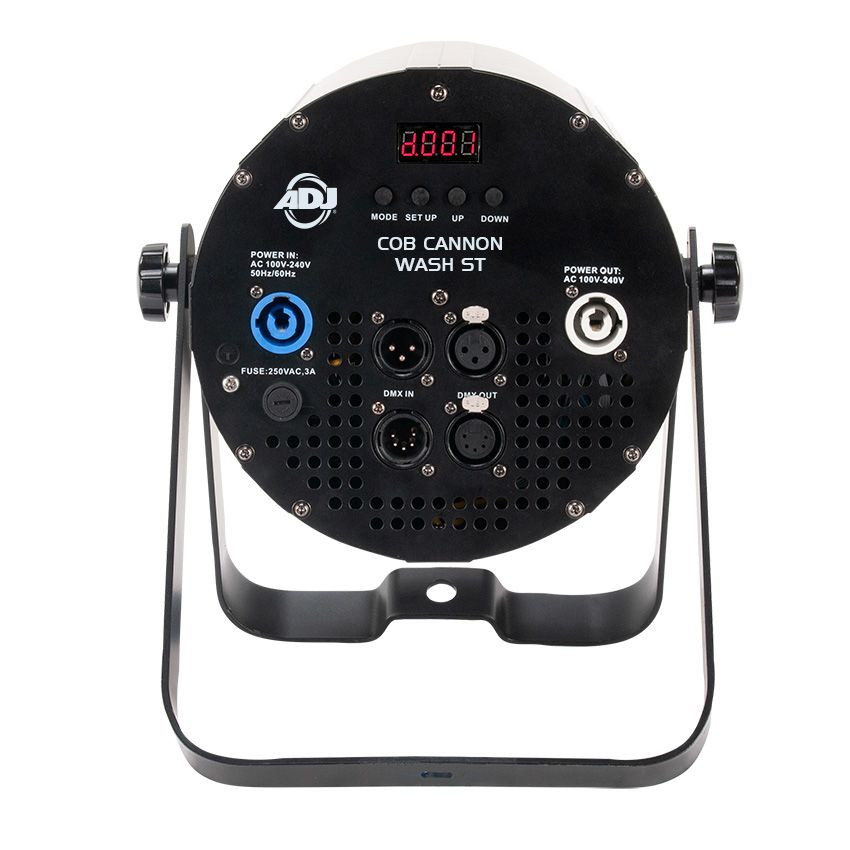

• 4-button digital DMX display on rear panel
• Compatible with the ADJ UC IR remote control (sold separately)
• LED pulse and strobe effect
• Electronic Dimming: 0 - 100%
• 6 selectable Dim Curves (Standard, Stage, TV,
Architectural & Theatre)
• Refresh Rate:1KHz

Dimensions with Bracket: 13" x 10" x 7.5"
Dimensions without Bracket: 8.75" x 7.5" x 7.5"
Weight: 9 lbs
