The ADJ Lighting Data Distro 6 is a 6-way DMX and RDM data splitter. With one (1) 5-pin input, one (1) 5-pin thru and six (6) 5-pin outputs, the Data Distro 6 makes running DMX cables easier and more efficient.

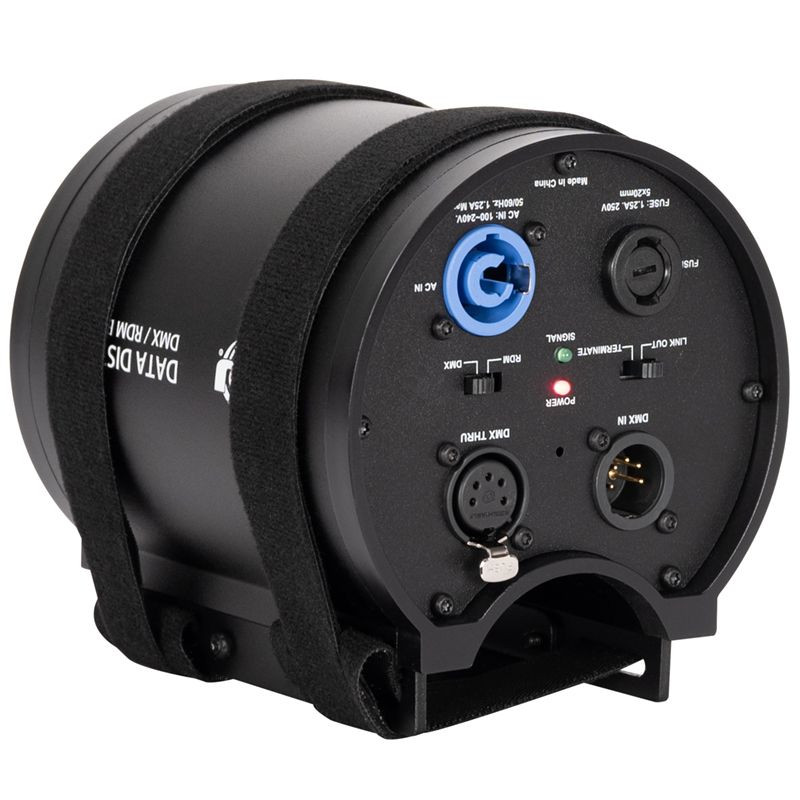

The ADJ Lighting Data Distro 6 is a versatile and compact solution for streamlined DMX512 and RDM signal distribution. Designed for seamless integration into your lighting setup, this data splitter ensures reliable and convenient hanging with 1 Truss Mount featuring two Velcro Straps or M10 Screw Clamp (clamp not included). Its robust physical configuration includes 1x indoor 5-pin XLR input, 1x indoor 5-pin XLR thru, and 6x indoor 5-pin XLR outputs. Equipped with a Link Out Termination Switch and a DMX/RDM Protocol Switch, it also features an indoor locking power socket for added security.
SpecificationsProtocols:
• DMX512
• RDM
Physical:

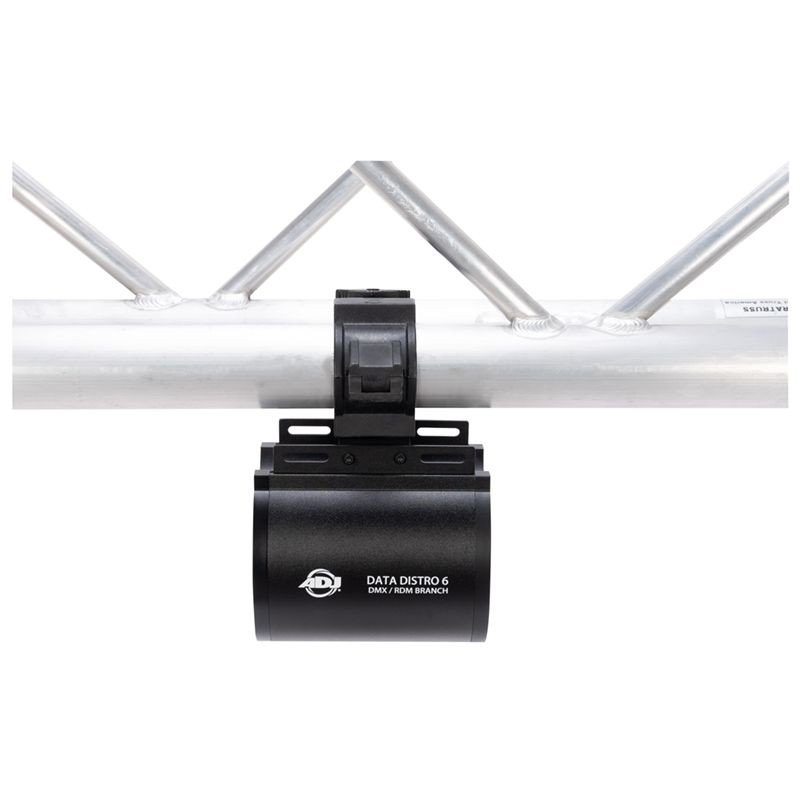

• 1 Truss Mount with Velcro Straps or M10 Screw Clamp (Clamp Not Included)
• 1x Indoor 5pin XLR Input
• 1x Indoor 5pin XLR Thru
• 6x Indoor 5pin XLR Outputs
• Link Out Termination Switch
• DMX / RDM Protocol Switch
• Indoor locking power socket
Dimensions & Weight:
• Length: 4.73" (120mm)
• Width: 5.43" (137.75mm)
• Height: 5.10" (129.55mm)
• Weight: 1.83lbs. (0.83kg)
Power:
• AC Input: 100-230V 50/60Hz
• Power Consumption: 2.7W @ 120V and 2.9W @ 230V
• Power Input Protection: Fuse, T1.25A/250 (5.2x20mm)
Thermal:
• Ambient Operational Temperature: -4F to 113F (-20C to 45C)
• Humidity: <75%
• Storage Temperature: 77F (25C)
Certifications & IP Rating:
• CE
• cETLus (Pending)
• FCC
• IP20
