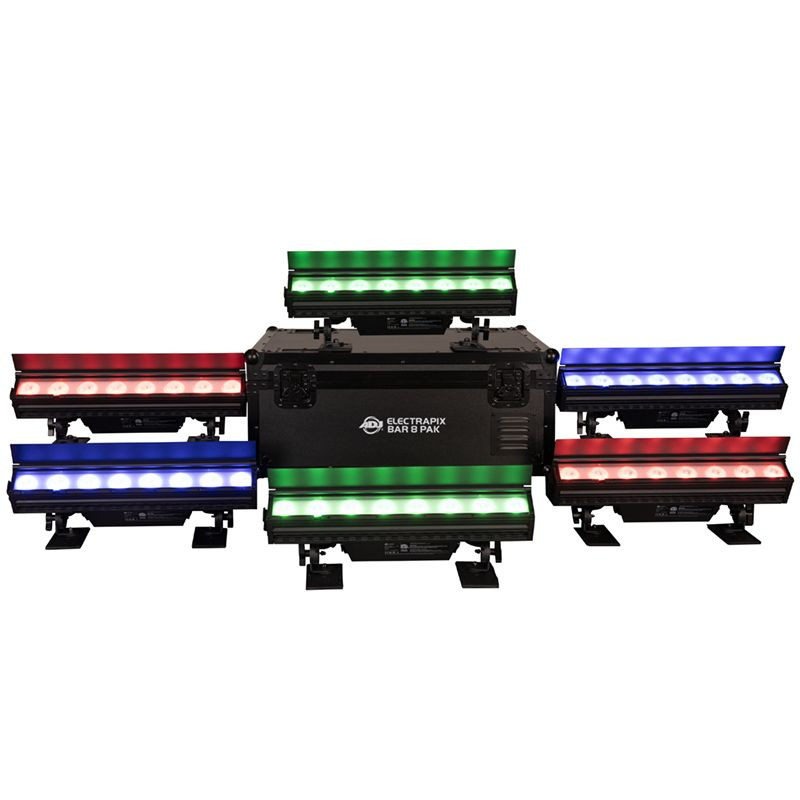

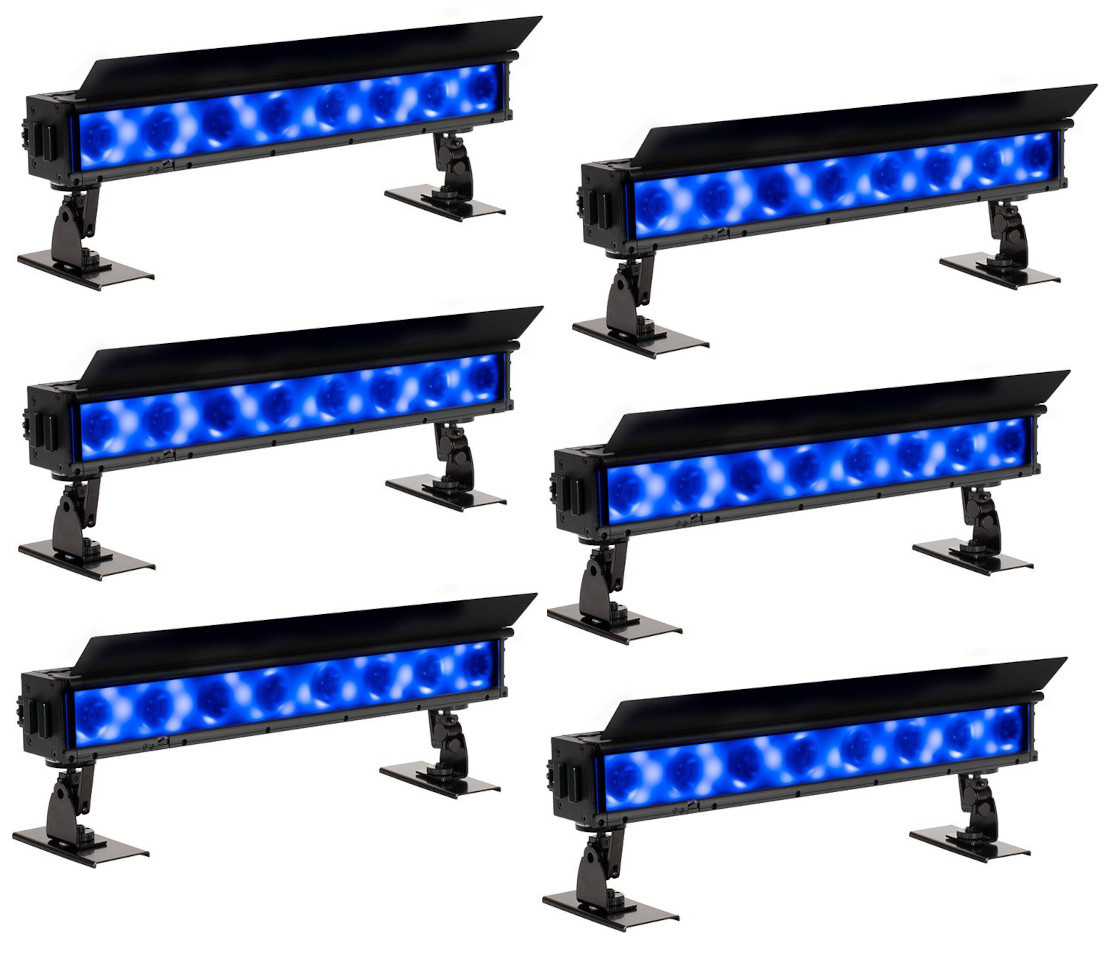

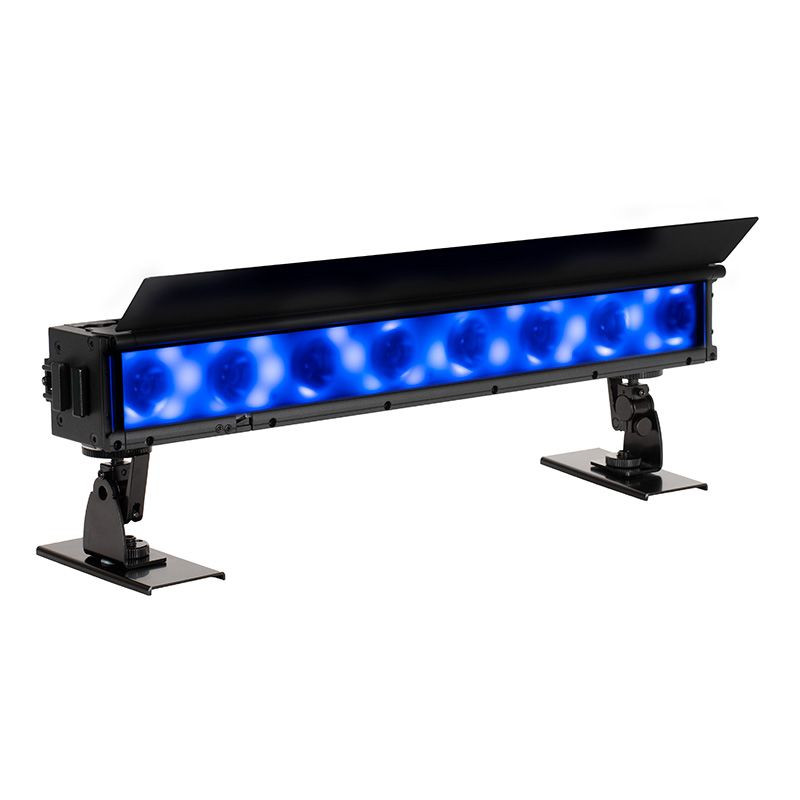

ElectraPix Bar 8 Features• 8 Pixel, Hex Color LED (RGBAL+UV) LED Bar
• Battery or Wall Powered
• Up to 20 Hour Battery Operation
• Battery Operation (Menu Option)
• Individual Pixel Control
• Built-In Foreground LED Programs
• Built-In Background LED Programs
• Variable White Color Temperature Control (2,700K 9,900K)
• English & Spanish User Menu
• Built-In Alarm
• Color Calibrated LED's
• User Selectable LED Refresh Rates (900Hz 25K)
• 6 User Selectable Dim Modes
• 4 User Selectable Dim Curves
• Electronic Strobe (0.3Hz 11Hz)
• Electronic Dimming
ElectraPix Bar 8 Specifications:Source:
• (8) 20W Hex Color RGBAL+UV Foreground LED's
• (32) 0.2W RGB Background LED's
• 50,000 Hour Average Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Optical:
• 2,300K 9,900K White Color Temperature Range
• 17 Beam Angle
• 45mm Lens Diameter x8
Physical:
• IP65 Housing
• OLED Digital display
• L Track system for locking accessories / rigging
• Glare Shield
• Diffusion Filter slot
• Angle adjustable feet
• Horizontal slide lock to attach additional ElectraPix Bar 8 or ElectraPix Bar 16
Control:
• DMX512
• Aria X2 Wireless DMX
• Bluetooth
• RDM and RDM Net Compatible
• IR (Includes UCIR24 wireless remote)
• (4) DMX Channel Modes (5, 6, 9, 13, 21, 24, 48, 52 & 66 Channel modes)
• On-board Manual Control Mode
• Primary / Secondary Mode

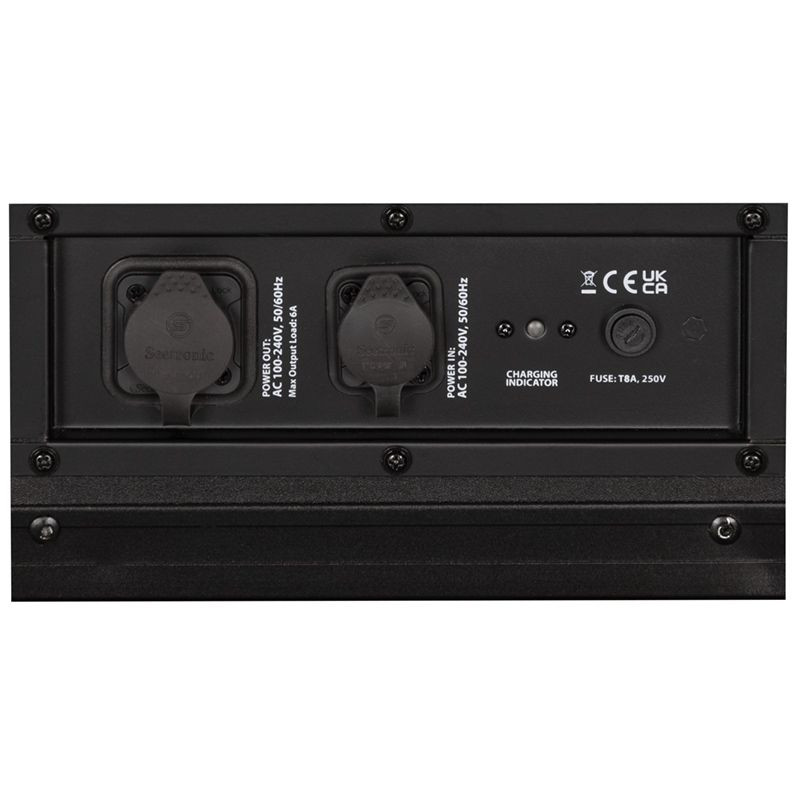

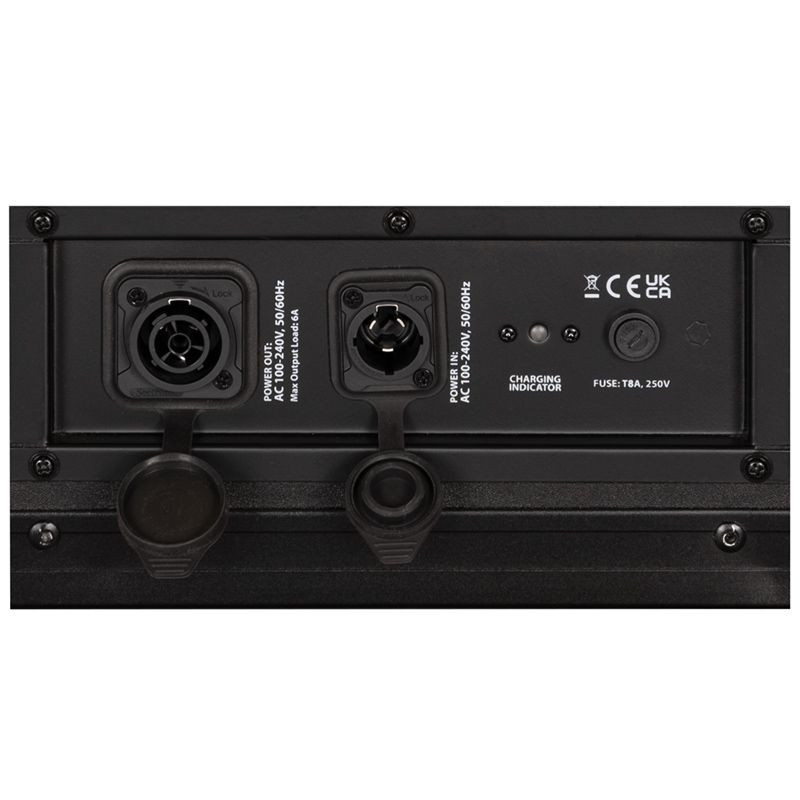

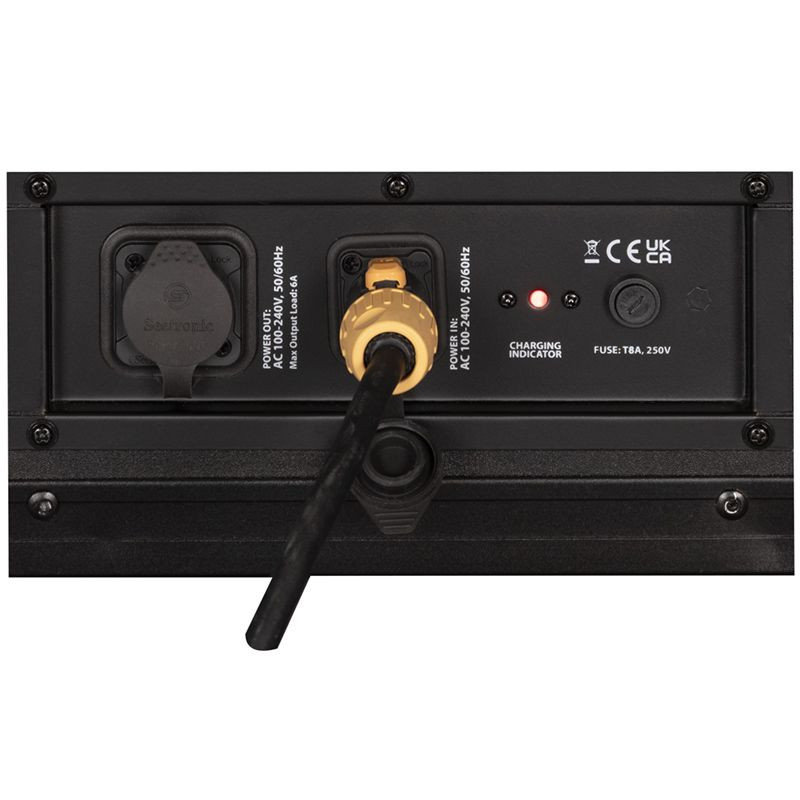

Connections:
• 5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
• Outdoor Locking Power Sockets

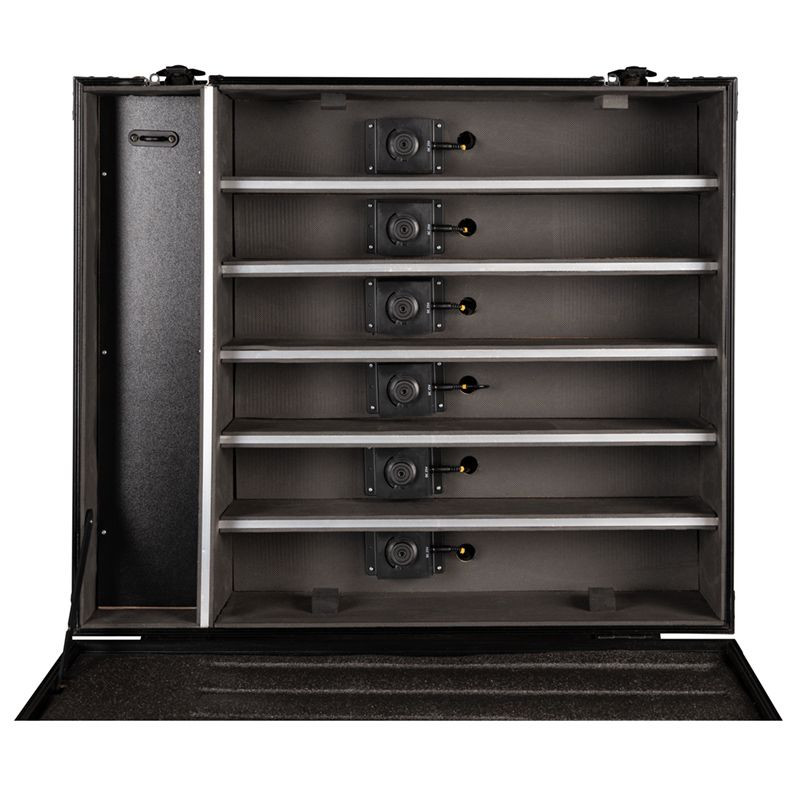

• Battery Charging Socket
Power:
• AC100-240V/50Hz-60Hz Input
• 60W Power Consumption
• Link 15 pieces @120VAC or 28 pieces @ 230VAC
Battery:
• Rechargeable Lithium ion
• Battery Capacity: 7,000mAh
• Battery Voltage: 22.2V
• Charge Time: 6 Hours (To Full)
• Up to 20 Hour Battery Operation
• Battery Cycles: 500
Thermal:
• Ambient Operational Temperature: -4F to 113F (-20C to 45C)
• Storage Temperature: -22F to 113F (-30C to 45C)
Certifications & IP Rating:
• CE
• cETLus (Pending)
• FCC
• IP65
Included Accessories:
• (1) Outdoor Locking Power Cable
• (1) UCIR24 Remote
• (1) 20 Diffusion Filter
Optional Accessories:
• Accu Stand VFB (Floor Base)
• LTrack A2 (LTrack Adapter Only)
• LTrack CA2 (LTrack Adapter with Narrow Clamp)
