The ADJ Lighting ElectraPix Par 7 LED Par is a cutting-edge wireless DMX lighting solution. Packed with advanced features, this fixture boasts seven 20-Watt Hex Color LED (RGBAL+UV), providing unparalleled control and creativity. Powered by either batteries or wall outlets, it offers 5 hours of standard battery operation or an extended 10-hour saver mode.
With individual pixel control, built-in foreground and background LED programs, and a variable white color temperature range, the ElectraPix Par 7 ensures dynamic lighting possibilities. Its color-calibrated LEDs, user-selectable dim modes, and electronic strobe/dimming enhance versatility.
Designed for adaptability, the IP65-Rated housing, OLED digital display, L Track system, and adjustable feet make installation and customization a breeze. The fixture's control options include DMX512, Aria X2 Wireless DMX, Bluetooth, RDM compatibility, and an included UCIR24 wireless remote.
The ElectraPix Par 7 guarantees reliability with certifications such as CE, FCC, and pending cETLus, while its IP65-Rating ensures durability in various environments. Included accessories like the outdoor locking power cable and UCIR24 remote, along with optional add-ons, make this fixture a comprehensive lighting solution for professionals. Elevate your lighting design with the ElectraPix Par 7, where innovation meets performance.
ElectraPix Par 7 Features• 7 Pixel, Hex Color LED (RGBAL+UV) LED Par
• Battery or Wall Powered
• 5 Hour Standard Battery Operation and 10 Hour Saver Battery Operation (Menu Option)
• Individual Pixel Control
• Built-In Foreground LED Programs
• Built-In Background LED Programs
• Variable White Color Temperature Control (2,700K 9,900K)
• English & Spanish User Menu
• Built-In Alarm
• Color Calibrated LED's
• User Selectable LED Refresh Rates (900Hz 25K)
• 6 User Selectable Dim Modes
• 4 User Selectable Dim Curves
• Electronic Strobe (0.3Hz 11Hz)
• Electronic Dimming
ElectraPix Par 7 SpecificationsSource:
• (7) 20W Hex Color RGBAL+UV Foreground LED's
• (29) 0.2W RGB Background LED's
• 50,000 Hour Average Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Optical:
• 2,300K 9,900K White Color Temperature Range
• 17 Beam Angle
• 45mm Lens Diameter x8
Physical:
• IP65 Housing
• OLED Digital display
• L Track system for locking accessories / rigging
• Gel Frame Holder
• Adjustable, hanging / kick stand bracket
Control:
• DMX512
• Aria X2 Wireless DMX
• Bluetooth
• RDM and RDM Net Compatible
• IR (Includes UCIR24 wireless remote)
• (4) DMX Channel Modes (5, 6, 9, 13, 21, 24, 42, 45 & 54 Channel modes)
• On-board Manual Control Mode
• Primary / Secondary Mode
Connections:
• 5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
• Outdoor Locking Power Sockets
• Battery Charging Socket
Dimensions & Weight:
• Length: 11.11" (282.1mm) Width: 9.77" (590.3mm) Height: 7.46" (189.5mm)
• Weight: 15.4 lbs. (7 kg)
Power:
• AC100-240V/50Hz-60Hz Input
• 60W Power Consumption
• Link 15 pieces @120VAC or 28 pieces @ 230VAC
Battery:
• Rechargeable Lithium ion
• Battery Capacity: 7,000mAh
• Battery Voltage: 22.2V
• Charge Time: 6 Hours (To Full)
• 5 Hour Standard Operation at Full Output and 10 Hour Saver Mode Operation at Full Output Selectable in the menu
• Battery Cycles: 500
Thermal:
• Ambient Operational Temperature: -4F to 113F (-20C to 45C)
• Storage Temperature: -22F to 113F (-30C to 45C)
Certifications & IP Rating:
• CE
• cETLus (Pending)
• FCC
• IP65
Included Accessories:
• (1) Outdoor Locking Power Cable
• (1) UCIR24 Remote
• (1) Gel Frame
• (1) 20 Diffusion Filter
Optional Accessories:
• LTrack A2 (LTrack Adapter Only)
• LTrack CA2 (LTrack Adapter with Narrow Clamp)

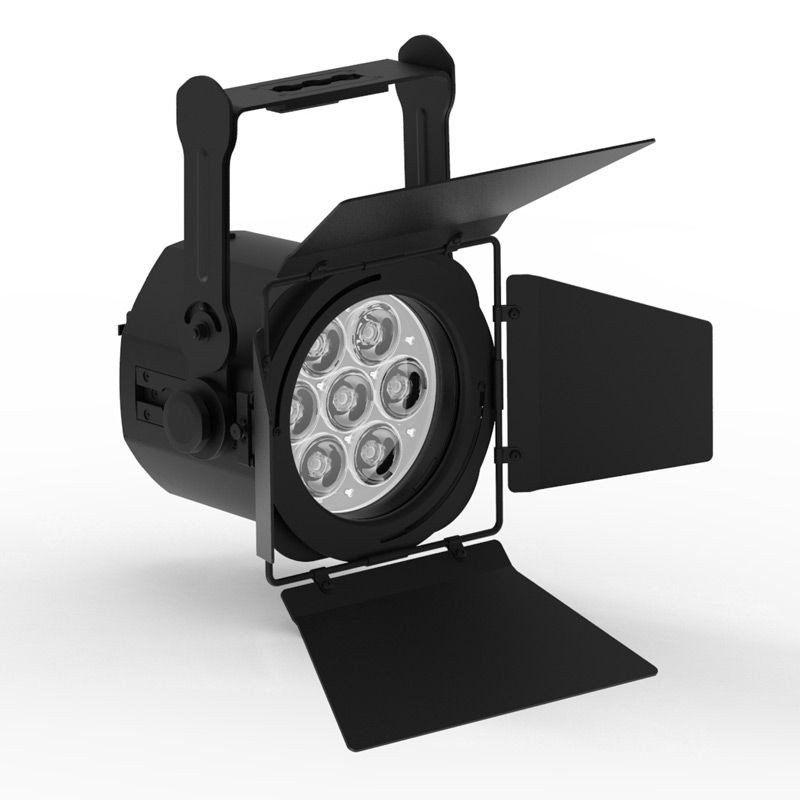

• ELP12IPBDA (Barn Door and Gel Frame Assembly, Sku: ELP404)
