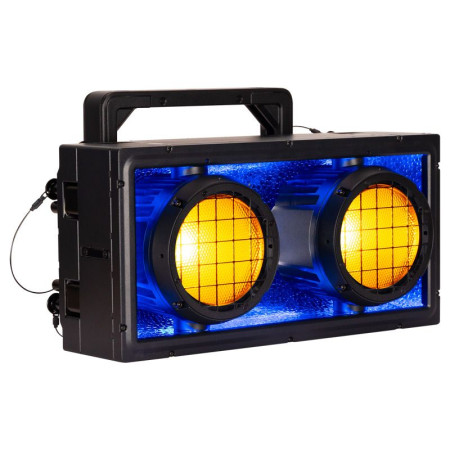

Encore DBX is a versatile and powerful effect fixture designed for creating striking visuals at any event. Featuring a 5-color LED dual-lens blinder/strobe and vibrant RGB background LEDs, it delivers dynamic lighting effects and intense audience interaction. Powered by two 150W RGBAW LEDs and backed by a high-output RGB reflector, the Encore DBX offers a total lumen output of 11,400+, producing rich colors and sharp contrast.
With features like individually controllable cells, built-in programs, and variable white color temperature (2700K6500K), the Encore DBX provides exceptional creative flexibility. It includes selectable dimming modes, electronic strobe, and refresh rates (900Hz25K) for smooth, flicker-free operation. The fixture is built to last with a rugged IP65-rated housing, making it suitable for both indoor and outdoor use. Control options include DMX512, Bluetooth, and the Aria X2 wireless management system for over the air firmware/software updates, offering seamless integration into any lighting setup. The Encore DBX is the perfect solution for immersive lighting effects on stage productions, theatres and corporate events.
Features:
• 2 Cell, Five Color (RGBAW) LED Blinder
• Background RGB LEDs
• Individually Controllable Cells
• Built-In Cell Programs
• Built-In Background LED Programs
• Variable White Color Temperature Control (2,700K 6,500K)
• User Selectable LED Refresh Rates (900Hz 25K)
• 6 User Selectable Dim Modes
• 4 User Selectable Dim Curves
• Electronic Strobe (1 20Hz)
• Electronic Dimming
• Aria X2 Wireless Management System
Source:
• 2x 150W RGBAW LED's
• RGB Background LED's
• 50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
Photometrics:
• Total Lumen Output: 11,465
• CRI: 89
Optical:
• Beam Angle: TBA
• Field Angle: TBA
Effects:
• Variable Strobe Rate: 1- 20Hz
• Variable 16-bit Dimming Modes and Curves
• RGB Background Reflector Effect
Color:
• RGBAW Color Array
• RGB Background
• Variable CCT 2700K - 6500K + five presets
Physical:
• IP65 Housing
• OLED Digital display
• Adjustable Mounting Yoke with Omega Receivers
• Second Set of Omega Receivers on Rear
Control:
• DMX512
• Aria X2 Wireless Management / DMX System
• Bluetooth
• RDM (Remote Device Management)
• (17) DMX Channel Modes (5CH / 8CH / 10CH / 11CH / 12CHA / 12CHB / 16CH / 18CH / 19CH / 21CH / 22CH / 25CH / 26CH / 29CH / 31CH / 35CH / 41CH modes)
• On-board Manual Control Mode
• Primary / Secondary Mode
Connections:
• 5pin XLR IP65 DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
• IP65 Locking Power Sockets
Dimensions & Weight:
• Length: 16.54" (420mm) Width: 10.28" (261mm) Height: 9.11" (231.3mm)
• Weight: 26.1 lbs. (11.85 kg)
Power:
• AC100-240V/50Hz-60Hz Input
• 347W Power Consumption
• Link 2 pieces @120VAC or 6 pieces @ 230VAC
Thermal:
• Ambient Operational Temperature: -4F to 113F (-20C to 45C)
• Storage Temperature: -22F to 113F (-30C to 45C)
Certifications & IP Rating:
• CE
• cETLus (Pending)
• FCC
• IP65
Included Accessories:
• (1) Outdoor Locking Power Cable
• (1) Safety Cable
