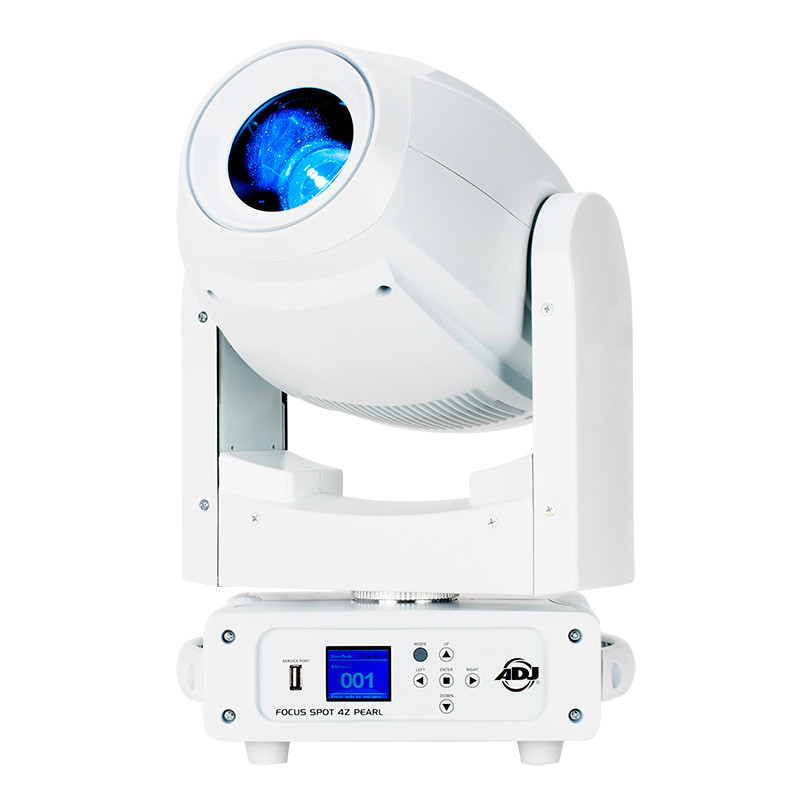

The Focus Spot 4Z Pearl is powered by a brilliant 200W cool white LED engine and is equipped with motorized focus and zoom (11 22-degree zoom), and has a white exterior housing. Its designed for temporary live events and fixed installations in nightclub, stages or churches. It is professionally fit with one GOBO wheel with 6 rotating/replaceable GOBOS, 8 vibrant colors plus white, and 2 prism wheels (one 5-facet linear and one 6-facet circular).
The Focus Spot 4Z has locking powerCON In and out connectors to daisy chain the power, as well as 3-pin DMX In/Out to transmit a DMX signal from one fixture to the next. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fin pan and tilt, multiple DMX control modes, and 6 different dimming options. The Focus Spot 4Z offers a robust light output in a light weight, compact foot print (18-inch high and one 23 pounds).
The Focus Spot 4Z Pearl fits in the ADJ DRC MH road case.
Light Source:• 200W Cool White LED Engine (50,000 hr.)
Features:• Motorized Focus
• Motorized Zoom: 11 22-degrees plus 16-bit Fine Zoom
• 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular
• 0-100% smooth dimming
• Various strobe speeds
• USB firmware update port
• 2 cooling fans
Color Wheel:• 8 dichroic colors + white
GOBO Wheel:• 6 aluminum GOBOs + open
• All GOBOs removable & rotatable
• GOBO Shake Effect
• GOBO size: 23mm (outer); 19mm (viewable); 0.5mm (thickness)
Prism Wheel:• Prism Wheel 1: Rotatable 5-facet Linear
• Prism Wheel 2: Rotatable 6-facet Circular
• Prism Indexing
Control:• 3 DMX Channel Modes: 16/18/22 Channels
• Color LCD display with 6-button function menu
• Data In/Out: 3-pin DMX
• Power In/Out: Locking powerCON (Daisy chain 4 units @ 120V; 10 units @ 240V)
• Control Mode: DMX512 or internal programs
• 6 Dimming Curve Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
• 0-100% smooth dimming
• Various strobe speeds
• USB firmware update port
• With Wired Digital Communication Network
Pan/Tilt:• Pan: 540-degrees
• 16-bit Fine Pan: 630-degrees
• Tilt
• 16-bit Fine Tilt
Electrical:• Power voltage: AC100-240V, 50/60Hz (Multi-voltage)
• Power consumption: 240W max
Dimensions & Weight:• Dimension: 18" x 10.97" x 7.15" / 457 x 279 x 182mm
• Weight: 23 lbs. / 10 kg.

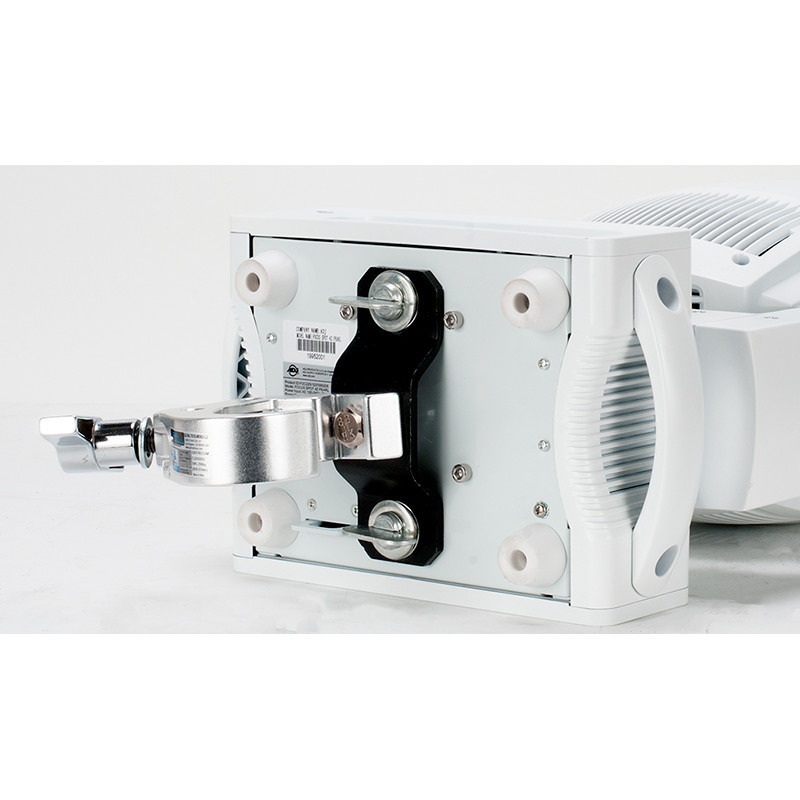

What's Included: • Omega Bracket
• 6 ft/3M powerCON power cable
• Safety Cable
