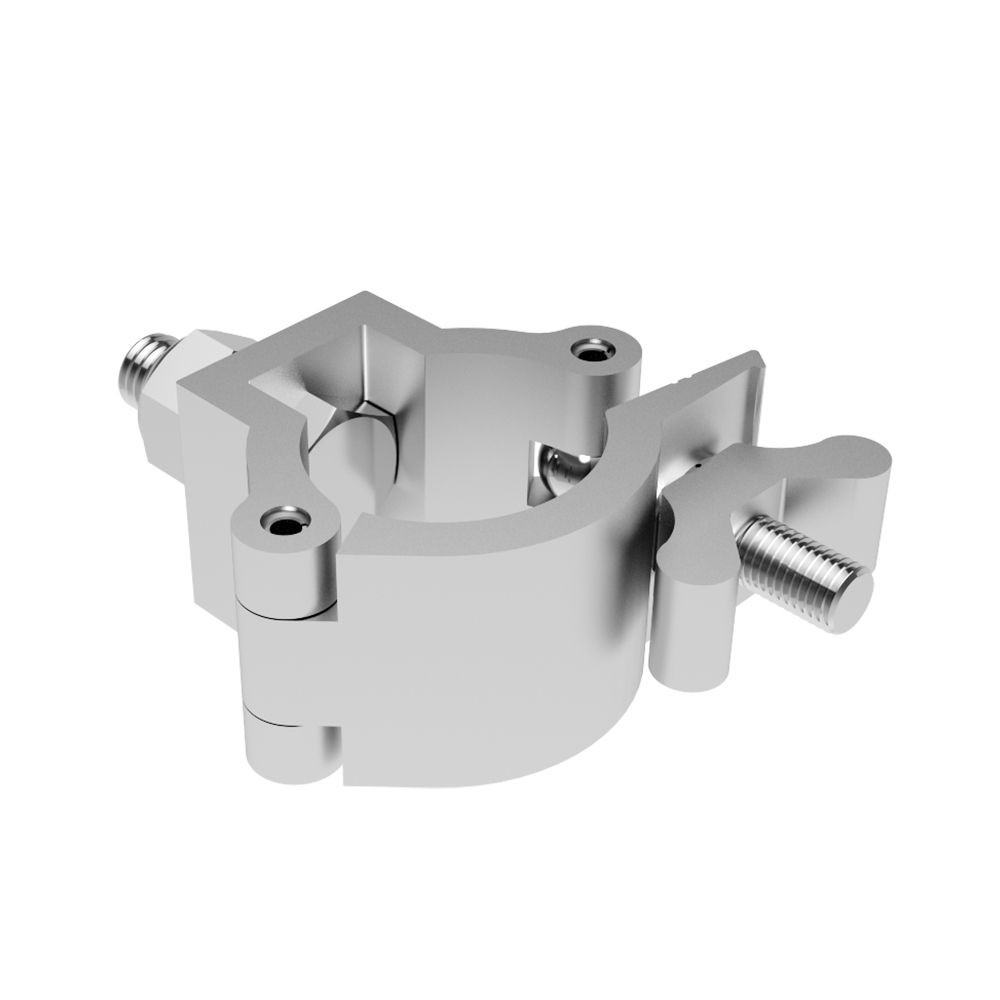

The Global Truss JR CLAMP M10SS is a high grade stainless steel clamp for tubing ranging from 32mm to 35mm. It is compatible with F23 and F24 trussing. It has a load capacity of up to 165 lbs.
• High Grade 304 Stainless Steel Hardware
• Compatible with F23 & F24 Trussing
• Minimum Tubing Diameter: 32mm
• Maximum Tubing Diameter: 35mm
• Profile Width: 30mm
• Load Capacity: 75 Kgs/165lbs
• M10 x 30mm Bolt with Nylon Locknut
• Pitch Thread: 1.5 coarse
Unit Weight: 0.28 Lbs
