ADJ MDF3 Modular LED Dance Floor Panel

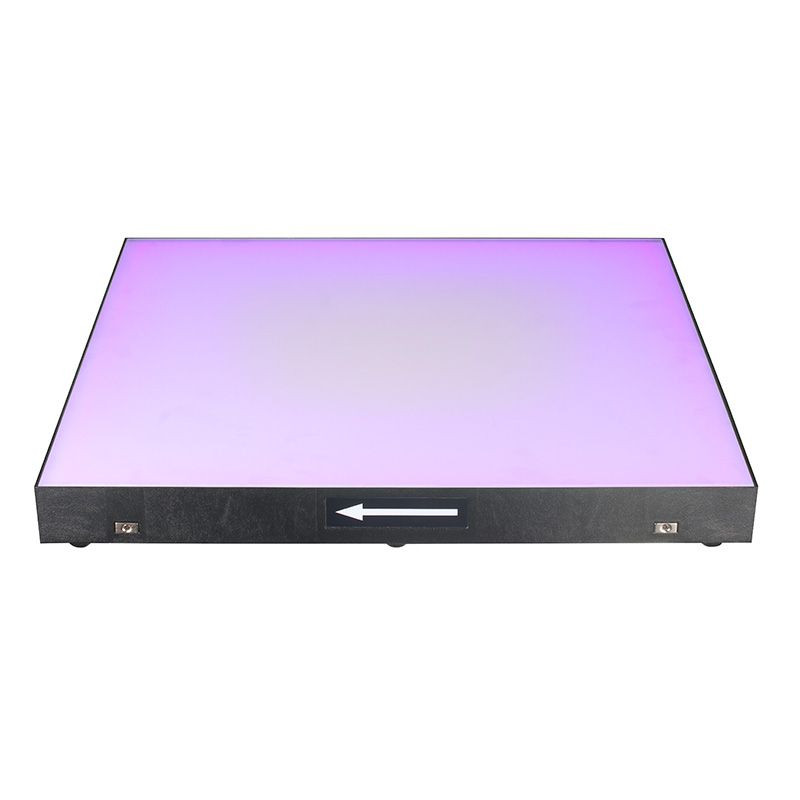

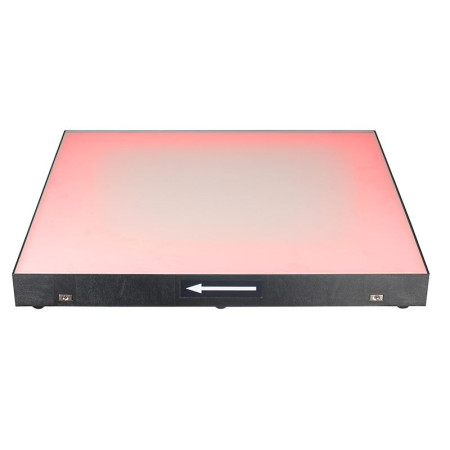

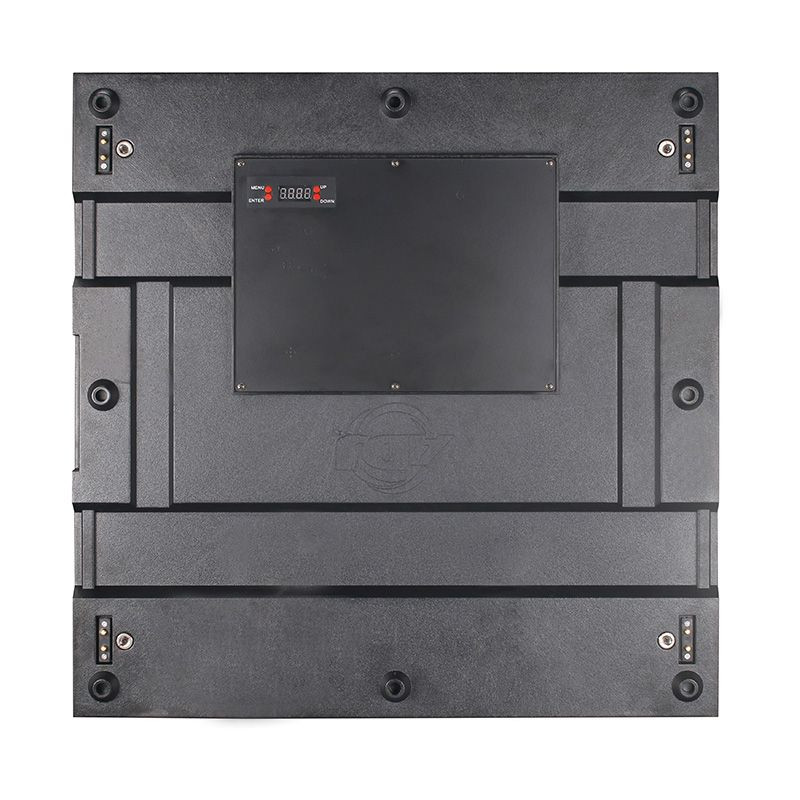

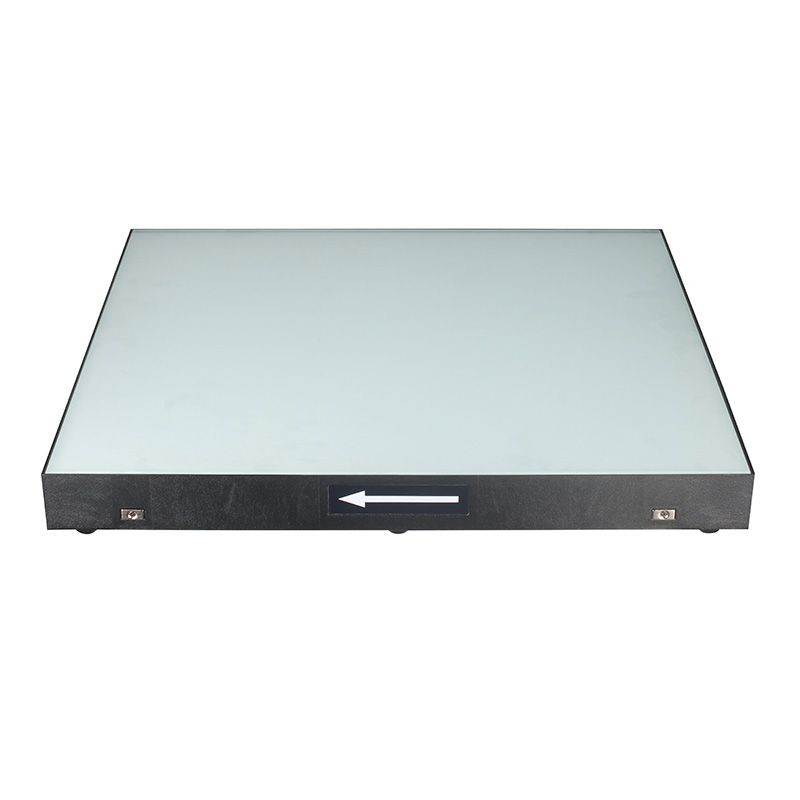

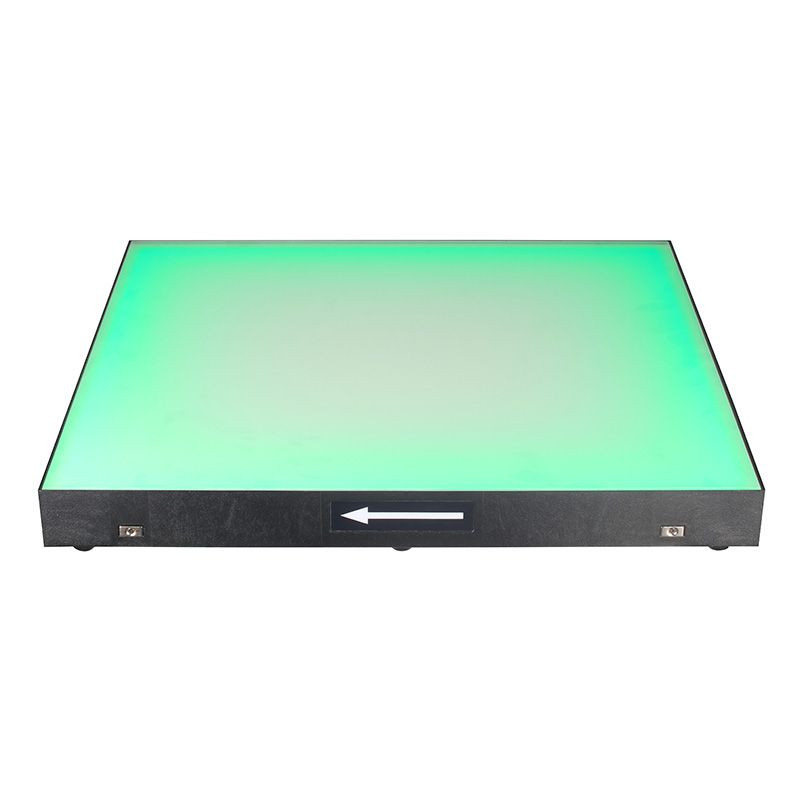

The MDF3 is a robust, lightweight, and modular LED dance floor panel illuminated by an arrangement of vibrant 3-in-1 RGB color mixing LEDs that cause its opaque surface to glow vibrantly in a wide variety of colors. It features an upgraded housing and improved power connection system that uses gold-plated copper strips and springs underneath the panels to ensure a reliable connection between adjacent units. Other enhancements include a convenient service panel and an upgraded PCB with added RDM support to allow remote fixture addressing as well as an onboard battery to allow DMX addressing and mode selection to be carried out in advance of an event without power connected to the panels. With surface dimensions of 600mm x 600mm (23.62" x 23.62") and a low height of just 70mm (2.76"), the individual panels weigh just 26.57 lbs. (12.05 kgs.) yet can support a weight of up to 300 kgs/m2 (61.5 lbs/ft2). A variety of power supply options are available, with the smallest capable of driving a compact configuration of 9 panels and the largest capable of supporting a huge floor of up to 156 panels, as well as edge and corner ramps to allow the panels to be deployed safely for parties and events.

Specifications
• Light Source: RGB 3-IN-1 LED
• Input Voltage: DC 24V
• Max Power Consumption: 15W
• Input Signal: DMX512 (3-Pin XLR)
• Control Mode: DMX512 Console, SD Controller (With DMX, • Sound Control, Audio Control and Remote Control)
• DMX Channel Mode: 3, 5, 7, & 10 Channel Mode
• Visual Angle: 160
• Brightness: High Brightness

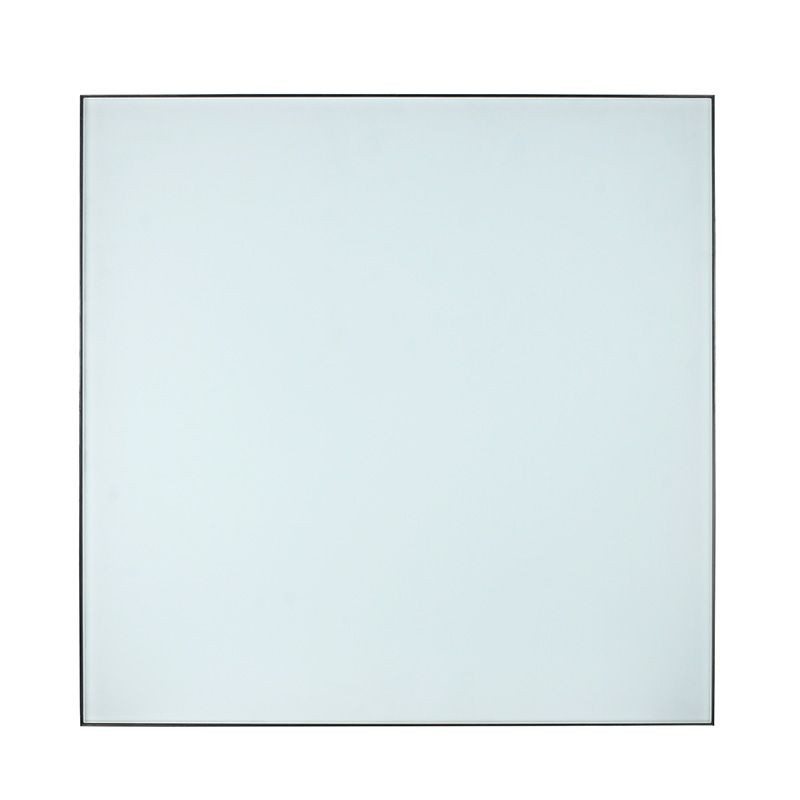

• Surface Material: Tempered Glass
• Base Material: ABS
• Bearing Weight: 61.5 lbs./ft2 (300 kgs/m2)
• Operating and Storage Temperatures: -4F min. 113F max. (-20C45C)
• Single panel Dimensions (LxWxH): 23.62" x 23.62" x 2.76" / 600x600x70mm
• Single Panel Weight: 26.57 lbs./ 12.05 Kgs
• CE Certified

MDF3 Series Products and Accessories:
MDF300: LED Floor Panel
MDF232: Power Supply (powers up to 9 panels)
MDF248: Power Supply (powers up to 15 panels)
MDF264: Power Supply (powers up to 20 panels)
MDF281: Power Supply (powers up to 40 panels)
MDF454: Power Supply (powers up to 117 panels)
MDF477: Power Supply (powers up to 156 panels)
MDF297: Power Main Cable, 16ft
MDF313: Power Main Cable, 20ft
MDF320: Power Main Cable, 25ft
MDF336: Power Main Cable, 50ft
MDF388: Connection / Power Transfer Bracket
MDF368: Panel Removal Tool
MDF390: Power Supply Ramp
MDF401: Edging Ramp
MDF417: Corner Ramp
