This light can be powered via wall outlet or its rechargeable lithium-ion battery, providing user selected 5 to 20 hours of operation. Control options are expansive, including DMX512, Aria X2 wireless system for over the air firmware/software updates, Bluetooth, RDM and an IR remote. With a robust IP65-rated housing, it is weather-resistant, making it ideal for outdoor or indoor use.
Advanced features include variable refresh rates (900Hz to 25K), six dimming modes, four dimming curves, built-in programs, and electronic strobing and full dimming, giving users complete control over intensity and effects.

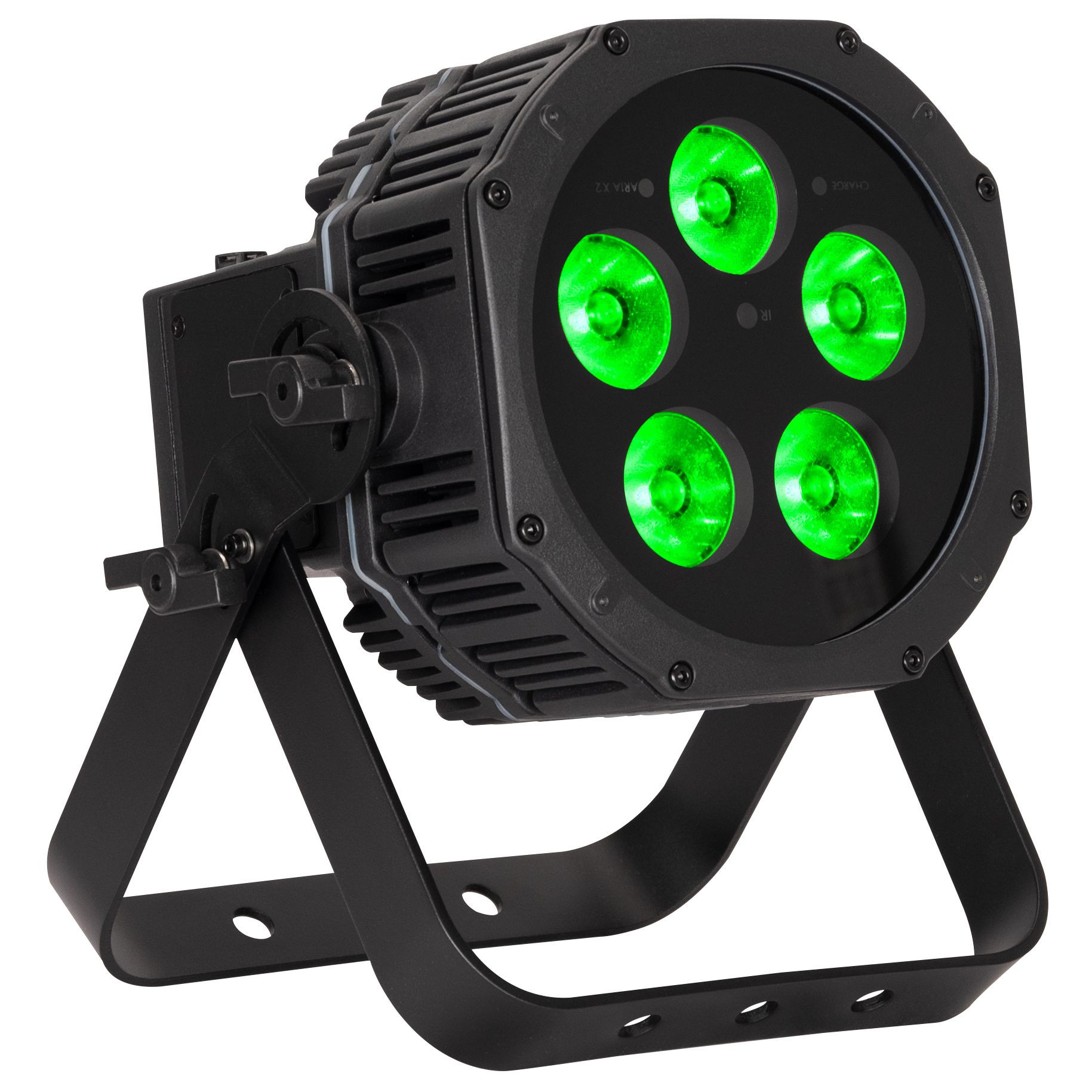

The Mirage Par H IP is both compact and rugged, ensuring easy setup, striking and transport. This versatile LED Par is designed for lighting professionals who need reliability, color versatility, adaptable power options and all-weather protection in one durable package.
Features:
• 5 Pixel, Hex Color LED (RGBAL+UV) LED Par Battery or Wall Powered
• Battery operation can be selected by the user for durations ranging from 5 to 20 hours
• Built-In Programs
• Variable White Color Temperature Control (2,700K 9,900K)
• User Selectable LED Refresh Rates (900Hz 25K)
• 6 User-Selectable Dim Modes
• 4 User-Selectable Dim Curves
• Electronic Strobe (0.3Hz 11Hz)
• Electronic Dimming
Source:
• (5) 20W Hex Color RGBAL+UV LED's
• 50,000 Hour Average Life
• **may vary depending on several factors, including but not limited to environmental conditions, power/voltage, usage patterns (on-off cycling), control, and dimming.
Optical:
• 2,300K 9,900K White Color Temperature Range
• Beam Angle: 17
Physical:

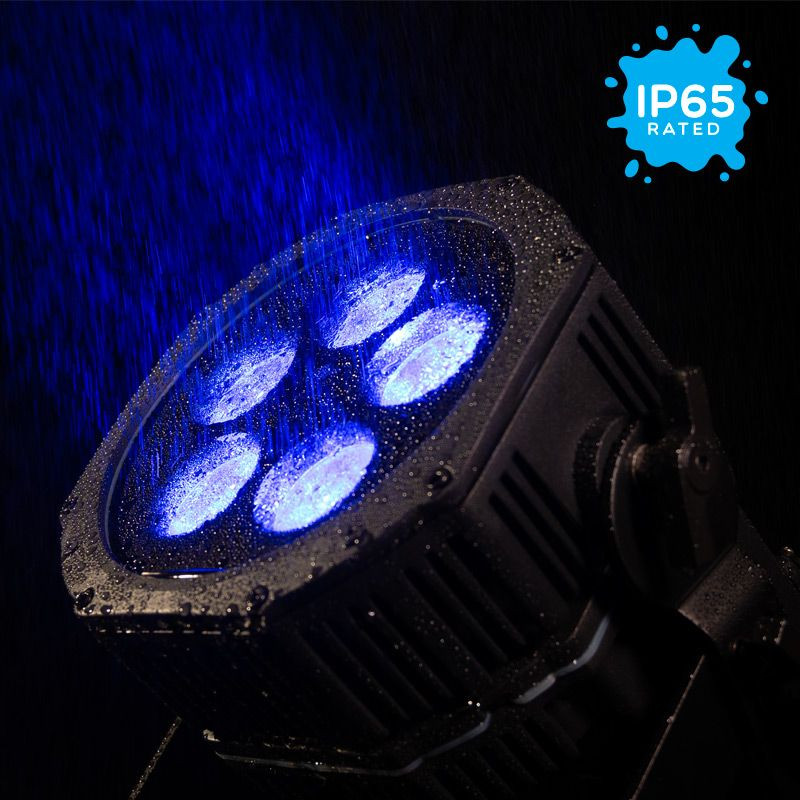

• IP65 Housing

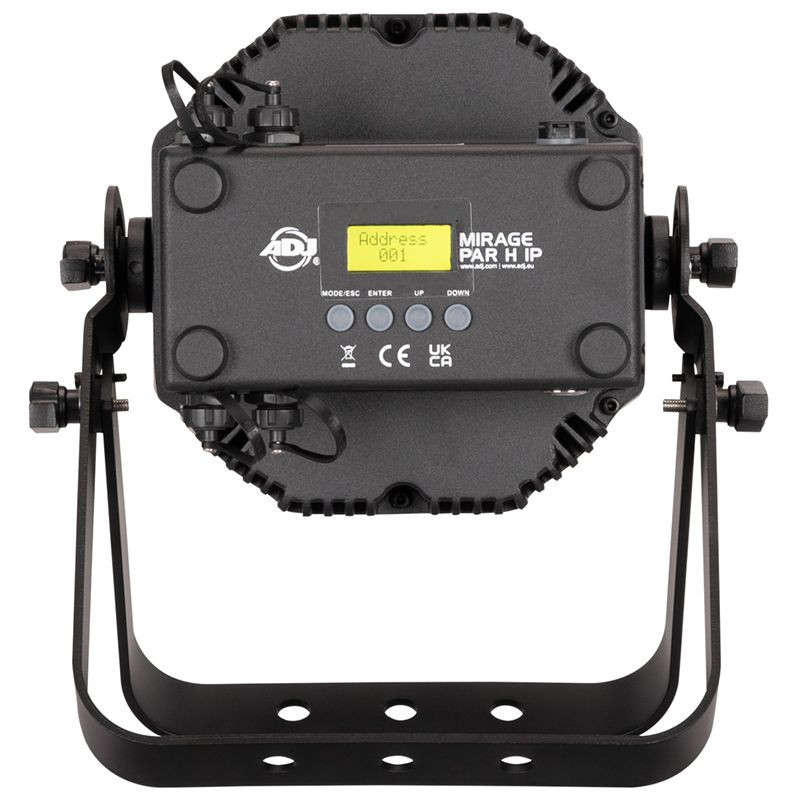

• Digital display

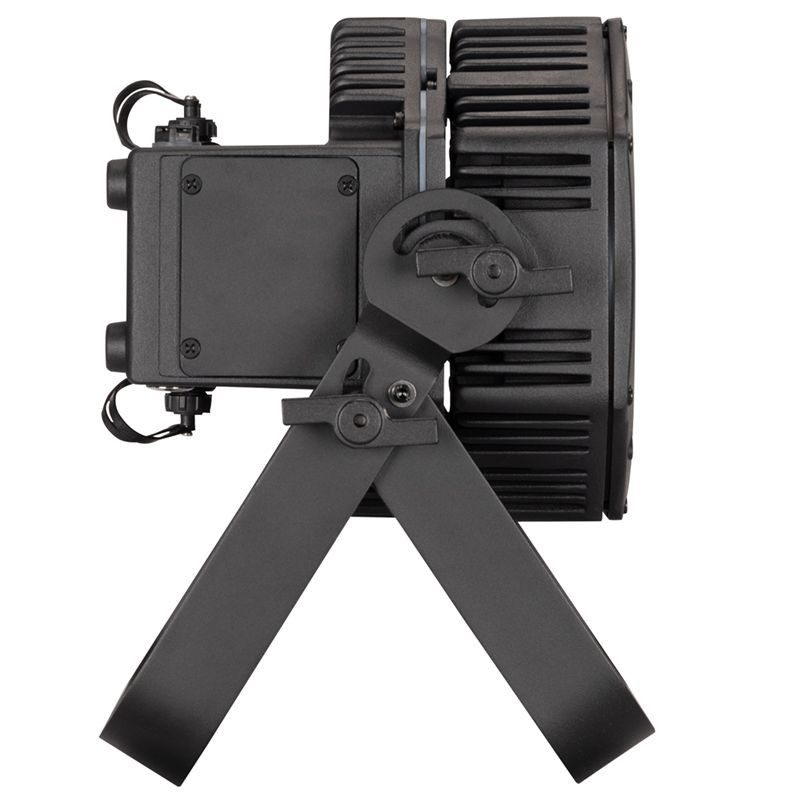

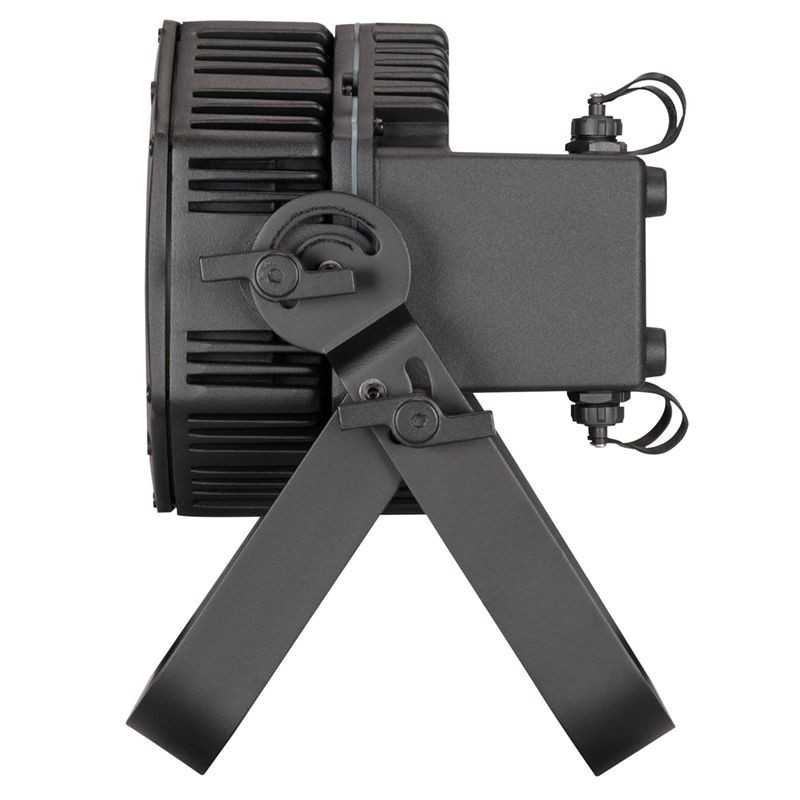

• Adjustable, hanging / kickstand bracket
Control:
• DMX512
• Aria X2 Wireless Management / DMX System
• Bluetooth
• RDM and RDM Net Compatible
• IR (Includes UCIR24 wireless remote)
• (6) DMX Channel Modes (5, 6, 9A, 9B, 15 & 17 Channel modes)
• On-board Manual Control Mode
• Primary / Secondary Mode

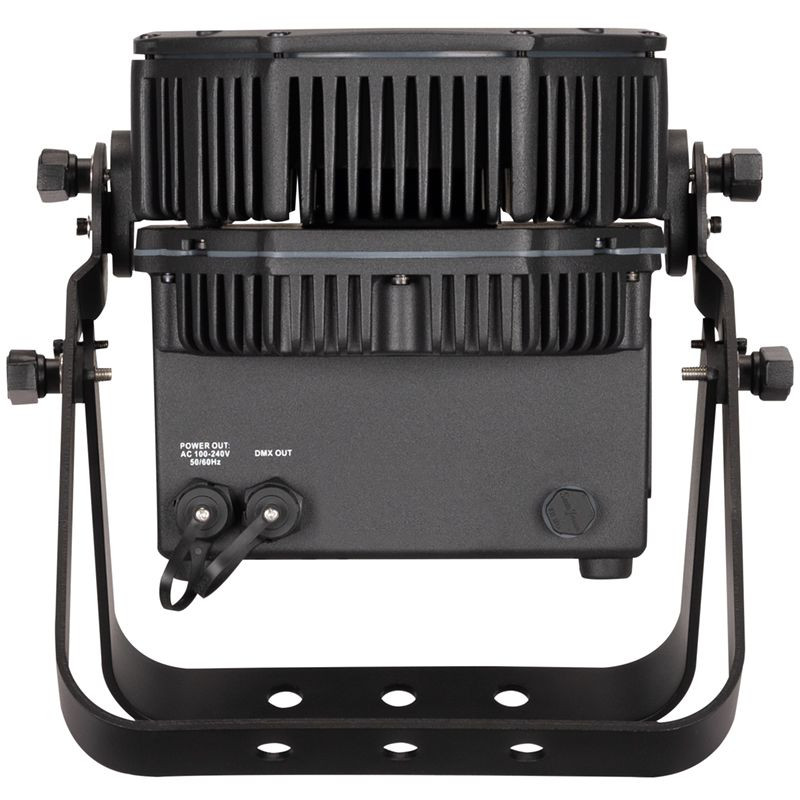

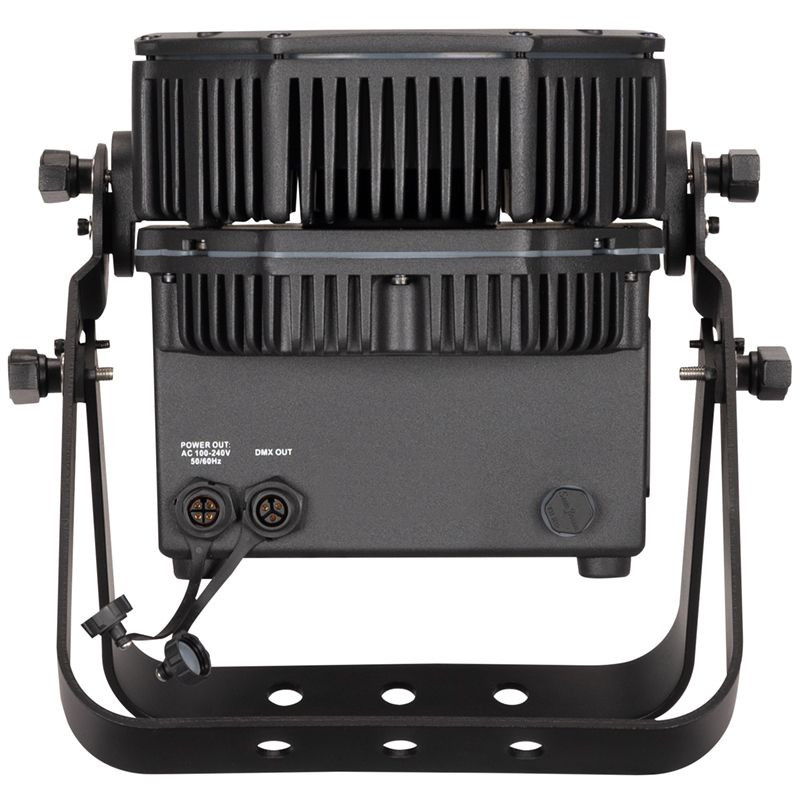

Connections:
• Chogori IP65 data locking connectors
• Chogori IP65 power connectors
Dimensions & Weight:
• Length: 11.1" (282mm) x 10.6" (269mm) x 10.4" (265mm)
• Weight: 11.9 lbs. (5.4 kg)
Power:
• AC100-240V/50Hz-60Hz Input
• 60W Power Consumption
• Link 14 pieces @120VAC or 28 pieces @ 230VAC
Battery:
• Rechargeable Lithium-ion
• Battery Capacity: 6,600mAh
• Battery Voltage: 22.2V
• Charge Time: 5 Hours (To Full)
• Battery operation can be selected by the user for durations ranging from 5 to 20 hours. 5 Hour duration will operate at Full Output when battery is fully charged
• Battery Cycles: 500
Thermal:
• Ambient Operational Temperature: -4F to 113F (-20C to 45C)
• Storage Temperature: -22F to 113F (-30C to 45C)
Certifications & IP Rating:
• CE
• cETLus (Pending)
• FCC
• IP65
Included Accessories:
• (1) WIF901-POWER CABLE (WIF901-POWER CABLE), IP65 Chogori to Edison Locking Power Cable
• (1) CHS5INDMX (CHS366) - 20" Chogori locking output data connector to Seetronic 5-pin, IP65, male input XLR connector adapter cable. (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
• (1) CHS5OUTDMX (CHS373) - 20" Chogori locking input data connector to Seetronic 5-pin, IP65, female output XLR connector adapter cable. (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
• (1) Floor / Mounting Bracket

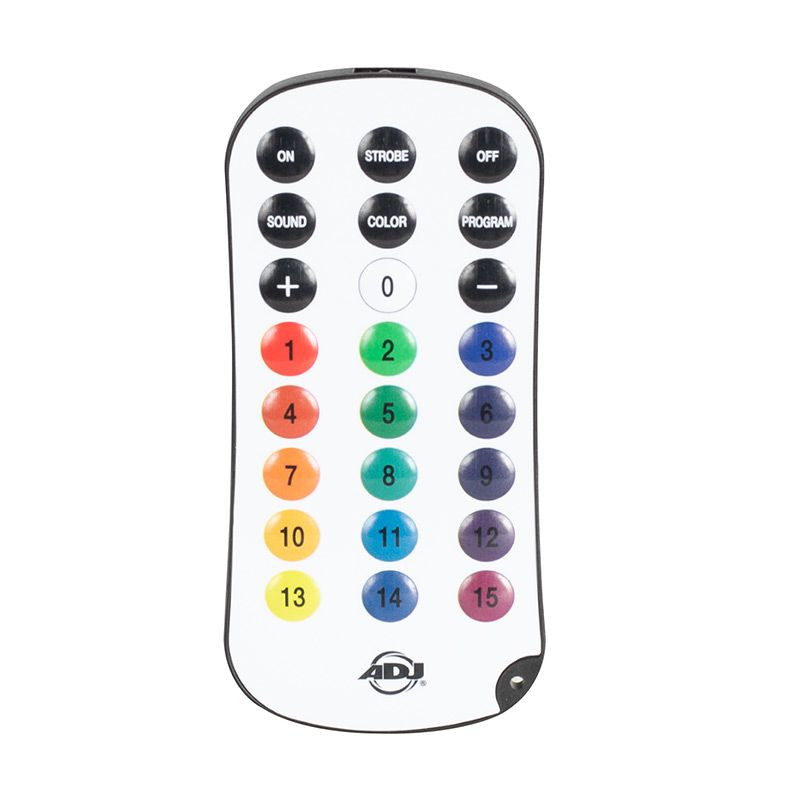

• (1) UCIR24 Remote
Optional Accessories:
• CHS5INDMX (CHS366) - Replacement 20" Chogori locking output data connector to Seetronic 5-pin, IP65, male input XLR connector adapter cable. to Seetronic 5pin IP65 XLR DMX (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
• CHS5OUTDMX (CHS373) - Replacement 20" Chogori locking input data connector to Seetronic 5-pin, IP65, female output XLR connector adapter cable
• CHSIP65PIN (CHS386) - 10" Chogori locking input connector to Seetronic locking IP65 output power connector cable
• CHSIP65POUT (CHS399) - 10" Chogori locking output connector to Seetronic locking IP65 input power connector cable
• WIF901-POWER CABLE (WIF901-POWER CABLE) - Replacement Chogori Connector to IP65 Locking Power Cable
