Its COB (Chip On Board) technology ensures consistent output without color shadows, while a high CRI of over 90 offers accurate color rendering, ideal for illuminating scenery, dcor, or performers with natural skin tones and enhanced depth. With 64 color macros and additional white-light temperature macros, programming is quick and efficient. The fixture also includes six dimming modes, four dimming curves, and an onboard color balance feature, allowing for customization across various applications and preferences.

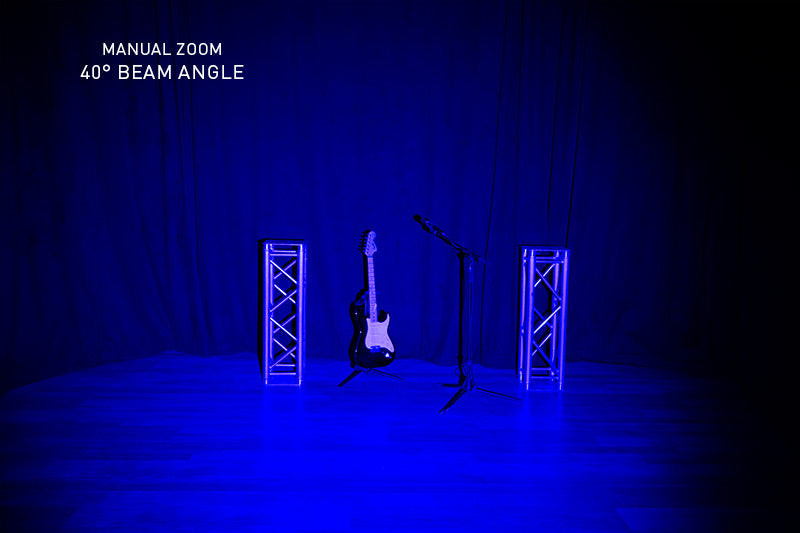

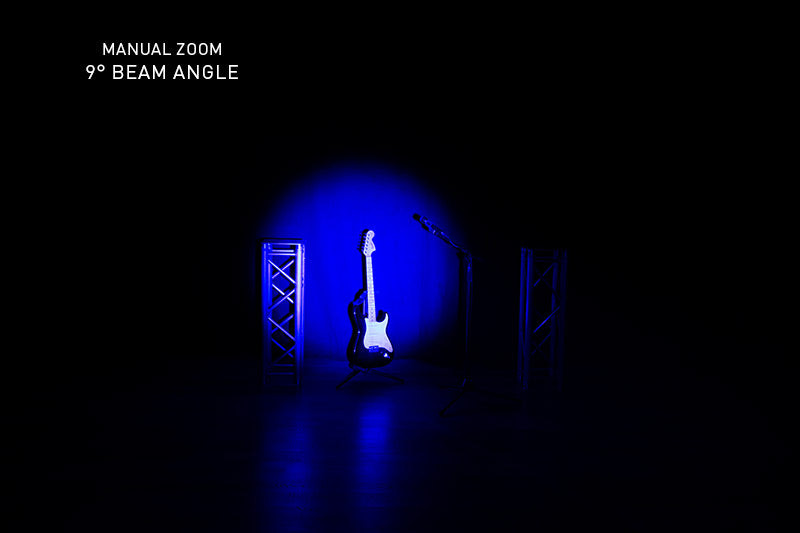

The unit offers seven manually adjustable beam angles (9, 15, 20, 25, 30, 35, or 40) and comes with a gel frame for optional diffusion filters (sold separately) to expand the light spread. The LED engine also provides smooth dimming, variable-speed strobing, and adjustable refresh rates. With a lifespan of 50,000 hours, the LED light source minimizes the need for frequent replacements.

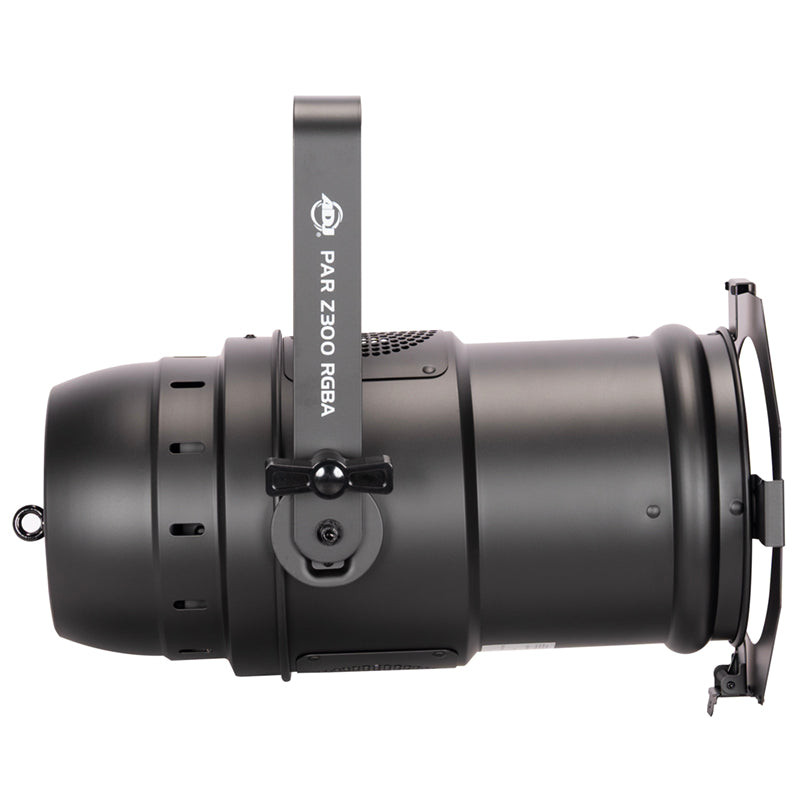

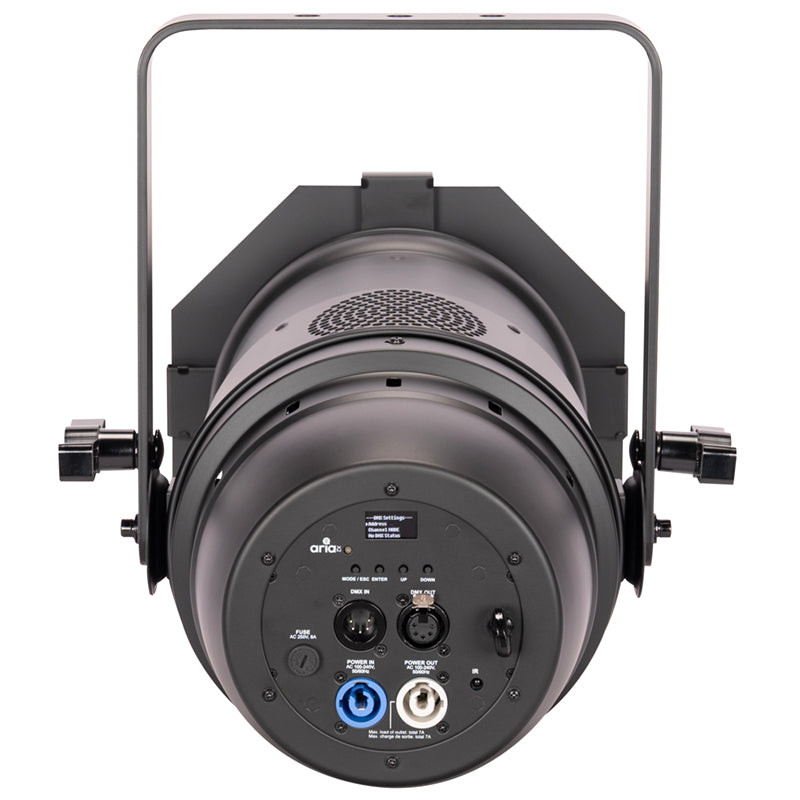

An adjustable yoke, secured with large thumb screws, allows flexible positioning on trusses or stands. The rear panel includes 5-pin DMX input and output, locking power sockets for daisy-chaining multiple units, an LED display, and four push buttons for mode selection and DMX addressing. The fixture is also RDM-compatible for remote addressing.
The Par Z100 3K2 is powered by a 100-Watt, 3000K Warm White C.O.B. LED engine with a CRI greater that 90. The 3000K color temperature offers a good approximation to the output of a traditional lamp. There are 5 manual zoom beam angles to choose from: 9, 15, 20, 25 or 30. A traditional par can gel frame is included so that designers can diffusion filter for even more control of the fixture's output.
Advanced features include a 4-button DMX OLED display menu, adjustable strobe rates, 6 dim modes and electronic dimming form 1-100%. The fixture is RDM and RDM Net compatible. On the back of the fixture there are locking power In/Out sockets to daisy chain power, plus 5-pin DMX data In/Out sockets.
Optical:• 100-Watt, 3000K Warm White C.O.B. LED (Chip On Board)
• Life expectancy: rated at 50,000 hrs.
• Manual Zoom: 9, 15, 20, 25 or 30
• Zoom Ratio: 3.3:1
Photometrics:• 5885 Lux (Zoomed In to 9 @ 5 meters)
• 767 Lux (Zoomed Out to 25 @ 5 meters)
• CRI: >90
Connection:• DMX: 5-pin DMX In/Out
• With Wired Digital Communication Network
• Locking power In/Out connections
Control:• DMX-512
• 3 DMX control modes: (1, 3 & 4 Ch. modes)
• RDM and RDM Net Compatible
• Primary/Secondary, stand-alone mode
• On-board manual control mode
Features:• 4-button DMX menu display on rear panel
• OLED display

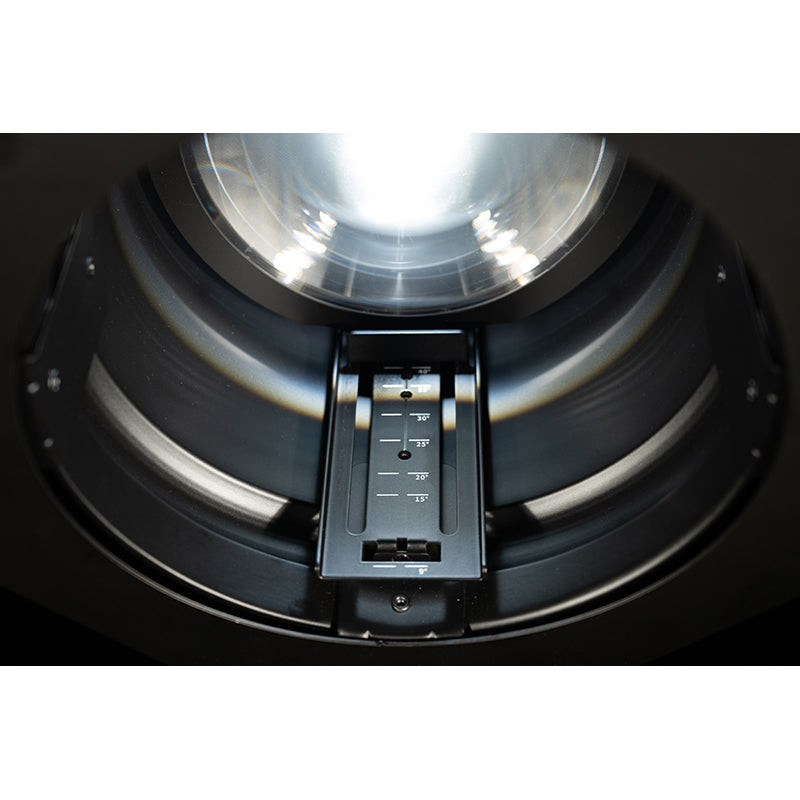

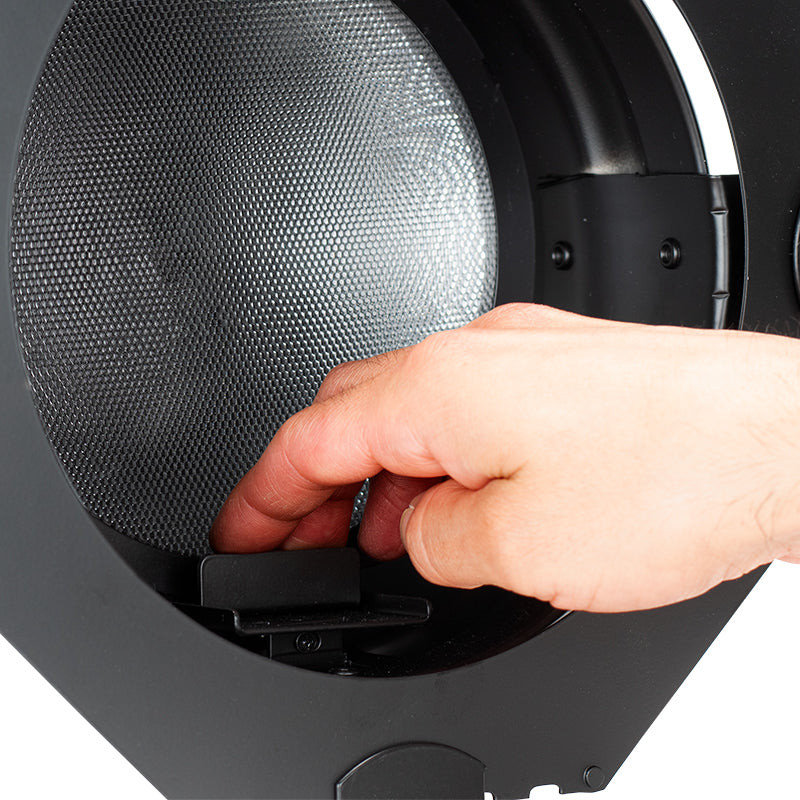

• Adjustable latch to manually change beam angle
• Includes gel frame for diffusion filters (Diffusion filter sold separately)
• Strobe Rate: 0.6Hz to 7.5Hz
• Refresh Rate: 1.2KHz
• Electronic Dimming: 0 - 100%
• 6 Dim Modes
Electrical:• Power Draw Total (@ Full On): 115W
• Power Consumption: 0.964A @ 120V/60Hz ; 0.5A @ 220V/50Hz
• Multi-voltage operation: AC 100-240V, 50/60Hz
• Daisy chain: 12 fixtures @ 120V; 22 fixtures @ 230V
• Fuse protected: 3A/250V
Ambient Temperature Range (For Use):• -4 113F (-20C 45C)
Storage Temperature Range:• -22 113F (-30C 45C)
Dimensions / Weight:• Dimensions (LxWxH): 19.25" x 10.94" x 10.68" / 489 x 277.7 x 271.1mm
• Weight: 7.94lbs. / 3.6kg.
IP Rating / Approvals:• IP20
• CE & FCC
• ETL Approved (4002034)
Specifications subject to change without notice.
