ADJ's Pixie Driver 2000 V3 is designed specifically for the ADJ Pixie Strip Series, and provides easy and versatile control options including simple on-board manual dimming and strobe control, and full pixel mapping control.
Control Features:• Power / data supply for ADJ Lighting Pixie Strip 30, Pixie Strip 60, Pixie Strip 120 and Pixie Curve 60
• Manual RGB mode
• Internal programs
• Manual Dimming and Strobe Control
• Full Pixel Mapping Control
• 2,040 Pixels via Kling-Net, ArtNet and sACN (1020 Pixels per Port)
• OLED screen with 4-button menu
• RDM compatible
• USB port for Firmware Updates
Control Quantity:KlingNet/Art-Net/sACN: max 34x Pixie Strip 30; 17x Pixie Strip 60 or Pixie Curve 60; 8x Pixie Strip 120 (Per port, or any combination not exceeding 1,020 pixels per port)

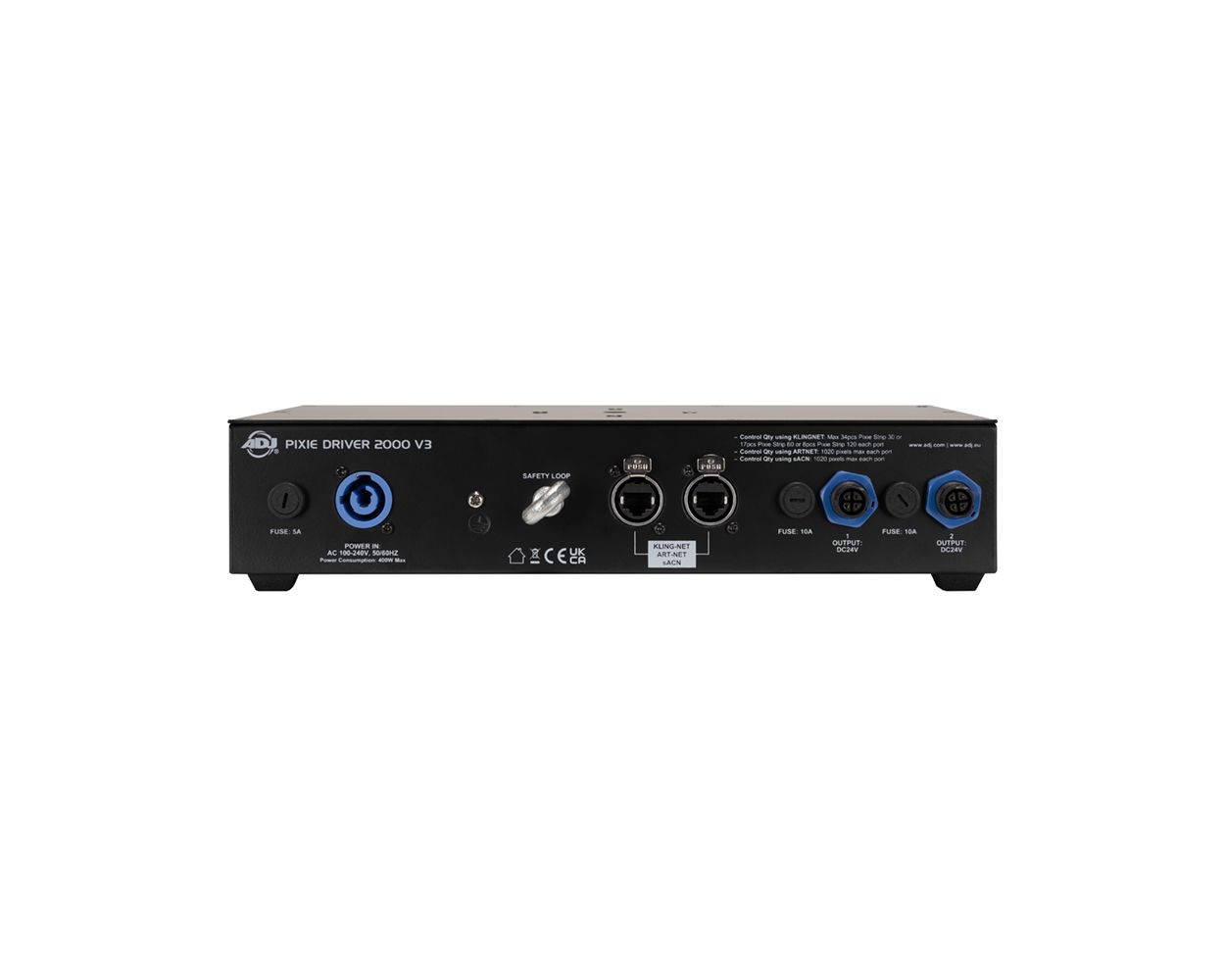

Connections: • Indoor Power Locking Input
• Two locking RJ45 ports
• Two 4-pin DC24V power/data outputs to Pixie Strips

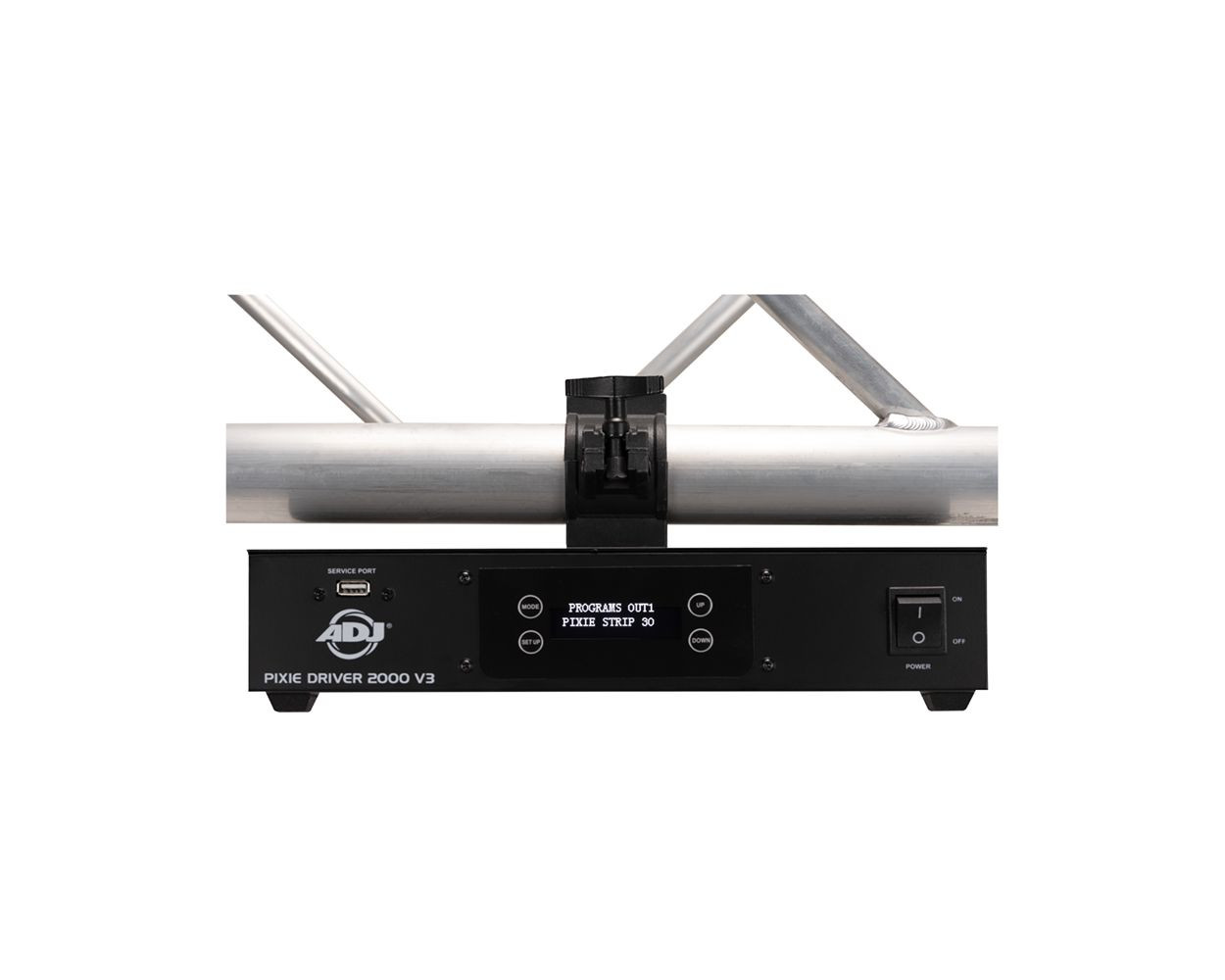

Mounting Options:• Bolt to add a clamp to hang from truss (clamp and truss not included)

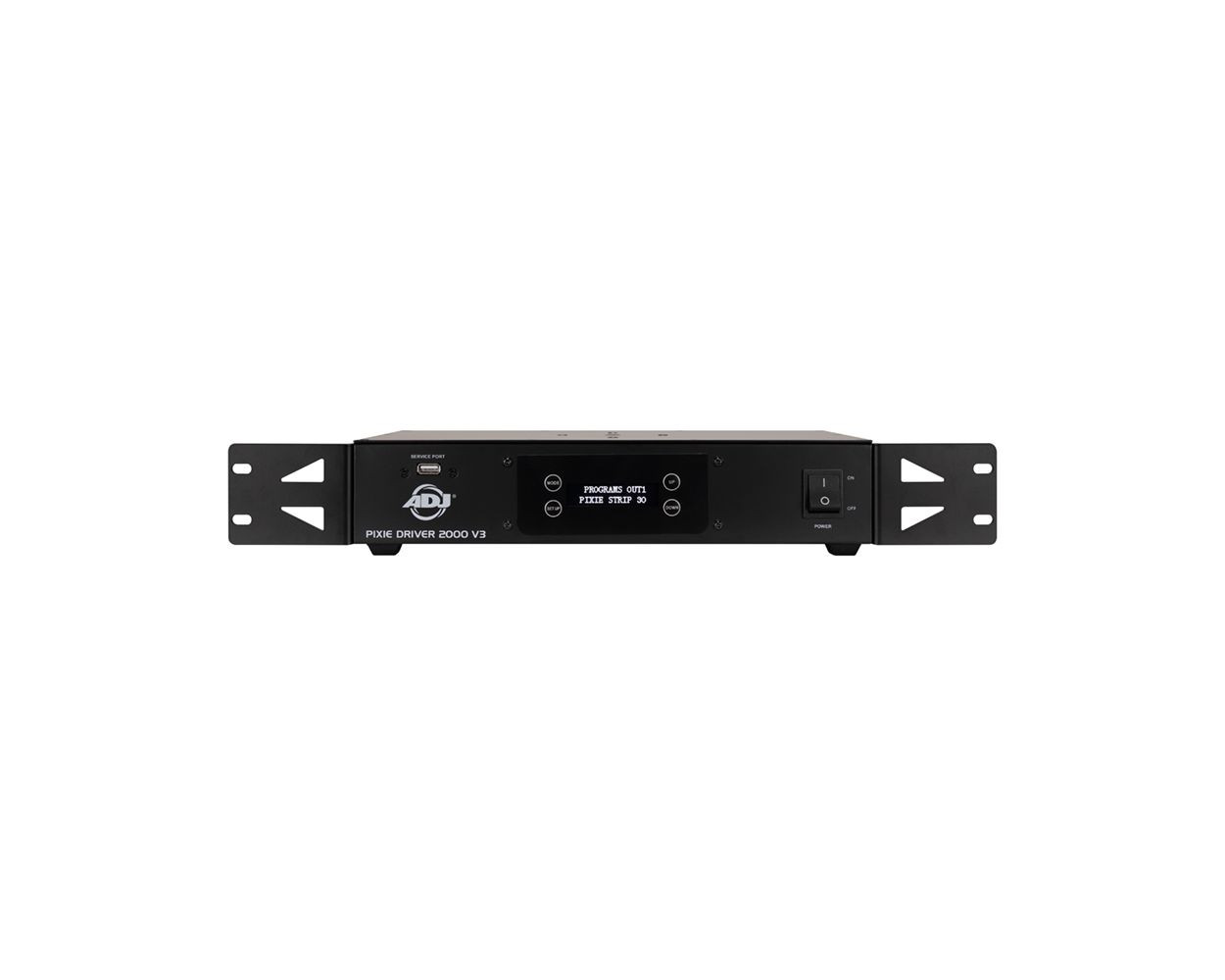

• Includes 19-inch rack mount ears
• Safety eye
Electrical:• Multi-voltage operation: AC 100-240V, 50/60Hz
• Power Consumption: 400W max
• -4F to 113F (-20C to 45C)
Dimensions / Weight:• Dimensions (LxWxH): 18.9" x 7.11" x 2.91" / 480x180.8x74mm
• Weight: 5.6 lbs. / 2.5 kg.
What's Included:• Twist-Lock power cable
• 19-inch rack mount ears
• 4-pin data cable
Approvals: CE
cETLus
Accessories: PSLC1 (PIX158): 1-foot Pixie Strip Link Cable
PSLC3 (PIX174): 3-foot Pixie Strip Link Cable
PSLC5 (PIX188): 5-foot Pixie Strip Link Cable
PSLC10 (PIX200): 10-foot Pixie Strip Link Cable
PSLC15 (PIX213): 15-foot Pixie Strip Link Cable
PSLC25 (PIX229): 25-foot Pixie Strip Link Cable
PSLC50 (PIX242): 50-foot Pixie Strip Link Cable
