Pixie Driver 8000 is designed specifically for the ADJ Pixie Strip 30, Pixie Strip 60, and Pixie Strip 120. It provides easy and versatile control options including simple on-board manual dimming and strobe control, plus full pixel mapping control of 8,160 max pixels via Kling-Net, 1,360 max pixels via Art-Net or sACN (streaming ACN) protocols.
The Pixie Driver 8000 features a universal auto switching power supply (100-240V), a 4-button LCD control menu display, RJ45 Ethernet in/out ports, (8) Pixie Strip outputs which use proprietary, 4-pin combo cables (sold separately) that supply power and data to each pixie strip (available in lengths from 2 to 50 feet (For additional details, see Accessories Sold Separately under the Specifications section). The Pixie Driver 8000 can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a clamp (not included).
Specifications:Control Features:• Power / data supply for ADJ Pixie Strip 30, Pixie Strip 60, and Pixie Strip 120
• Manual RGB mode
• Internal programs
• Manual Dimming and Strobe Control
• Full Pixel Mapping Control
• Drives up to 8,160 Pixels via KlingNet (1,020 Pixels per port)
• Drives up to 1,360 Pixels via Art-Net and sACN (170 Pixels per port)
• OLED screen with 4-button menu
• USB port for Firmware Updates
Control Quantity:KlingNet: (34) Pixie Strip 30's, (17) Pixie Strip 60's or (8) Pixie Strip 120's (Per port. Or any combination not exceeding 1,020 pixel per port)
ArtNet: (5) Pixie Strip 30's, (2) Pixie Strip 60's or (1) Pixie Strip 120 (Per port. Or any combination not exceeding 170 pixel per port)
sACN: (5) Pixie Strip 30's, (2) Pixie Strip 60's or (1) Pixie Strip 120 (Per port. Or any combination not exceeding 170 pixel per port)

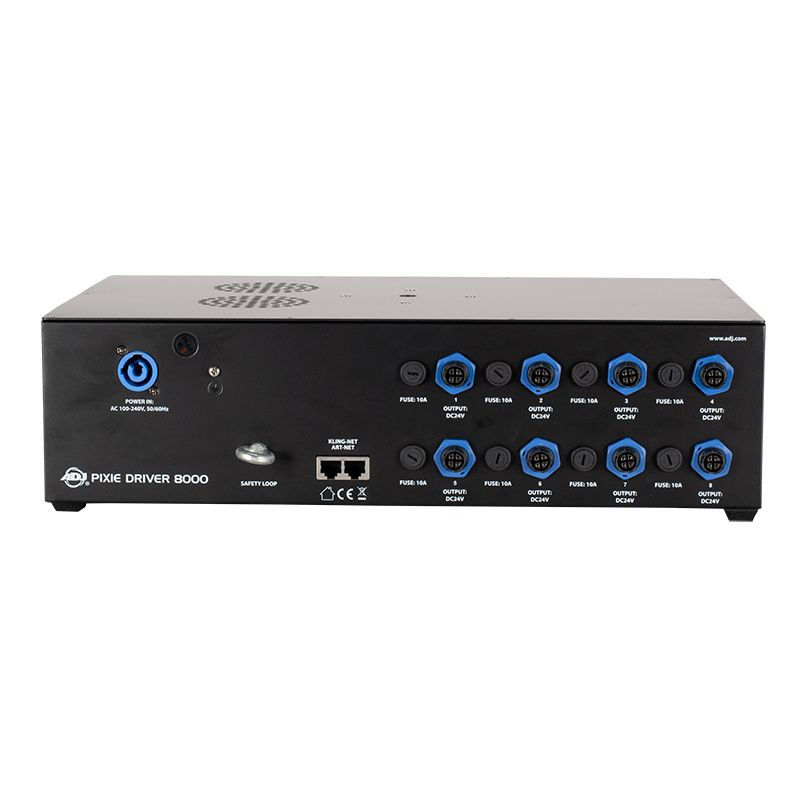

Connections:• Power: PowerLock Input
• Two KlingNet / Artnet ethernet ports
• Eight 4-pin DC24V power/data outputs to Pixie Strips
Mounting Options:• Bolt to add a clamp to hang from truss (clamp and truss not included)
• Includes 19-inch rack mount ears
• Safety eye
Electrical:• Multi-voltage operation: AC 100-240V, 50/60Hz
• Power Consumption: 1,600W max
• -4F to 113F (-20C to 45C)
Dimensions / Weight:
• Dimensions (LxWxH): 11.6" x 18.9" x 4.8" / 294x480x120mm
• Weight: 13.4 lbs. / 6.1 kg.
Approvals:CE | cETLus (Pending)
Included Accessories:(1) PIXEL BC10 (PIX339): 10', 4-pin cable. Connects between Pixie Driver 8000 and Pixie Strip.
(1) SIP20MPC (SIP293): Power Input cable
(2) 19" Rack Ears
Accessories Sold Separately:PSLC1 (PIX158): 1-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
PSLC3 (PIX174): 3-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
PSLC5 (PIX188): 5-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
PSLC10 (PIX200): 10-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
PSLC15 (PIX213): 15-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
PSLC25 (PIX229): 25-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
PSLC50 (PIX242): 50-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
