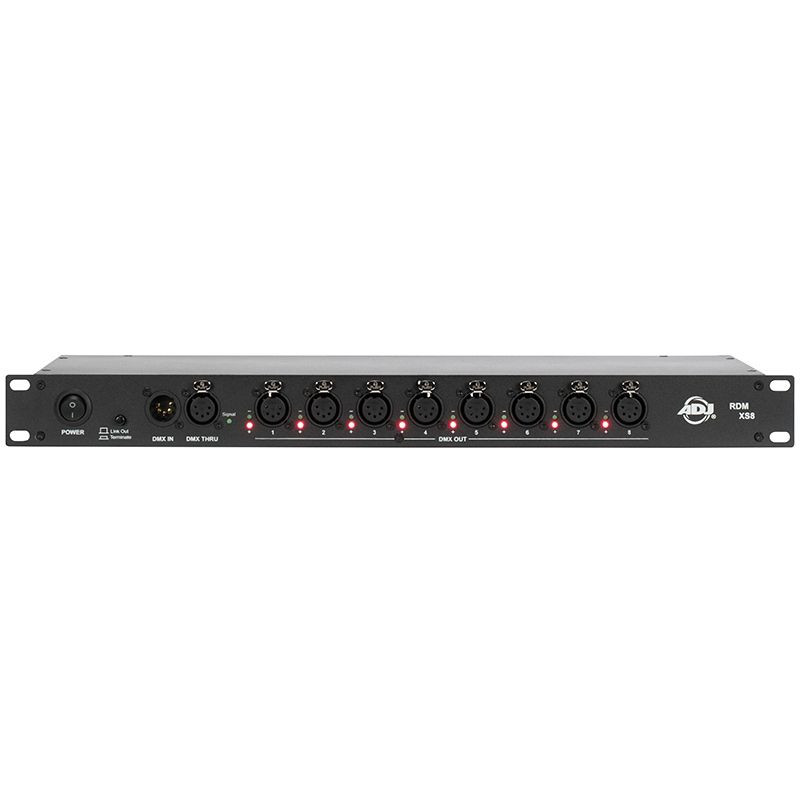

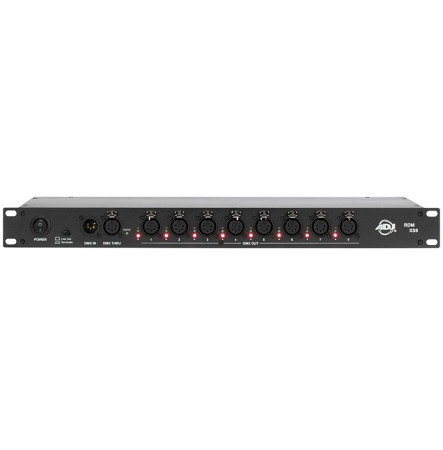

The ADJ Lighting RDM XS8 is a 19-inch rack mount, 8-way DMX and RDM data splitter. With one (1) 5-pin input, one (1) 5-pin thru and eight (8) 5-pin outputs, the RDM XS8 makes running DMX cables easier and more efficient.
The ADJ Lighting RDM XS8 is a versatile and compact solution for streamlined DMX512 and RDM signal distribution. Designed for seamless integration into your lighting setup, this data splitter ensures reliable and convenient installation into a 19-inch rack mount cabinet. Its slim one rack configuration includes 1x indoor 5-pin XLR input, 1x indoor 5-pin XLR thru, 8x indoor 5-pin XLR outputs, plus a Link Out Termination Switch and a DMX/RDM Protocol Switch.
SpecificationsProtocols:
• DMX512
• RDM
Physical:
• 19" Rack Mount
• 1x Indoor 5pin XLR Input
• 1x Indoor 5pin XLR Thru
• 8x Indoor 5pin XLR Outputs
• Link Out Termination Switch
• DMX / RDM Protocol Switch
Dimensions & Weight:
• Length: 6" (152.4mm)
• Width: 19" (482mm)
• Height: 1.73" (44mm)
• Weight: 4.87lbs. (2.21kg)
Power:
• AC Input: 100-230V 50/60Hz
• Power Consumption: 3.1W @ 120V and 3.3W @ 230V
• Power Input Protection: Fuse, T1.25A/250 (5.2x20mm)
Thermal:
• Ambient Operational Temperature: -4F to 113F (-20C to 45C)
• Humidity: <75%
• Storage Temperature: 77F (25C)
Certifications & IP Rating:
• CE
• cETLus (Pending)
• FCC
• IP20
