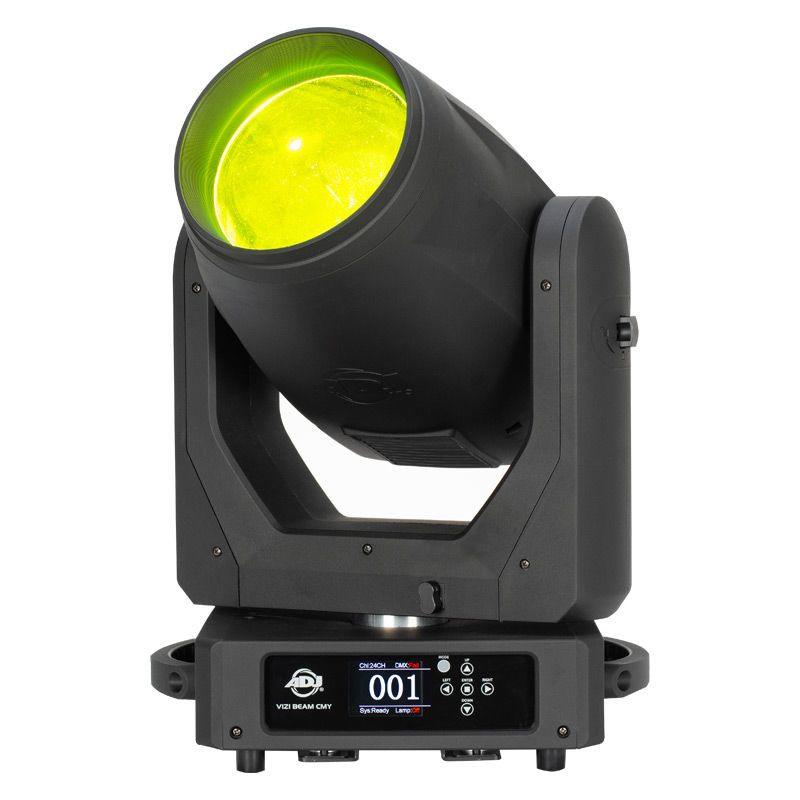

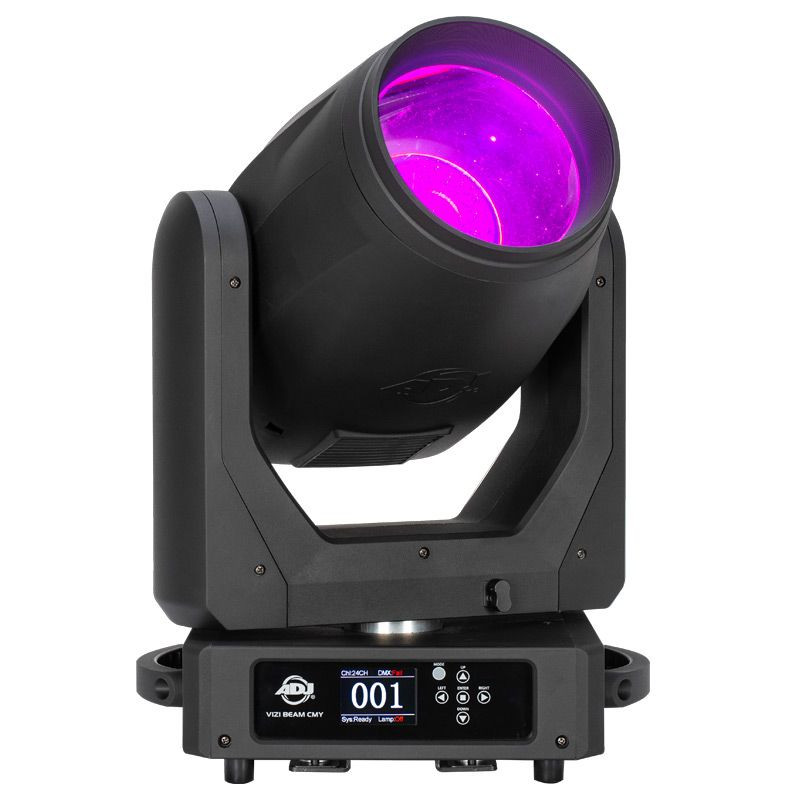

Elevate your lighting design with the ADJ Lighting Vizi Beam CMY, a cutting-edge moving head beam fixture designed for the modern lighting designer. Featuring a powerful 310W Osram Sirius HRI discharge lamp with a 6,000-hour lifespan, this potent fixture delivers stunning visuals with a precise 2-degree beam angle, as well as, high speed 3-phase pan/tilt motors for maximum performance.
Unlock a spectrum of possibilities with CMY color mixing, paired with a 14-color dichroic wheel that includes CTO (3200K), CTB (9000k) & UV filters). In addition, the fixture offers a versatile GOBO wheel loaded with 17 static patterns (including 4 are beam reducers) and a dynamic GOBO shake effect. Users can also enjoy the flexibility of on-board wireless DMX, motorized focus, and 16-bit fine focus for meticulous control.
The fixture boasts advanced features, including 2 rotating prisms (16-facet circular & 6-facet linear + prism overlay), a frost filter for creating wash effects, and pan/tilt locks for added stability during transportation and rigging. With a color LCD display, 0-100% smooth dimming, and various strobe speeds, the Vizi Beam CMY offers intuitive control.
Designed for convenience, it features outdoor-rated locking connections for power daisy-chaining and 5-pin DMX sockets. With multi-voltage operation and CE approval, the Vizi Beam CMY is a versatile and reliable lighting solution for any event or venue. Enhance your lighting experience with the Vizi Beam CMY where innovation meets performance.
Features• CMY Color Mixing
• On-Board Wireless DMX
• Motorized Focus + 16-bit fine focus
• 2-degree beam angle
• Frost Filter to create wash effect
• High quality glass lens
• 2 Rotating prisms:
• 0-100% smooth dimming
• Pan/Tilt locks
• Various strobe speeds
• OTA, wireless, firmware updates
• Fan cooled
SpecificationsLight Source:
• OSRAM Sirius HRI 310W PRO Discharge Lamp (6,000 hr.)
• Color temperature: 7850K (+/- 500K)
• CRI: 86 (+/- 5)
Color Wheel:
• 14 dichroic colors + white (Includes CTO (3200K), CTB (9000k) & UV)
• Indexable color wheel for split colors
• Separate Multi-Color Effect
GOBO Wheel:
• 17 static GOBOs + open (4 GOBOs are beam reducers)
• GOBO Shake Effect
Prism Wheels:
• 2 Rotating prisms
• 16 facet circular and 6 facet linear prisms
• Prisms Overlay
Control:
• Protocols: DMX512 & RDM
• Control Mode: DMX512 & Manual (On-board Controls)
• 2 DMX Channel Modes: 14/16 Channels
• Color LCD display with 4-button function menu
• 0-100% smooth dimming
• Various strobe speeds
• With Wired Digital Communication Network
Pan/Tilt:
• Pan: 540 degrees (plus 16-bit fine pan)
• Tilt: 270 degrees (plus 16-bit fine tilt)
• 3 Phase, High Speed, Pan/Tilt motors

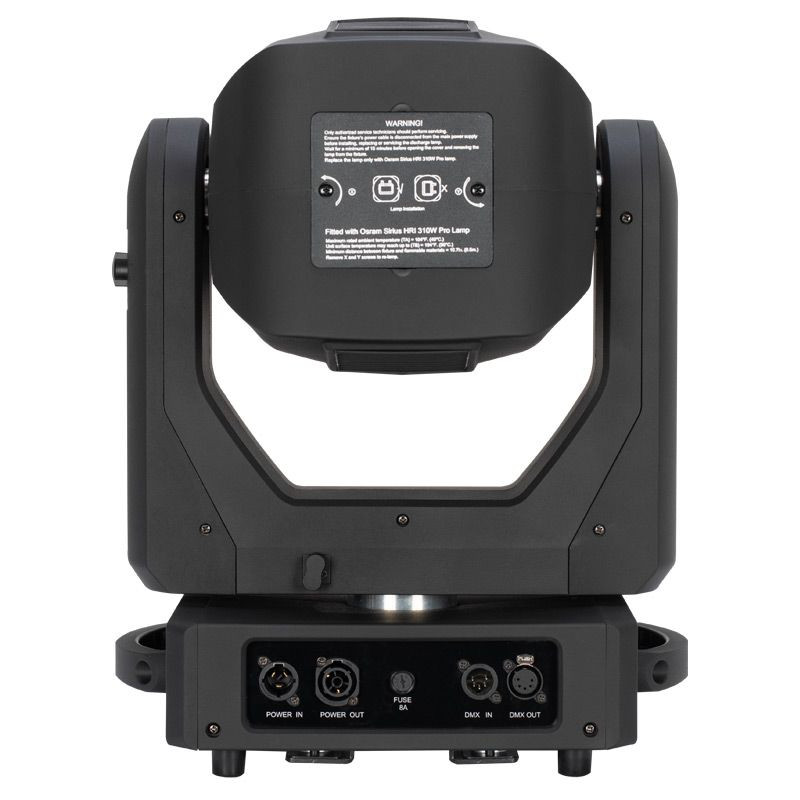

Connections:
• DMX Connections: 5-pin DMX In/Out (Data link max: 32 fixtures)
• Power Connections: Outdoor locking In/Out connections to daisy chain power
Electrical:
• Multi-voltage operation: 100-240V, 50/60Hz
• Max power consumption: 410W (@120V), 390W (@230V)
• Fuze Protected: 6.5A
Dimensions & Weight:
• Dimension: 9.8" (L) x 14.3" (W) x 17.9" (H) / 248 x 364 x 454.8mm
• Weight: 38.5 lbs. / 17.5 kg.
Approvals / Ratings
• CE
• cETLus (Pending)
What's Included:
• 2x Omega Brackets (107 Type)
• 2M, outdoor locking 14AWG power cord
