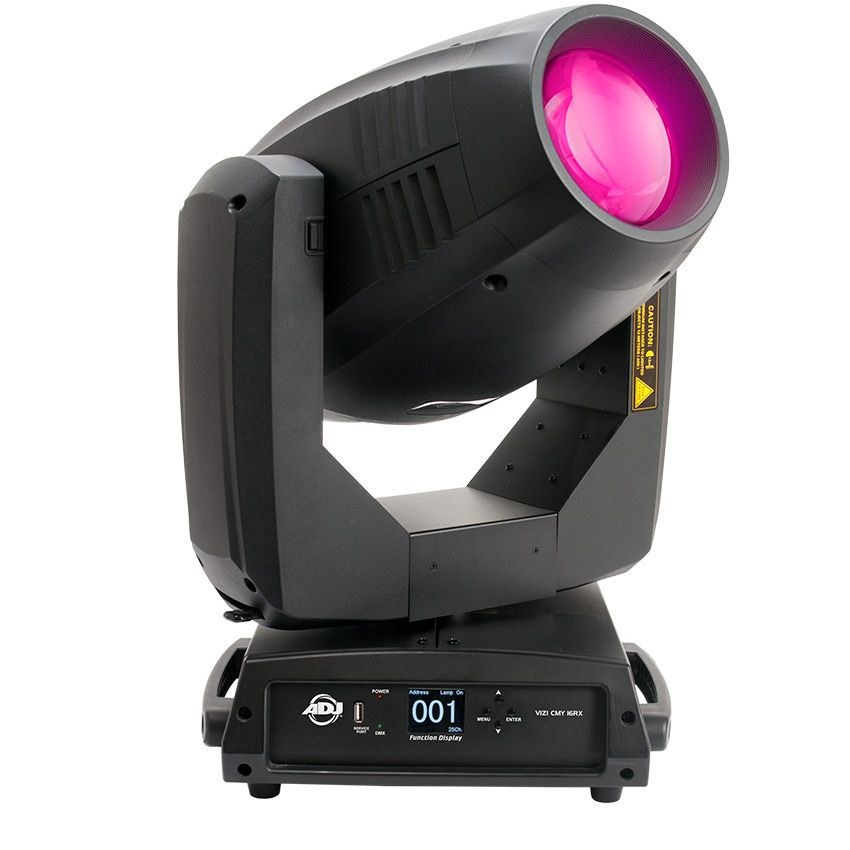

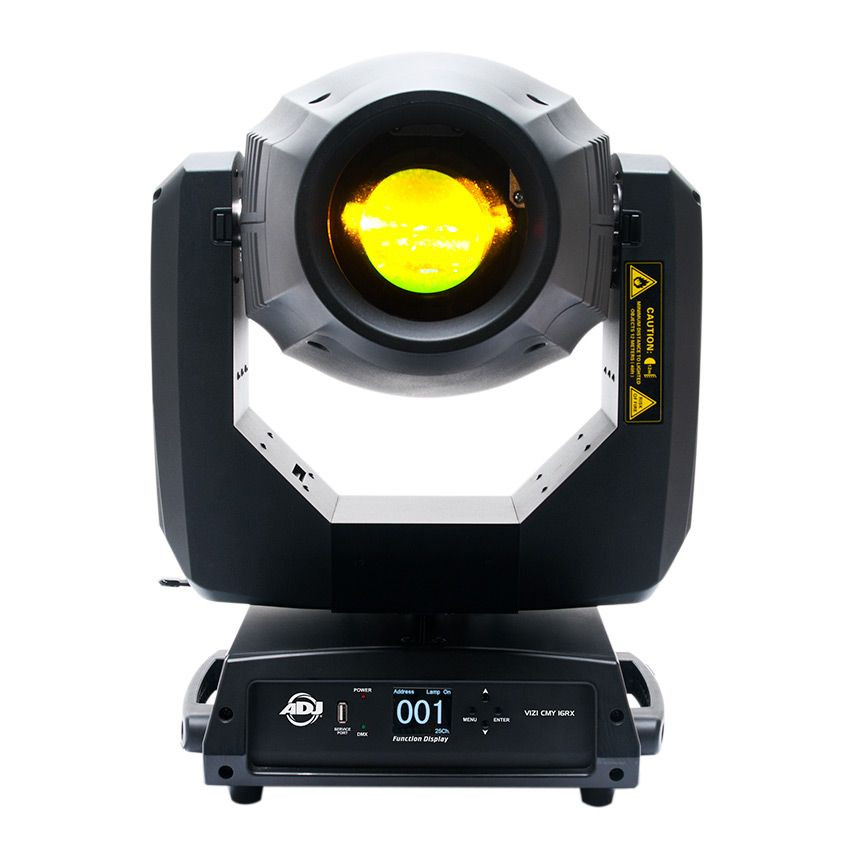

American DJ VIZI CMY16RX Hybrid Moving Head Spot Beam Wash

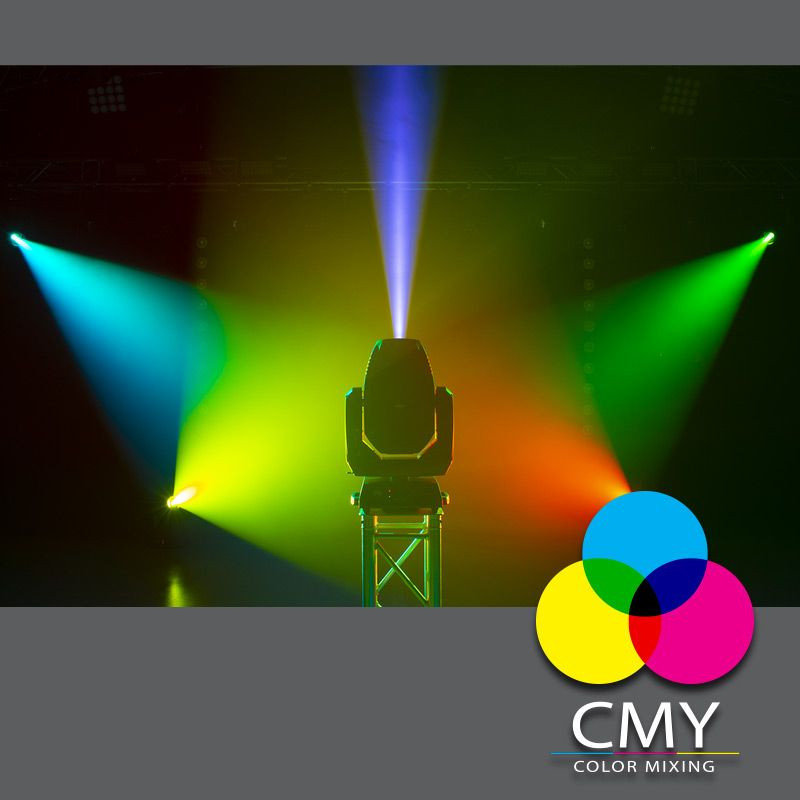

The Vizi CMY 16RX moving head fixture is powered by the revolutionary Philips Platinum 16R MSD discharge lamp technology (8000K, 1,500 hr). This lamp allows the unit to be very punchy, versatile fixture capable of wide washes of color, mid-air beam effects and break-up textures. It has two GOBO wheels. Wheel 1 has 15 static GOBOs plus spot. GOBO wheel 2 has 9 replaceable rotating GOBOs. The fixture has a zoom range of 6 22-degrees. There is an on-board 4-button LCD display, plus 3 and 5-pin DMX in/out connections.

The Vizi CMY 16RX will be the workhorse of any event, truly making it an all-encompassing lighting fixture for live events, stages, nightclub and churches.



Specifications
Light Source:
• Optical:
• Light Source: 330W Philips Platinum 16R MSD
• Color Temperature: 8000 K
• Life Expectancy: 1,500 Hrs.

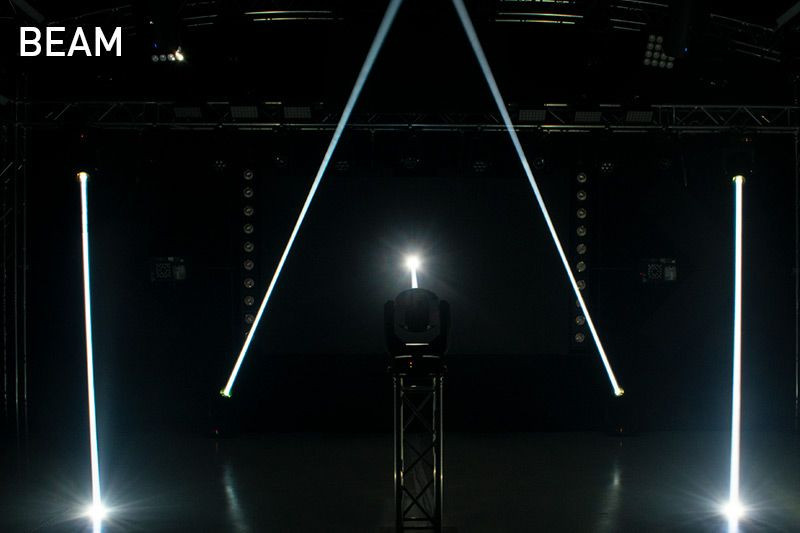

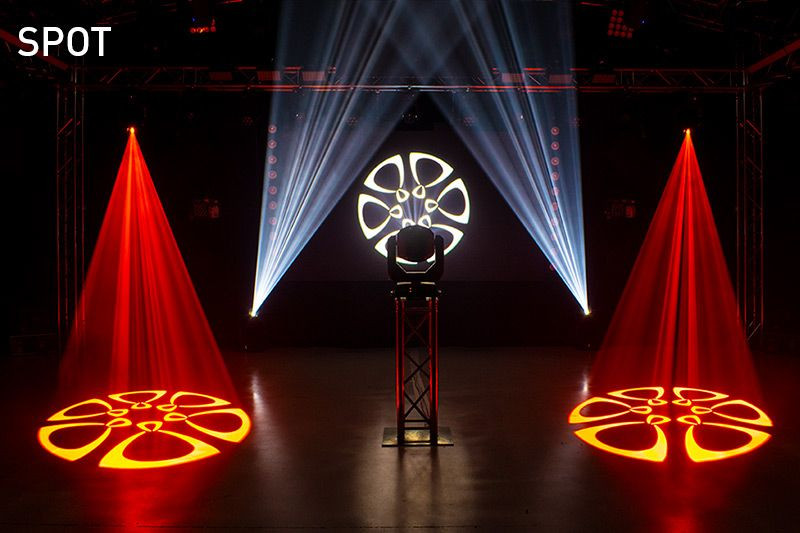

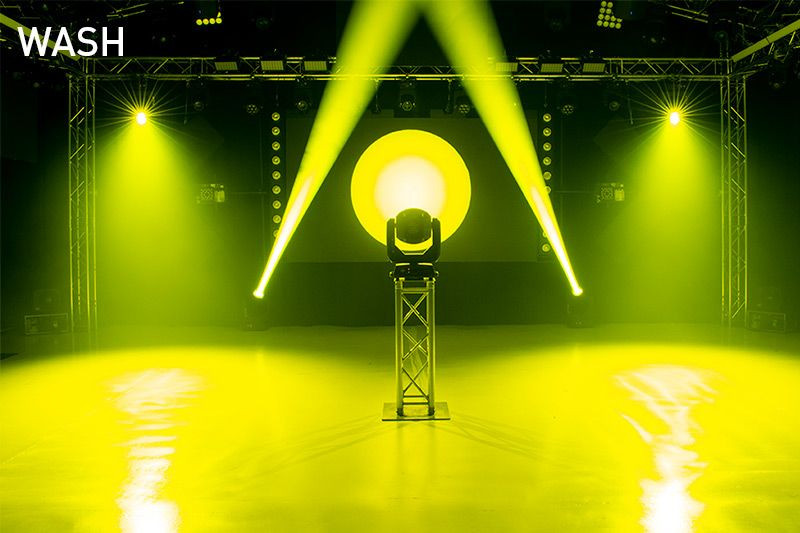

• Beam Angle: 2.3 10-degrees (Beam mode); 5 22-degrees (Spot mode); 22 63-degrees (Wash mode)

• Zoom Range: 6 22-degrees

Specifications:
• Colors: 9 colors plus white
• Full CMY Color Mixing
• Gobos: 2 separate wheels - Wheel 1: 15 static GOBOs plus spot, Wheel 2: 8 replaceable GOBOs
• Dimming: electronic 0%- 100%
• Shutter: motorized
• Zoom: motorized
• Focus: motorized
• Frost: frost filter + wash effect

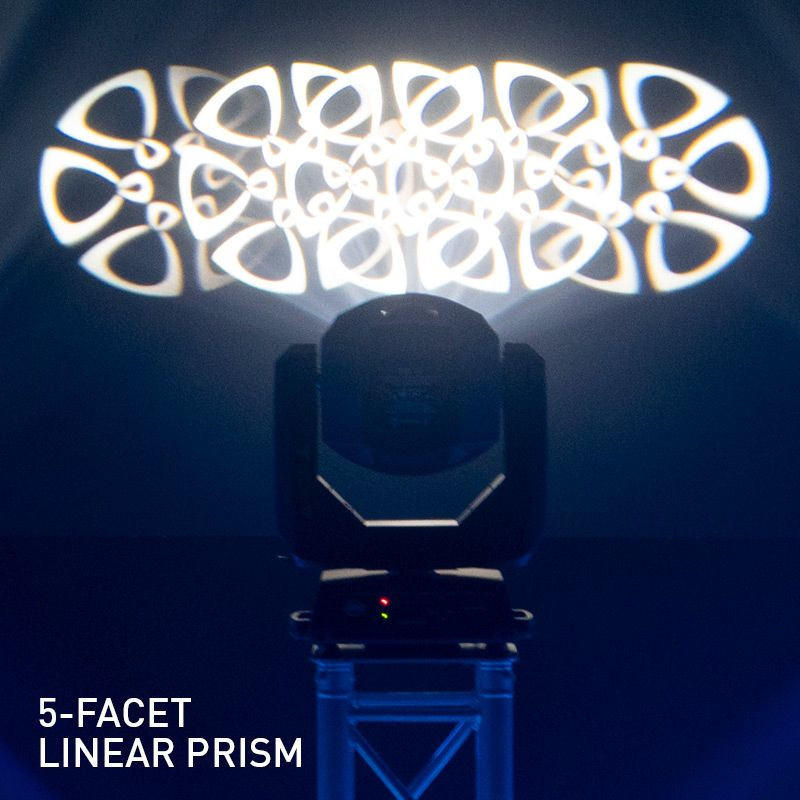

• Prism: 6-facet linear & 8-facet circular w/ macros, rotating & morphing
• Strobe: electronic
• Strobe Rate: 0.3-7HZ
• DB Rating @ 1Meter: Front: 54; Back: 54.7; Left: 53; Right: 53; Top: 55.2

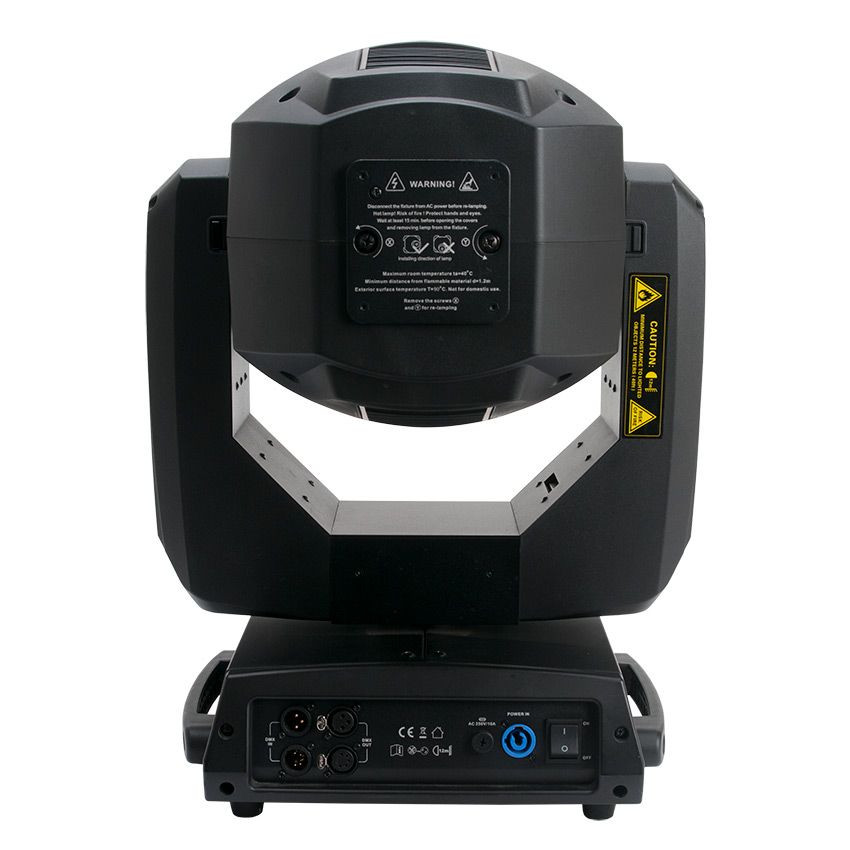

Connections:
• Power Input: powerCON
• Data: 3 & 5-pin DMX

Control:
• Control Protocol: DMX 512
• 2 DMX Channel Modes: 23 or 25 channels
• DMX Modes: 1 mode
• On Board: 4-Button LCD DMX display

Electrical:
• Power Consumption: 515W
• Power draw @120V: 5.2 amps
• Power draw @ 220V: 2.44 amps

• Multi-voltage: 100-240V, 50/60Hz

Dimensions / Weight:
• Dimensions (LxWxH): 25" x16.25" x 13" / 639x413x326mm
• Weight: 52 lbs. / 23.2 kg.

Certifications:
• Certifications: ETL Pending
• IP Rating: IP20: Dry area, No liquids

Whats Included:
• (2) omega clamps
• (1) powerCON to Edison
• Safety Cable
• Manual
