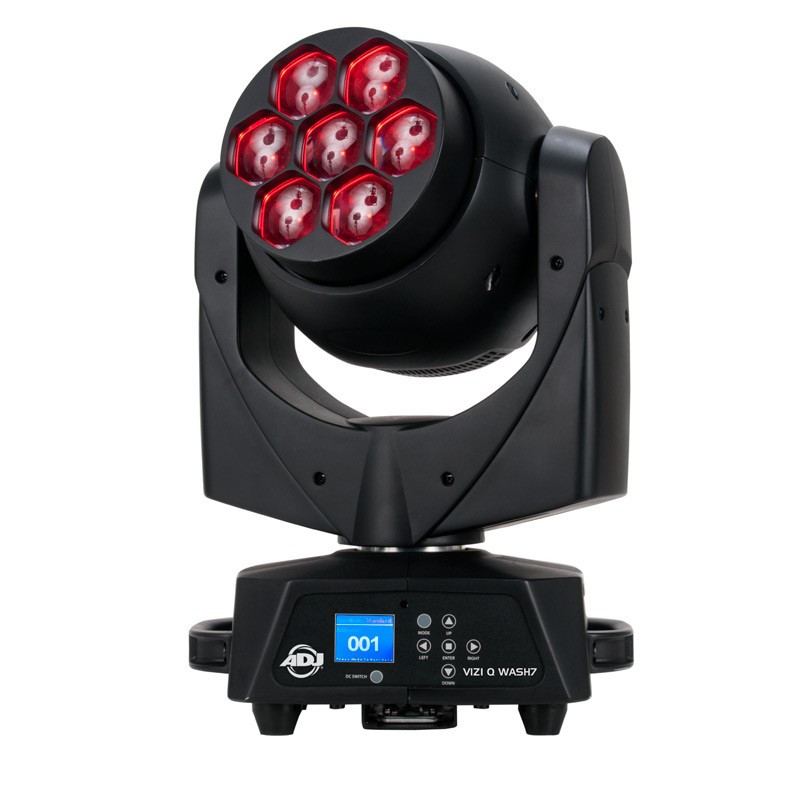

The Vizi Q Wash7 is a 280W professional moving head wash fixture with variable zoom (5 55-degrees) and seven 40W Quad (RGBW) LEDs. It features 64 built-in Color Macros, super fast pan/tilt movement, electronic dimming with 5 dimming curves and a pan/tilt inversion mode or contrasting movement when fixtures are linked together.
The Vizi Q Wash7 has 3 DMX channel modes, 3-pin or 5-pin DMX connections and powerCON In/Out power linking. Plus, this fixture is equipped with ADJ's WiFLY wireless DMX. This fixture is ideal for stages, theaters, churches, nightclubs, concert venues and event productions.
VIDEO
Optical
• Light Source: 7 (40) Watt quad RGBW LED
• Life Expectancy: 50,000 hrs LED
• Beam Angle: 555-degree
• Refresh Rate: 1.2KHz
Specifications
• Pan & Tilt Range:630 degree/Tilt 270-degree
• Colors: 64 built in color macros
• Dimming: Electronic
• Shutter: Electronic
• Zoom:Motorized 5 - 55
• Operational Modes: 2 modes Program / DMX
• Flicker Free: Yes

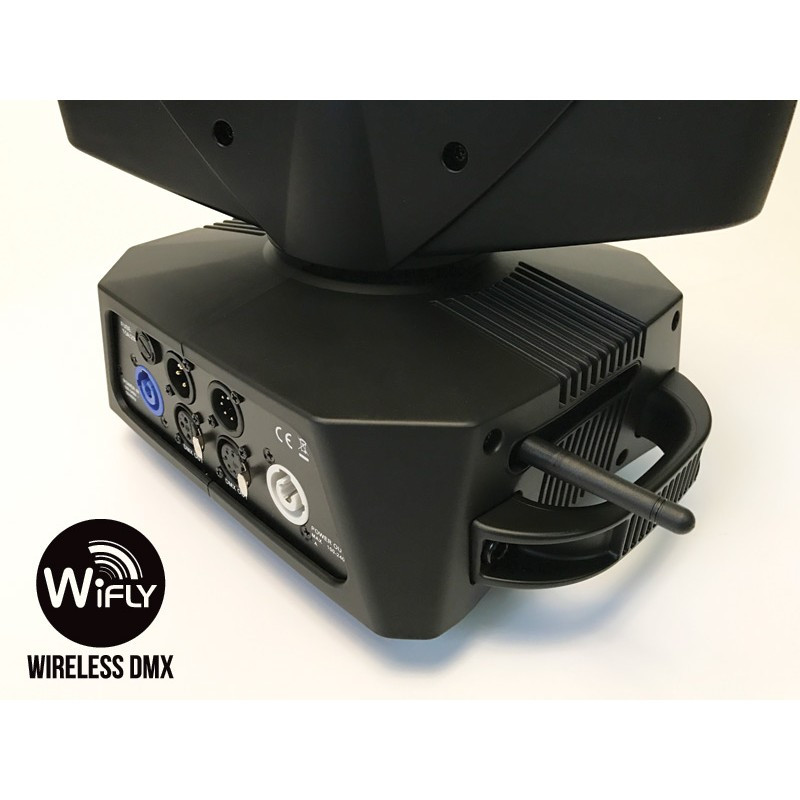

• Wifly EXR Wireless DMX Range: 2,500 feet (line of site)
• Wifly On/Off
• Dimensions (LxWxH): 11.75" x 8 x15.75"/300x200x400mm
• Weight: 19 lbs/8.5 kgs.

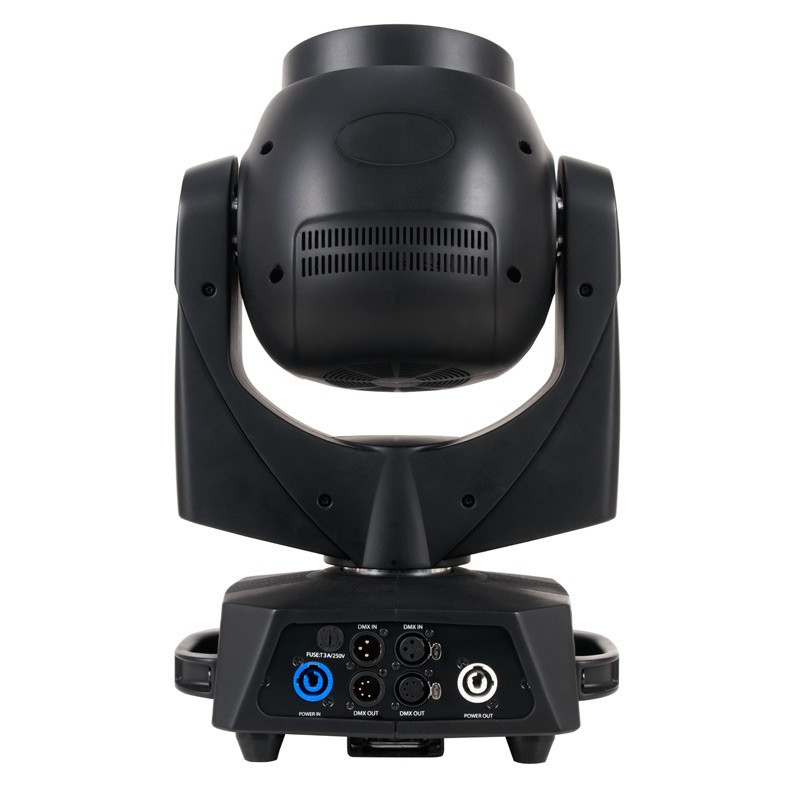

Connections
• Power Input: powerCON
• Power Pass through: powerCON In/Out
• Data: 3 & 5-pin In/Out DMX
Control
• Control Protocol: DMX
• DMX Modes: 2
• On Board: LCD menu with 180 inverse
• 16 Selectable WiFLY Address Channels
Electrical
• Input Voltage: 305W V.50Hz/60Hz
• Power draw @120V: 2.54 amp
• Power draw @ 220V: 1.39 amp
Certifications
• Certifications: ETL Approved
• IP Rating: IP20, dry place, no liquids
Whats Included
• Omega bracket
• powerCON Cable
• Manual
