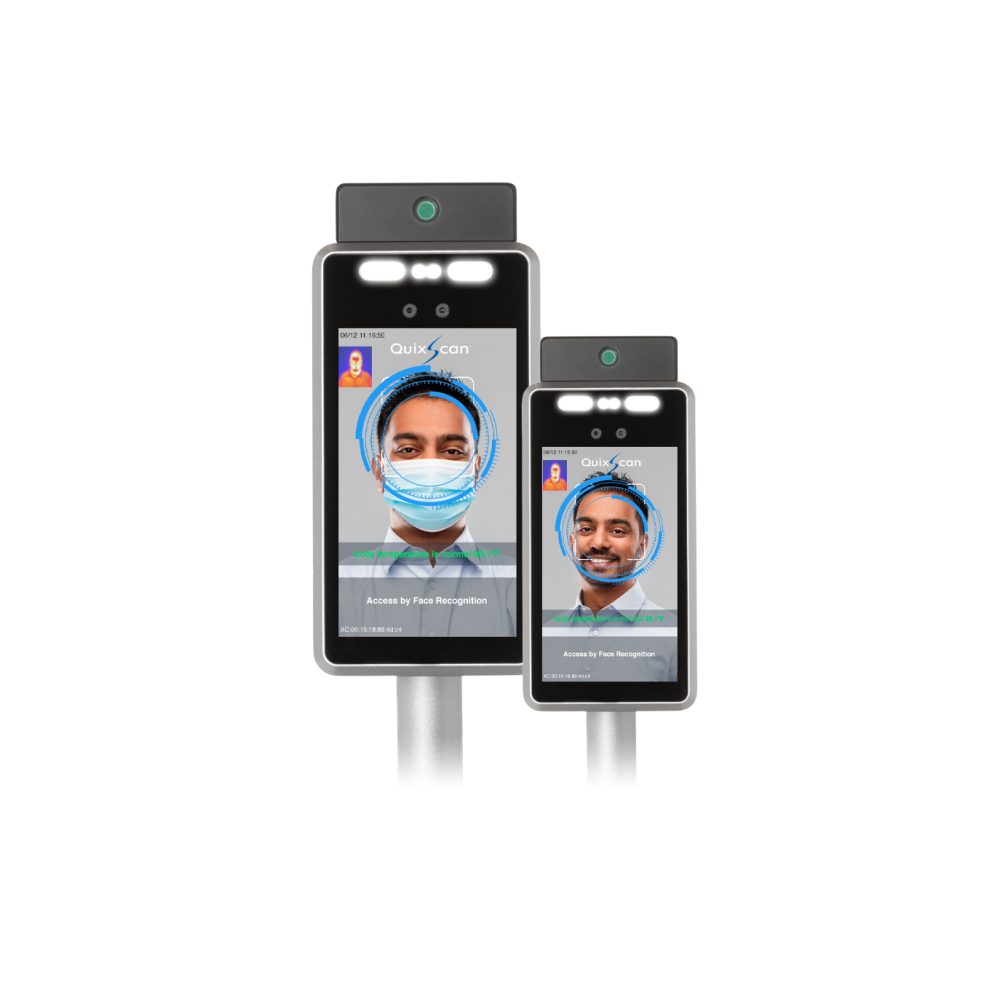

QuixScan AITD-720 AI Thermal Detector w/ TA System

Perfect for doctor's offices, restaurants, house of worship, gym/fitness studios, corporate environments, retail, airports, etc.

Shown with optional mounting accessories (not included):

• Wall Mount Bracket
• Table/Desk Stand
• Floor Stand

High Accuracy
• 0.5 F forehead temperature detection
• 99.9% Face recognition: the best solution for access control and time attendance system

Fast Detection
• 0.3s temperature + face ID

Wide detection Range
• 0.3 m - 1.2 m forehead body temperature detection
• 0.5 m - 2 m face recognition

Wear mask recognition
• Support face recognition with face mask, recognition rate >95%
• Supports 1: 1 or 1: N face comparison

Attribute recognition
• Supports detection of race, hard hat, skin color, etc.

Super backlight suppression
• Support face exposure, automatic adjustment according to strong light
• Support nighttime 3D noise reduction, provide best quality in darkness

Variety of door access control
• Support face recognition or door access control

Customizable multi-language
• English, Spanish, Italian, Russian, Japanese, Korean.

Hardware Specifications
Model: AITD-720
Item: Specification
Sensor Type: Uncooled infrared focal plane array
Infrared Thermography camera: 120*90
Thermal measurement distance range: 1 FT - 4 FT
Thermal measurement range: 30-45 degrees C
Thermal measurement accuracy: 0.5 degrees F

Hardware:
Processor: AI chipset ARM Cortex-A7 quad-core, 4 x high performance CEVA DSP
OS: Linux
Storage: 8GB EMMC+1GB DDR4
LCD: 7 inch, 1024*600 resolution

Camera:
Sensor: Dual 2Mp, low lux sensor
WDR: =120dB
FoV (Diagonal/horizontal/ vertical): 73/65/40
Iris: F2.0
Focus length: 4.3mm

Performance:
Biopsy: Anti-electronic screen, video, mask hacker attack
Face Recognize height: 1.22.2 meter, angle adjustable
Face Detection range: 0.5m2m, lens adjustable
Face library: 50,000 (default)
Attendance Record: 50,000
Face angle: horizontal 30 degree, vertical 30 degree

Interface:
Access control: Push out
Power supply: DC12V , 2A ( 9 -16V DC)
Power consumption: Less than 20W
Ethernet: 1 pcs RJ45 10M / 100M Ethernet
Wifi: 2.4G Wi-Fi
USB: 1 pcs USB 2.0

General:
Ambient Working Temperature: -40 F = + 100 degrees F
Dimensions: 5" x 10.25" x 1.5"
