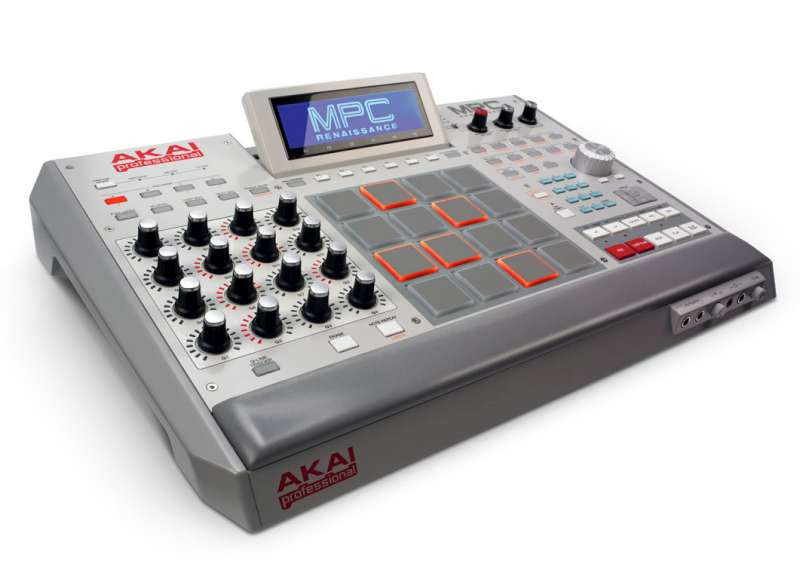

MPC Renaissance Hardware• Fuses legendary MPC production with the processing power of your computer
• Vintage Mode changes output sound character to MPC3000, MPC60 and more
• 16 backlit genuine MPC pads, 16 Q-Link controls, and adjustable backlit LCD screen
• Classic MPC Note Repeat, MPC Swing and MPC transport controls
• MPC SOFTWARE for Mac or PC with 64-track sequencing capability

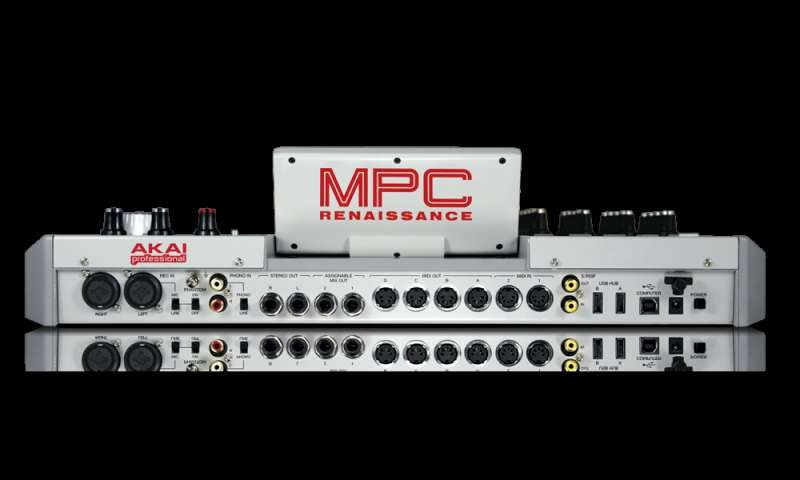

• Two XLR-1/4" combo inputs and dedicated turntable input
• Four-channel US B 2.0 audio interface and two-port US B 2.0 hub built in
• Up to eight pad banks?more than any other MPC ever
• Two MIDI inputs and four MIDI outputs
• Stereo 1/4" out, stereo assignable mix 1/4" out & S/PDIF I/O
MPC Software• 64-track sequencing capability
• Massive 6GB+ sound library, including all of the sounds of the classic MPC3000
• Instant mapping and real-time adjustment of VST plug-ins
• Record each track as an MPC drum program, Keygroup program or VST plug-in
• Works alone as your main DAW or works seamlessly with your current studio as a VST/AU/RTAS plugin
• Supports WAV, MP3, AIFF, REX and SND
• Supports samples and sequences from any MPC ever made
• Mac and PC-compatible
Technical SpecificationsGeneral• Display: 360 x 96 dot graphic LCD w/back light
• Dimensions:19.75" x 12.9" x 2.75"
(4.9" at max display angle)•Weight: 10.5 lbs
• Power Supply: External, 12v, 3A
• Power Requirement: 24W Max
• Footswitches: 2
• USB Hub: 3 Port
• MIDI I/O interface: 2 IN / 4 Out
Sequencer• Maximum events: unlimited (based on CPU)
• Resolution: 960 pulses per 1/4-note
• Sequences: 128
• Tracks per sequence: 64
• Drum pad: 16 (velocity and pressure sensitive)
• Drum pad banks: 8
• Sync mode: MIDI clock, MIDI Time Code
• Transport Controls: MIDI Machine Control
MPC Software• Polyphony: 64
• Dynamic filtering: 1 State Variable Filter per voice
(up to 8 pole, depending on type)•Filter types: Low Pass, Band Pass, High Pass, Band Boost, Band Stop, Analog Modeling, Vocal Formant
• Number of programs: 128
• Memory capacity: System Dependent.
2gb Minimum / 8gb Recommended•Plugin Supported as Host: VST (Mac / PC), AU (Mac)
• Plugin Formats Available to other DAWs: VST, AU (Mac Only), RTAS
Effects
• Program Effects: 4 Insert Slots per Pad, 4 Sends to Track Effects per Pad
• Track Effects: 4 Inserts and 4 stereo Sends per Track
• Master effect: 4 Master Effect Slots
Over 50 high-quality effects Included•Instrument Plugin Formats supported: VST (Mac / PC), AU (Mac)
• Audio files supported: WAV, MP3, REX, AIFF, SND
Audio and MIDI I/O• Sample Rates Up to 24 bit / 96 kHz
Zero-latency hardware monitoring via adjustment knob•Record input (L and R): XLR/ 1/4-inch Combo x 2 balanced -40dBu, input impedance 11k ohms; RCA with PHONO preamp
• Max. Input level: +10dBu
• Digital Input: 24-bit RCA-pin x 1 S/PDIF
• 4 Audio Outputs: 1/4-inch phone x 4 balanced +11dBu, output impedance 1k Ohms
• Max. output level: +18dBu
• Phones output: 1/4-inch stereo phone x 1, 200mW / 100 ohms; 1/8-inch stereo phone x 1, 200mW / 100 ohms
• Digital output: 24-bit RCA-pin x 1 S/PDIF
• MIDI inputs: 5-pin DIN x 2
• MIDI outputs: 5-pin DIN x 4
• USB: 2 port USB Hub
• Footswitches: 1/4-inch x 2
• Standard accessories: Power cable, Operator's manual
Minimum Computer specs:• Mac: 1.8 GHz G4/G5 or faster (Intel Mac recommended), 2 GB RAM (4 GB recommended, if supported by your computer), Mac OS X 10.4.11 (10.5 or later recommended), DVD-ROM drive
• Windows: 2 GHz Pentium 4 or Celeron compatible CPU or faster (multicore CPU recommended), 2 GB RAM (4 GB recommended on Windows Vista and Windows 7), Windows XP (home or Pro), Windows Vista or Windows 7, DVD-ROM drive
