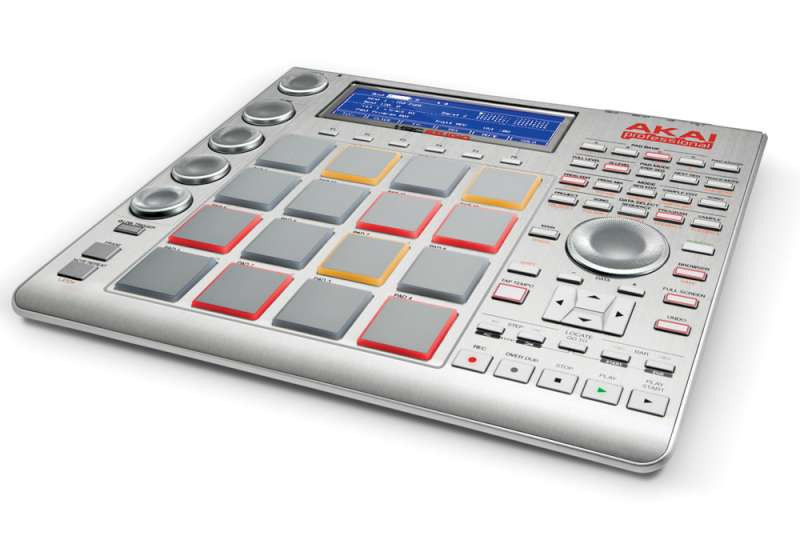

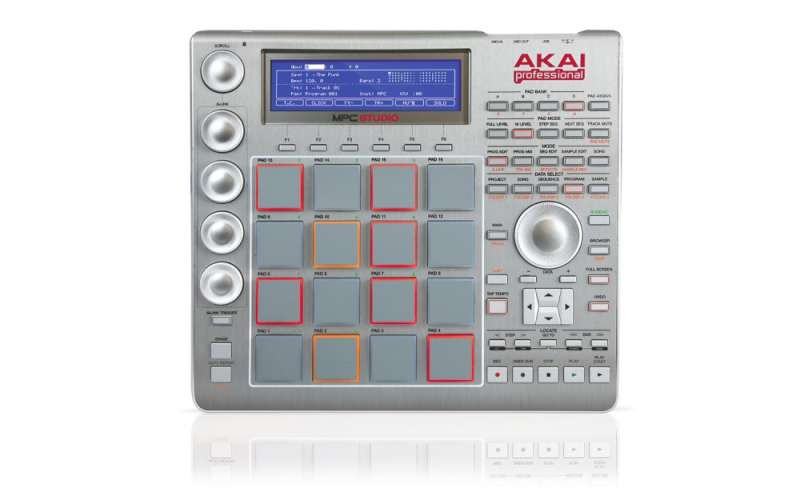

PC Studio Hardware• Fuses legendary MPC production with the processing power of your computer

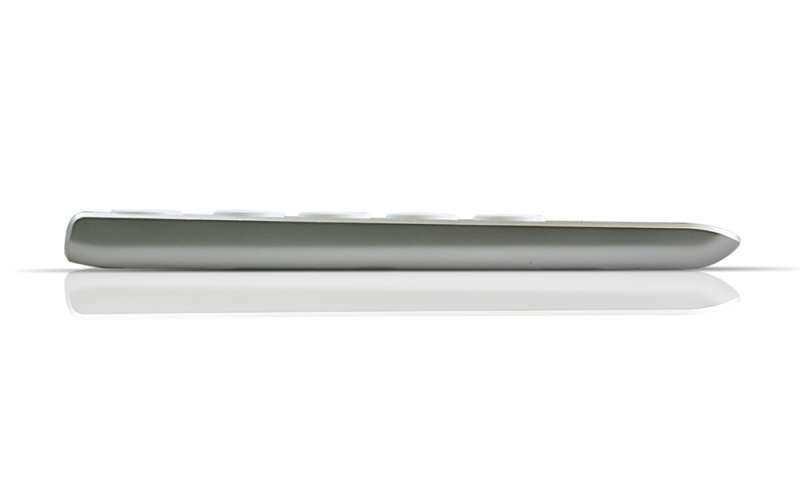

• Compact design is less than 1" thin and fits easily into a laptop bag
• MPC SOFTWARE for Mac & PC with 64-track sequencing capability
• 16 backlit genuine MPC pads, legendary MPC workflow & MPC Swing
• USB-powered with low-profile knobs and brushed aluminum body
• Large LCD screen allows you to make tracks without having to look at your computer
• Four touch-sensitive knobs provide enhanced MPC software control

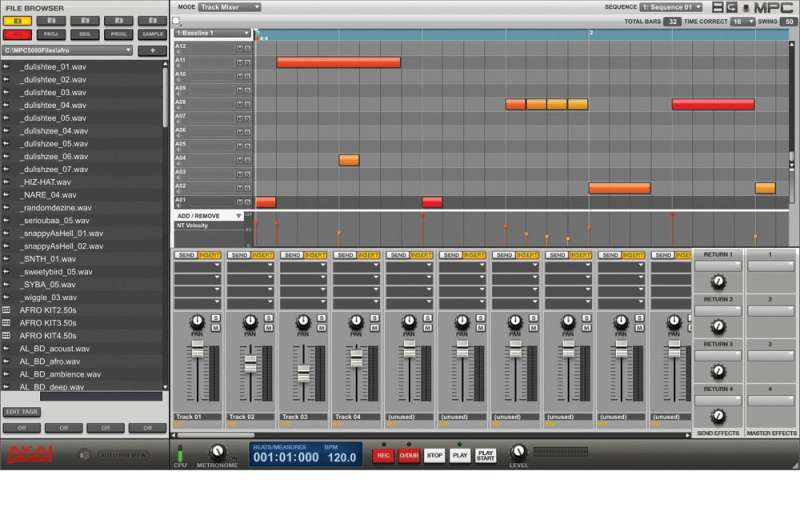

MPC Software• 64-track sequencing capability
• Massive 6GB+ sound library, including all of the sounds of the classic MPC3000
• Instant mapping and real-time adjustment of VST plug-ins
• Record each track as an MPC drum program, Keygroup program or VST plug-in
• Works alone as your main DAW or works seamlessly with your current studio as a VST/AU/RTAS plugin
• Supports WAV, MP3, AIFF, REX and SND
• Supports samples and sequences from any MPC ever made
• Mac and PC-compatible
Technical SpecificationsGeneral• Display: 360 x 96 dot graphic LCD w/back light
• Height:0.73 -0.89 inches (18.5-22.6mm)
• Width:11.2 inches (284mm)
• Depth:10.1 inches (257mm)
• Weight: 1.96 pounds (0.89kg)
• Power: USB or 6VDC/1A AC adaptor
• MIDI I/O interface: 1 IN / 1 Out via TRS to MIDI breakout cables (Included)
Sequencer
• Maximum events: unlimited (based on CPU)
• Resolution: 960 pulses per 1/4-note
• Sequences: 128
• Tracks per sequence: 64
• Drum pad: 16 (velocity and pressure sensitive)
• Drum pad banks: 8
• Sync mode: MIDI clock, MIDI Time Code
• Transport Controls: MIDI Machine Control
MPC Software• Polyphony: 64
• Dynamic filtering: 1 State Variable Filter per voice
(up to 8 pole, depending on type)•Filter types: Low Pass, Band Pass, High Pass, Band Boost, Band Stop, Analog Modeling, Vocal Formant
• Number of programs: 128
• Memory capacity: System Dependent.
2gb Minimum / 8gb Recommended
• Plugin Supported as Host: VST (Mac / PC), AU (Mac)
• Plugin Formats Available to other DAWs: VST, AU (Mac Only), RTAS
• Audio files supported: WAV, MP3, REX, AIFF, SND
Effects
• Program Effects: 4 Insert Slots per Pad, 4 Sends to Track Effects per Pad
• Track Effects: 4 Inserts and 4 stereo Sends per Track
• Master effect: 4 Master Effect Slots
Over 50 high-quality effects Included•Plugin Formats supported: VST (Mac / PC), AU (Mac)
Audio and MIDI I/O• MIDI inputs: 5-pin DIN x 1 via TRS to MIDI breakout cable (included)
• MIDI outputs: 5-pin DIN x 1 via TRS to MIDI breakout cable (included)
• Standard accessories: Power Supply, Operator's manual TRS to MIDI breakout cable x2 (Included)
Minimum Computer specs:• Mac: 1.8 GHz G4/G5 or faster (Intel Mac recommended), 2 GB RAM (4 GB recommended, if supported by your computer), Mac OS X 10.4.11 (10.5 or later recommended), DVD-ROM drive
• Windows: 2 GHz Pentium 4 or Celeron compatible CPU or faster (multicore CPU recommended), 2 GB RAM (4 GB recommended on Windows Vista and Windows 7), Windows XP (home or Pro), Windows Vista or Windows 7, DVD-ROM drive
