FEATURES:Dual Functionality GRP/Aux Mode switches reverse aux master section with the group faders giving up to 8 monitor sends with inserts on 100mm faders. Another under panel switch converts the Mono control and XLR output to an engineer's listen wedge output
Frames Available 16, 24, 32, 40 channels available. A, B, C & D versions of each frame size provide choice of stereo configurations: A: all mono; B: 4 stereo to the right of master section; C: 4 stereo on outside right; D: 8 stereo to right of master section
8 Audio Groups Assignable from paired routing buttons and pan from channels. Groups access LR busses via a pan control. Groups 5-8 have XLR outputs, 1-4 are to the mix only. All have inserts.
Optional 25-way D connector on rear panel can provide +4dBu outputs for all groups for recording purposes
8 Auxiliary Sends 8 auxiliary switchable pre/post fade in blocks: 1-4, 5-8. Aux masters are rotary controls. Auxes 1-4 have inserts and XLR outputs.
Auxes 5-8 have (TRS) outputs for FX sends; these provide XLR outputs with inserts when the GRP/Aux reverse switches are pressed
12 x 2 Matrix 2 matrix outputs (A & B) are fed from the groups and the LR busses and the stereo returns. They are controlled by 60mm faders, have AFL and are connected to the groups regardless of GRP/Aux mode. There is a balanced output option
4 Mute Groups 4 selector switches on input channels assign the mute groups. These are controlled by 4 large illuminated master mute buttons
4 Band EQ plus HPF Seperate controls for sweep and cut/boost on mid bands. HPF @ 100Hz is switchable

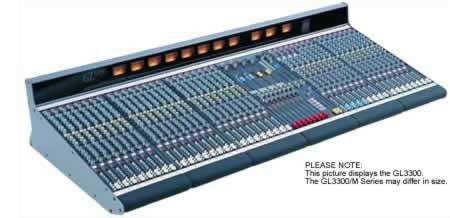

Stereo Channels The GL3300 can be ordered with 0, 4, or 8 stereo input channels. Mic or line source on either 2 XLRs or 2 TRS jacks with 20dB pad/sensitivity, separate gain and mono select controls for L & R, and 4-band EQ
2 Stereo Returns TRS line inputs. 60mm fader control with pan & routing to group, L&R and the matrix
Engineer's ToolboxHeadphone and wedge monitor controls. 3 segment LED meters on input channels and 4 segment LEDs on GRP/Aux masters. 12 segment bar meter on L & R follows the PAFL system. Channels have direct outs (TRS) for recording.
2 track record/monitoring/replay. Talkback, with trim, possible to any of the 8 auxes
PSU RPS11 300W 3U rack mounting power supply. RPSD2 1U dual supply combiner allows 2 PSUs to link up to the console for redundant supply backup, with monitoring
Configuration Options Internal links to configure: individual aux sends as pre/post fader & pre EQ. Isolate pre-fade aux from channel mute. Pre-fade direct out. Mono out as pre-fade
TECHNICAL SPECIFICATIONS:• Operating
Internal operating level: 0dBu channels, -2dBu mix
Internal headroom: +21 dB channels, +23 mix to output
Max outputs: balanced +27dBu >2kohm max load; unbalanced +21dBu >2kohm max load
• Frequency Response (referred to 1kHz @ +4dBu, 20Hz to 30kHz)
Mic in to L-R out, 40 dB gain: 0/-1dB
Line in to L-R out, 0 dB gain: 0/-1dB
• Distortion: (THD+noise @ +14dBu, 1kHz output)
Mic in to L-R out, 40 dB gain: 0.006%
Line in to L-R out, 0 dB gain: 0.006%
• Crosstalk: (referred to driven channel @ 1kHz)
Adjacent channel: <-100dB
Fader closed: <-90dB
Mute on: <-80dB
Pan pot isolation: <-72dB
• Noise Performance: (measured rms, 22kHz bandwidth)
Mic in EIN (150 ohm source): <-128dB
Line preamp, 0dB gain: <-93dBu
L-R residual noise: <-98dBu, 102dB s/n
L-R faders '0', nil routed: <-90dBu, 94dB s/n
L-R mix noise (16 channel routed): <-86dBu, 90dB s/n
Group mix noise: <-87dBu, 91dB s/n
CMRR: Mic in, 40dB gain @ 1kHz: >80dB
• Metering
Input Meters: 3 segment LED
Mix meters: 4 segment LED (signal, 0, +6, peak)
Output meters: 12 segment LED
LED meter response: Peak reading
Peak indicators: On 5dB before clipping
Signal Indicators: on -20dBu
Integral VU meterbridge: Illuminated VU moving coil meters
