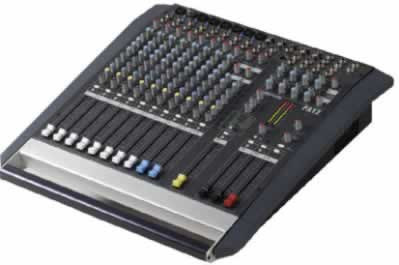

Allen & Heath PA12 12Input Stereo Live Mixer

Be the first to review this product

Allen & Heath
Authorized
Dealer

Dropships Ships Directly From The Supplier
Allen & Heath can usually ship this item directly to our U.S. customers after 1 to 3 business days processing time, depending upon their stock levels. Order now! We'll notify you promptly if we hear of any delay.
Free Shipping FREE Ground Shipping to the contiguous U.S. (details)
$699.00
Affirm Financing
Future Pay
X
    • Buy Now and Earn 1398 PDJ Bucks ($13.98)! Applies only to registered, domestic U.S. customers. Exact value may vary once logged in.
allen & heath pa12
The PA12 mixer has been designed with all the tools you will need to run a standard stereo PA system. With ALLEN

If you care about quality you'll also appreciate the build standards that the PA series conforms to, including the same individual vertical circuit boards, nutted pots and solid copper buss interconnection as our acclaimed ML series consoles. As for audio performance, PA12 mixers have the wonderfully full, open, natural quality that you'd expect from a professional ALLEN&HEATH desk.

FEATURES:
* Mono Inputs:
24 mono channels with Mic (XLR) & Line (TRS) inputs. Line input overrides the XLR input. Individual +48V phantom power switches are provided. New padless two-stage preamp with smooth gain law. Line input goes to second stage for better matching and performance. Switched 100Hz high pass filter. Insert point. 4 band EQ. 4 aux mixes. Mute with LED. PFL button with LED (functions as peak indicator). 100mm fader.
* 4 Band EQ:
Shelving LF (60Hz), and HF (12kHz). Fixed LM (250Hz), and swept HM (300Hz - 6kHz). The fixed 250Hz control has been carefully selected to provide reduction of muddy' sounds and enhance warmth'
* Dual Stereo Channels:
Four stereo channels with two unbalanced stereo inputs on each. One is RCA one is TRS jack. Independent gain controls provide source mixing in the channel strip. The top inputs (RCA) can be switched direct to L&R instead of the channel strip providing extra returns. Two band shelving EQ. 4 aux mixes. Stereo balance, mute with LED, PFL with LED, and 100mm fader as mono channels.
* 4 Auxiliary Sends:
From all channels: 2 pre-fade for foldback mixes - these have 100mm fader masters, mute switch with LED, AFL with LED, and TRS outputs (can be routed internally to output section). 1 post-fade aux mix for FX - this feeds the internal FX and has a TRS jack output for external FX. 1 post-fade aux mix to TRS jack output is provided for external FX or special feeds.
* Mix Outputs:
Main stereo mix output has 100mm fader control & mute with LED. TRS jack outputs. Mono sum output with level control with switch for subwoofer mode to TRS jack. Record output (RCA) analogue + SPDIF switchable pre/post fader. Twin 12 segment LED bar meter shows program (or PFL /AFL). Insert points on TRS jack for external processing. Output EQ and routing to internal amplifiers / external systems is provided.
* Output EQ:
4 band semi-parametric EQ is provided in the output section, this affects the TRS slave outputs, and the internal constant power amplifiers. This offers more control than graphic equalisers for precise management of speakers, especially foldback / monitors. Source selector allows output EQ section to be used on Left / right, L&R sum / foldback1, or foldback1 / foldback2.
* Digital FX :
16 program digital FX processor provides reverbs, delays, chorus and others, inc combined. This FX module takes its feed from the post-fade FX aux on the mono & stereo channels. The output of the FX module is controlled by a 100mm fader with mute & PFL and is routed to the stereo mix and FB1&2 with post fade level controls. At this point, 2 TRS inputs with level control provide a way of combining external FX with the internal unit. Internal FX unit can be switched off to use external only if preferred. A footswitch TRS jack is provided to mute the FX channel. Editing of FX can be done via MIDI using ALLEN&HEATH software editor available free from resource CD or our website.
* Master Section:
Background music BGM mode - plays 2 track input into the main mix post fader, allows user to pull down fader (whilst patching, taking a break, or during walk-in) and leave music playing through the amplifiers / speakers. 2 track input (RCA) with level control to L&R - feeds headphone monitor selector (checking recording). Twin, 3 colour 12 segment LED meter displays active monitor source. Large LED indicates PFL / AFL active - signal overrides L&R / 2TRK monitor source selection. Standby switch uses relays to disconnect the speakers. 2 track output (RCA) analogue + SPDIF allows direct to digital recording. Switchable pre / post master L&R fader. Mono sum out with level (TRS) - mode switch to provide sub feed with 100Hz low pass filter. Phones out (TRS) with level.
* PSU:
Solid & reliable internal PSU. 1600W design.
* Lamp:
4-pin XLR socket
* DIMENSIONS:
Width Height Depth Weight:
PA12 (desk) 525 mm (20.6") 178 mm (7.0") 539 mm (21.2") 13 kg (28 lbs)
PA12 (rack) 484 mm (19.0") 446 mm (17.6") 178 mm (7") 13 kg (28 lbs)











Additional Information

UPCN/A
SKUPA12
ManufacturerAllen & Heath
Product ConditionNew
ReturnableYes
