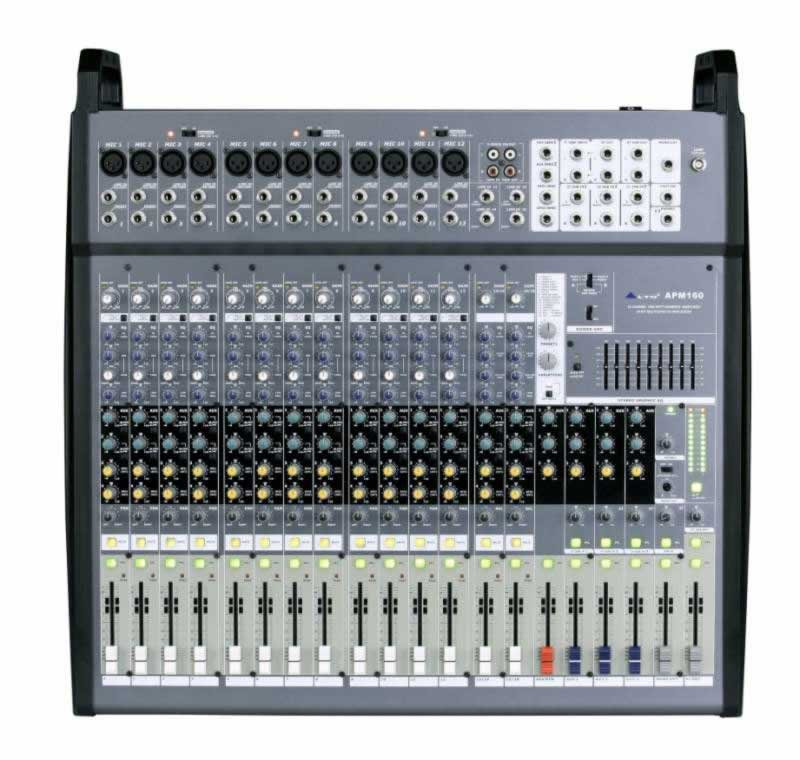

Alto APM160 16-Channel 2+2-Bus Powered Mixing Console

alto apm160
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

Unavailable This item has been discontinued or is no longer available.
Buy on Amazon
Based on the same circuitry of our advanced D Series amplifiers, APM mixer includes a switch mode power supply and an advanced digital circuitry for the power amplifier section. The result is solid and clear lightweight power that is unprecedented for mixer of this size and weight. Mixer section includes studio level microphone preamplifiers, master
EQ and DSP unit.

• Ultra - low noise discrete Mic Preamps with + 48V Phantom Power
• Extremely high headroom offering more dynamic range
• 60 mm high precision faders
• Each input channel with Mute, SOLO function, Overload & signal present LEDs and low cut filters (except for stereo channel)
• MAIN L - R signal assignment switchable
• 4 AUX sends per channel: 2 PRE / POST faders switchable for monitoring application and effects & sound processor input; 2 POST faders for internal digital DFX or as external send
• 4 - band fixed EQ on stereo line channels
• 16-Channel 2 + 2-Bus Powered Mixing Console
• 3 - band EQ with swept mid on microphone channels
• Channel inserts and direct outputs on each mono channel plus main mix insert for flexible connection of outboard equipment
• 24 - bit DSP effect for 256 choices (16 presets 16 variations)
• Stereo 9 - band graphic EQ
• BNC socket for connecting lamp
• Control room / phones matrix
• 2 - TRACK IN assignable to main mix, control room / headphone outputs
• Highly accurate 12 segment output level meters

• 12 mic / line input channels and 2 stereo line inputs
• 12 XLR + 1/4" TRS BALANCED Mono channel inputs (MIC/LINE)
• 2 stereo channel inputs (1/4" TRS BALANCED)
• 12 mono channel inserts
• 4-Way Speakon + 6.3 Phone Jack for output connection
• Main output: 2 x 1/4" TRS unbalanced
• 2 stereo outputs for monitoring
• Power Output:
Stereo: 2 x 750W continuous EIAJ (4 ohm)
Bridged: 1 x 1500W continuous EIAJ (8 ohm)
• Power AMP Mode: Switchable for STEREO L / R, AUX1 + MONO / MONO BRIDGE
• Dimensions (WxDxH): 581 x 560 x 44 / 135mm (22.9" x 22" x 1.7/5.3")
• Weight: 12.6kg (27.8 lb)

Additional Information

ManufacturerAlto Professional
Product ConditionNew - On Clearance
