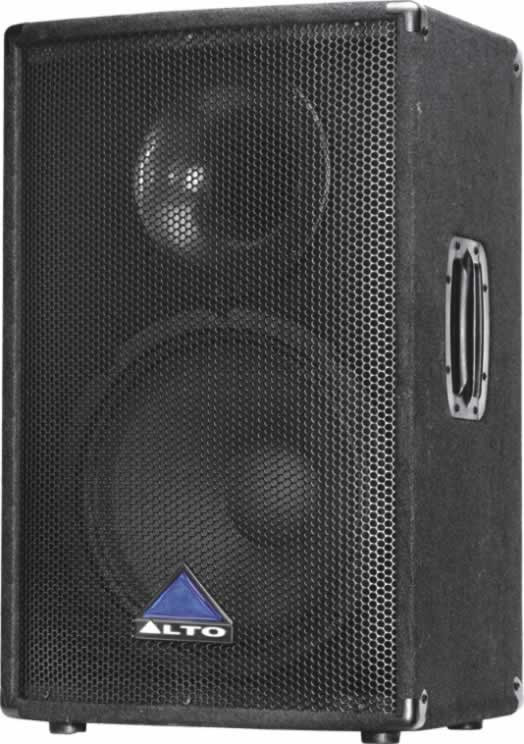

The Alto ELVIS-12A is a 2-way 12" Active Speaker Cabinet.
FEATURES:• Power System:
235W Bi-Amp (200W-LOW/35W-HIGH) RMS
300W Bi-Amp (235W-LOW/65W-HIGH) in EIAJ Standard • Frequency Response (|10dB) : 57Hz-18kHz, FLAT/47Hz-20kHz, EQ. LOUDNESS
• Maximum SPL @ 1m: 121dB continuous/124dB peak
• Coverage (HV) : 70 70 nominal
• Transducer Low: 12" Woofer, 2" voice coil, with double ventilation
• Transducer High: 1" Neodymium on Spherical Horn (Tractrix contour)
• Active Crossover : 2kHz under analog processor, FLAT or EQ. LOUDNESS
• Input Connectors : LINE-COMBO/LINK-XLR-M Balanced (15kO)
• Input Level: Line 0dBu
• External Control: Volume Control/Flat-Eq.Loudness/Power ON with Green LED/ Clip Limiter with Red LED/Ground Lift
• Power Supply: 120-240 Volt - Switching Power Mode
• Enclosure Construction: Chipboard cabinet, glued and reinforced, covered in black carpet; black metal corner and rubber foot
• Mounting: One standard pole-mount plus one plastic handle
• Dimensions (HWD): 603 394 355mm (23.7" 15.5" 14")
• Weight: 19.7kg (43.4 lb)
