Alto EQU231 MKII Graphic Stereo 31-Band Equalizer

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

alto equ231mk2

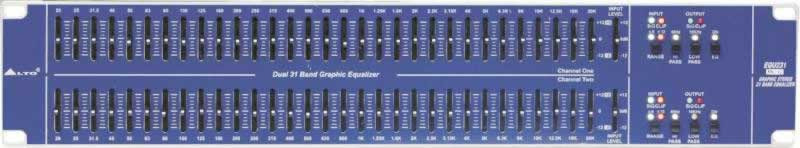

alto equ231mk2 Alto EQU231 MKII Graphic Stereo 31-Band Equalizer
ALTO graphic equalizers are successfully used worldwide by professional touring Companies and Recording Studios. They are also present in several fixed sound installation, worship places and conference center. With their 117dB of S/N ratio and ultra low distortion, they are the quietest and the most affordable graphic equalizers available today.

FEATURES:
• Control range 6dB or 12dB selectable
• Bypass function
• Switchable Hi - pass and Low - pass filters.
• Balanced XLR, 1 / 4" TRS and RCA input and output connectors
• Signal clip LED
• Ground "LIFT" switch to disconnect signal ground from chassis ground
• Line voltage selectable (115V / 230V)
• Control Range: +/-6dB or 12dB selectable
• Inputs and Outputs: XLR, 1 / 4" TRS and RCA jack
• Inputs Impedance: 20K ohm (bal) 15K ohm (unbal)
• Outputs Impedance: < 600 ohm
• High Pass Filter: 40Hz (12dB/oct)
• Low Pass Filter: 16kHz (12dB/oct)
• Max. Input Level: +18dBV
• Max. Output Level: +16dBV
• THD%: 0.02% (at 1kHz, all slider at center)
• Frequency Response: 20Hz to 50kHz, 3dB (all slider at center)
• S / N Ratio: 117dB
• Power Supply: AC 100V - 120V, 60Hz / AC 200V - 240V, 50Hz
• Power Consumption: 15 watts (max)
• Type: 2 31-Band, 1/3 octave, ISO spacing
• Slider Type: 20mm with centre detect
• Power Consumption: 18 watts
• Dimensions (WDH): 483 187 88mm (19" 7.4" 3.5")

Additional Information

UPC N/A
SKU EQU231MK2
Manufacturer Alto Professional
Product Condition New - On Clearance
Returnable No
