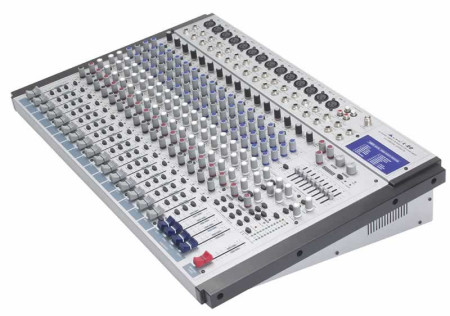

Alto L20 20-Channel 2+4-Bus Mixer with DSP

alto l20
alto l20 Alto L20 20-Channel 2+4-Bus Mixer with DSP
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

Unavailable Discontinued or no longer available.
Sorry, this item is discontinued or no longer available from us. We've left this page up for reference only. Check out some of the other great alternatives on this page or click below to see if it can still be found elsewhere.
Buy on Amazon
The Alto L-20 mixing console has built-in 24-bit digital effects processor, 3 EQ bands on each input channel, and a 9 band stereo graphic equalizer for overall frequency correction, making it ideal for live sound work, but equally at home in the project studio.

• 12 mono inputs with gold plated XLR and balanced TRS jack w ith low cut filter @75Hz - 18dB / Oct. and insert
• Each input channel features MUTE, SOLO, SIGNAL & OVERLOAD LEDs
• TRIM and 48V Phantom Power for mono / mic inputs
• 4 stereo inputs with balanced TRS jack with level select switches inputs 13 & 14 have mic input too
• 3 - band EQ with sweepable MID on mono inputs
• 4 - band fixed EQ on stereo inputs
• 4 AUX sends AUX sends 1 & 2 switchable PRE - / POST - FADER (for monitoring/effects sends purposes) - AUX sends 3 & 4 POST - FADER (for internal DSP FX and/or external FX unit)
• Master AUX sends with level and SOLO switch
• 4 stereo AUX Returns with smart signal routing system for higher versatility
• 24 - bit internal DSP with 256 effects, 16 presets by 16 variations with DSP MUTE switch and Peak LED and with discrete levels for AUX 1 & AUX 2 monitoring
• Main Out features a switchable 9 - band graphic EQ
• Channel Inserts and Direct Out in each mono input
• 2 - track IN / OUT with discrete switches for routing to Control Room and / or to Main Mix
• Two different ways of SOLO PFL (Pre-fade listen) AFL (After-fade listen) for a better control over signal
• Matrix (MAIN MIX / 1-2 / 3-4) & discrete output level for Phones & Control Room
• Main Mix inserts for flexible connection to outboard equipment
• Balanced XLR & TRS jack output
• Total outs: 16 (12 direct outs 4 sub-groups)
• Dimensions (WxDxH): 626 x 400 x 38 / 115mm (24.6" x 15.7" x 1.5/4.5")
• Weight: 9.3kg (20.5 lb)

Additional Information

ManufacturerAlto Professional
Product ConditionNew - On Clearance
