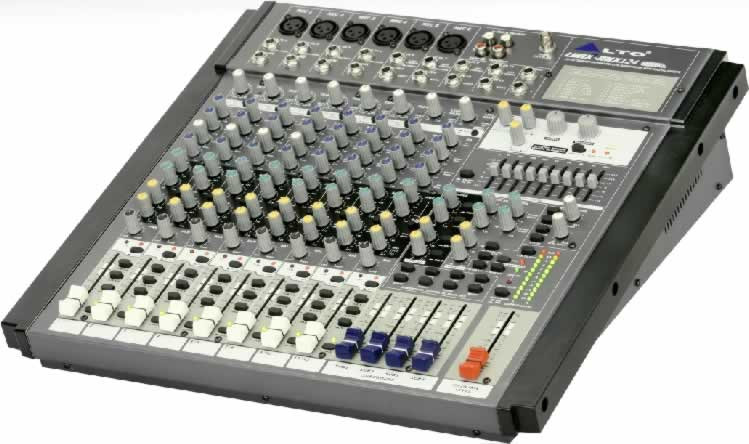

ALTO's LYNX-MIX124 USB features two smart switches to make the USB port versatile in recording, overdubbing and karaoke!
FEATURES:• 16Bit 3248kHz ADC/DAC USB input and output with selectable track
• Universal serial bus (USB) for easy connection with computer for music recording
• Ultra-low noise discrete Mic Preamps with 48V Phantom Power
• Extremely high headroom offering more dynamic range
• 60mm high precision faders
• Each input channel with Mute, SOLO function, Overload &
signal present LEDs and low cut filters (except for stereo channel)
• SUB 1 - 2, SUB 3 - 4 and MAIN L - R signal assignment switch
• 4 AUX sends per channel: 2 PRE/POST faders switchable for monitoring application and effects & sound processor input;
2 POST faders for internal digital DFX or as external send
• 4-band fixed EQ on stereo line channels
• 3-band EQ with swept mid on microphone channels
• Channel inserts and direct outputs on each mono channel plus main mix insert for flexible connection of outboard equipment
• 24-bit DSP effect for 256 choices (16 presets 16 variations)
• Stereo 9-band graphic EQ
• BNC socket for connecting lamp
• Control room/phones matrix
• 2 - TRACK IN assignable to main mix, control room/headphone outputs
• Highly accurate 12 segment output level meters
SPECIFICATIONS:• 4 mono inputs with gold plated XLR and balanced TRS jack with low cut filter @75Hz - 18dB /Oct. and insert
• 4 Stereo inputs with balanced TRS jack
• 5 & 6 CH have switch input & mic. Input
• Dimensions (WDH): 415 400 38/115mm (16.3" 15.7" 1.5"/4.5" )
• Net Weight: 5.7kg (12.6 lb)
