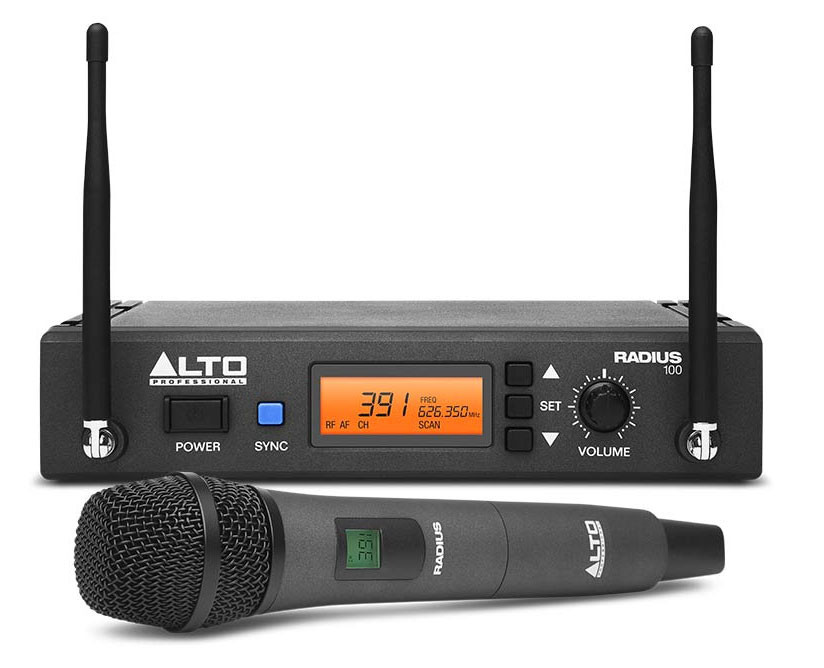

Alto RADIUS 100 Handheld Wireless Microphone System

alto radius100
alto radius100 Alto RADIUS 100 Handheld Wireless Microphone System
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

Unavailable This item is not currently available from Planet DJ
In Stock It may be available on Amazon
In Stock Free shipping on most orders over $35
Buy on Amazon
Radius 100 is an easy-to-use UHF diversity wireless microphone system that is available in three versions and provides reliable, crystal-clear sound for a wide range of professional vocal applications. Alto's switching diversity receiver design utilizes two separate antenna systems for uncompromised wireless performance. If one antenna experiences signal interruption, the receiver instantly switches to the second antenna. This assures you of an extremely stable, reliable wireless signal,with virtually no chance of dropout or interruption. This is the promise of wireless performance-delivered!



Specifications
RECEIVER
• UHF Band Operation: 520937.5 MHz (region-specific)
• Oscillator: PLL Synthesized
• Frequency Stability: 0.005%
• Modulation: FM
• Transmission Range: 328 feet / 100 meters
• Signal-to-Noise Ratio: > 100 dB (at 20 KHz deviation and 60 dBV antenna input
• Image & Spurious Rejection: 80 dB minimum
• Receiving Sensitivity: At 3 uV over 52 dB/A SNR
• Selectivity: > 50 dB
• AF Response: 80 Hz 18 KHz
• THD: < 1% (at 1 KHz)
• IF Frequency: 1st: 243.95 MHz / 2nd: 10.7 MHz
• Dynamic Range: > 100 dB
• Tone Signal: 32.768 KHz
• Audio Output: 1 balanced XLR1 unbalanced 1/4" (6.35mm)
• Display: High-visibility back-lit LCD with RF and AF meters
• Power: Supply: 12 V, 1 A, center positive (adapter included)Consumption: 150 mA 10 mA
• Case: Half 19" EIA-rack plastic case
• Dimensions: 7.9" x 4.8" x 1.7"20.0 cm x 12.2 cm x 4.2 cm
• Weight: 2.1 lbs.1.0 kg

TRANSMITTER
• UHF Band Operation: 520937.5 MHz (region-specific)
• Channel Selection: Synchronization with receiver
• RF Power Output: 10 mW (maximum)
• Deviation: 20 KHz with limiting compressor
• Spurious Emission: > 60 dB below carrier frequency
• Display: Hand-Held Microphone:2-digit 7-segment LCD
• Power: Hand-Held Microphone:Consumption:2.4 VDC (1.2V via 2 AA batteries)3 VDC (1.5V via 2 AA batteries)120 mA 10 mA
• Dimensions Hand-Held Microphone: 2.0" x 2.0" x 10.2" / 5.2 cm x 5.2 cm x 26.0 cm

Additional Information

UPC816311011150
SKURADIUS100
ManufacturerAlto Professional
Price$199.00
Product ConditionNew
