Alto REVO SUB118P 18" Passive Vented Subwoofer

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

alto revosub118

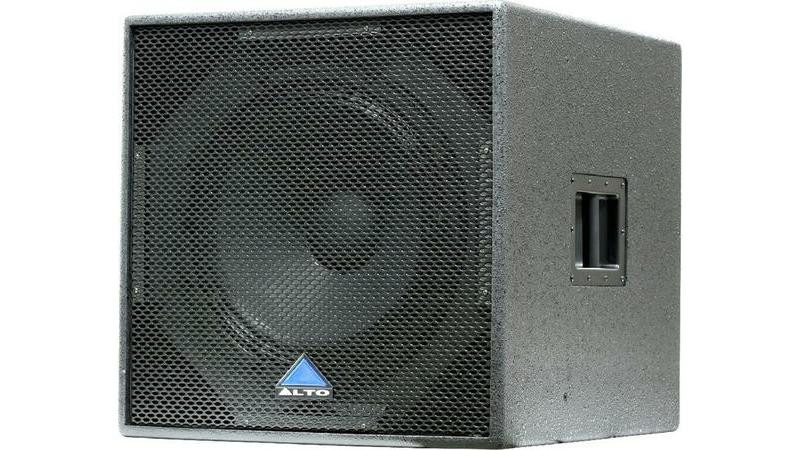

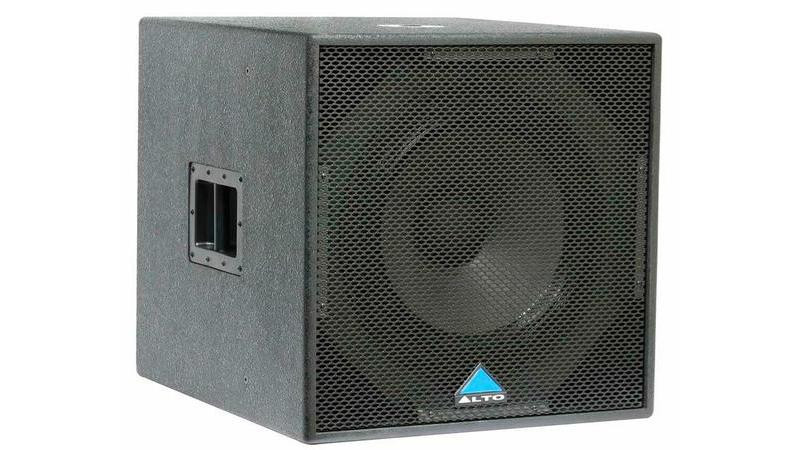

alto revosub118 Alto REVO SUB118P 18" Passive Vented Subwoofer
Images may show accessories or configurations not packaged with this item.
The REVO SUB118P is a vented subwoofer equipped with a single custom high power 18" subwoofer with 4" high-power sandwich copper voice coil on fiberglass former, double spider, ceramic magnet, and weather resistant cone. The enclosure is made with a 18mm multi-layer plywood, finished with anti-scratch black paint, with a strong perforated metal grille, two metal handles, one pole socket for satellite and four wheels.

• Operating Frequency Range: 37Hz-200Hz (|10dB)
• Frequency Response: 43Hz-200Hz ({/| 3dB)
• Nominal SPL @ 1m: 122dB SPL Continuous (Direct Mode)
• Maximum SPL @ 1m: 125dB Peak (Direct Mode)
• Power Rating (Direct Mode): 750W RMS/1500W Peak (AES Standard)
• Transducers Low: 18" Subwoofer, 4" high-power voice coil ceramic magnet, weather resistant cone.
• Crossover modes: Passive, Direct with externally selector in direct connection
• System Sensitivity (1w@ 1 mt): 97dB SPL, passive version
• Nominal Impedance: 8O (nominal)
• Suspension/Mounting: Single 36mm pole socket, four integrated point for line array suspension, two handle, our optional wheel
• Enclosure: 18mm calibrated plywood, black finish, perforated metal grille, silver finish.
• Input Connectors: Two SPK N-L 4 type, Passive
• Dimensions (HWD): 620 620 700mm (24.4" 24.4" 27.5")
• Weight: 51.8kg (114.2 lb)
