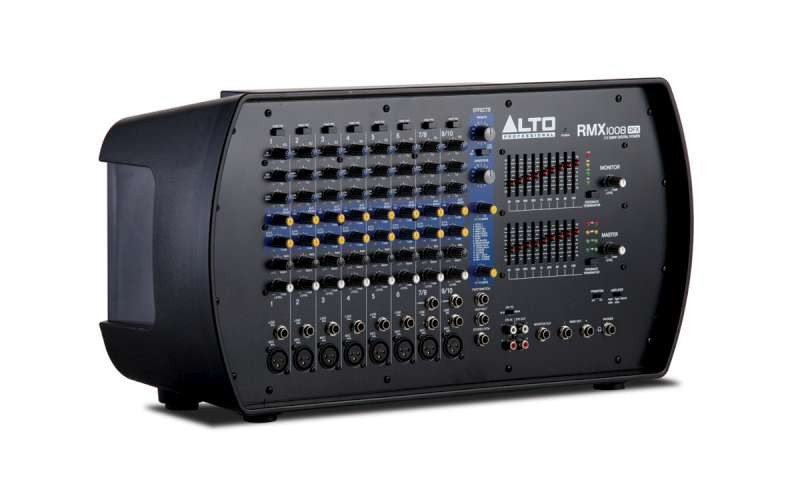

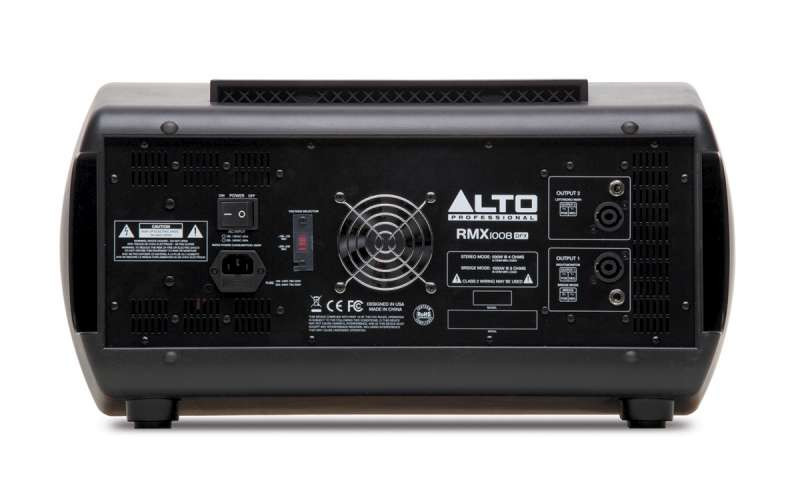

Alto Professional EMPIRE RMX1008DFX Powered Cabinet Mixer w/ Effects

We didn't stop at just delivering clean power for this powerhouse cabinet mixer. The RMX1008DFX also features an incredibly useful array of tools that can make your events world-class. RMX1008DFX includes 18 total inputs including 8 XLR jacks with phantom power, 8 Line jacks and stereo RCA. This means that whether you're plugging in guitars, mics, keyboards or even an iPod for playback between sets, you're covered with the RMX1008DFX .

Once everything is connected, there's a full on-board digital effects processor and 3-shelf EQ on each mono and stereo channel so you can dial in the perfect sound at any venue. A 24-bit, built-in Alesis DSP effects engine supplies ample options for sweetening including Hall, Room, Vocal & Plate reverbs, Mono & Stereo delay (max delay time 650ms), Chorus, Flanger & Reverb modulations, Reverb+Delay, Reverb+Chorus and Reverb+Flanger combinations. 256 different Alesis DSP presets provide ample options for any situation. When the gig is done, inset, molded handles on both ends make it super easy to transport.

Make the professional choice for a portable cabinet mixer with the EMPIRE RMX-series.

TECH INFORMATION
Mono input channels
Microphone input: Electronically balanced, discrete input configuration
Frequency response: 10Hz to 55kHz, +/-3dB
Distortion: (THD & N) 0.006% at +4dBu, 1kHz
Gain: 50dB (MIC)
SNR: (Signal to Noise Ratio) >90dB

Line input
Electronically balanced
Frequency response: 10Hz to 55kHz, +/-3dB
Distortion: (THD & N) 0.04% at +4dBu, 1kHz
Gain: 30dB

Stereo input channels
Line input: Unbalanced
Frequency response: 10Hz to 55kHz, +/-3dB
Distortion: (THD & N) 0.006% at +4dBu, 1kHz

Impedances
Microphone input: 1.4kOhm
Channel Insert return: 2.5kOhm
All other inputs: 10kOhm or greater
Tape out: 1kOhm
All other output: 120Ohm

Equalization
Hi shelving: +/-15dB @12kHz
Mid bell: +/-15dB @2.5kHz
Low shelving: +/-15dB @ 80Hz

Alesis DSP Section
A/D and D/A converters: 24-bit
DSP resolution: 24-bit

Type of effects
Hall, Room, Vocal & Plate Reverb
Mono & Stereo DELAY (max delay time 650ms)
Chorus, Flanger & Reverb Modulations
Reverb+Delay, Reverb+Chorus,
Reverb+Flanger combinations
Presets: 256

Controls
16-position PRESET Selector; 16-position VARIATION selector
CLIP LED; MUTE SWITCH with LED indicator

Main Mix Section
Noise: (Bus Noise) Fader 0 dB, channels muted:-85dBr (ref.:+4dBu)
Fader: 0dB, all input channels assigned and set to
UNITY gain:-71dBr (ref.:+4dBu)
Max output: +27dBu balanced, +22dBu unbalanced, 1/4" jacks
AUX Sends max out: +22dBu

Output Power Stereo mode
440W(RMS) @ 4ohm
480W(EIAJ) @ 4ohm
254W(RMS) @ 8ohm
263W(EIAJ) @ 8ohm
Bridge mode 945W @ 8ohm
Power supply Main voltage 100-120VAC 60Hz
220-240VAC 50Hz
Fuse 100120V: T8A 250V
220240V:T5A 250V
Dimensions (WxLxH): 550mm x 220mm x 210mm
