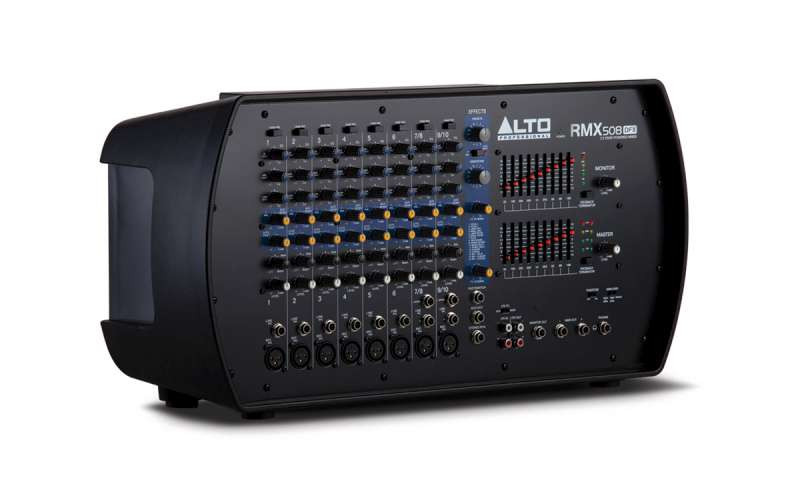

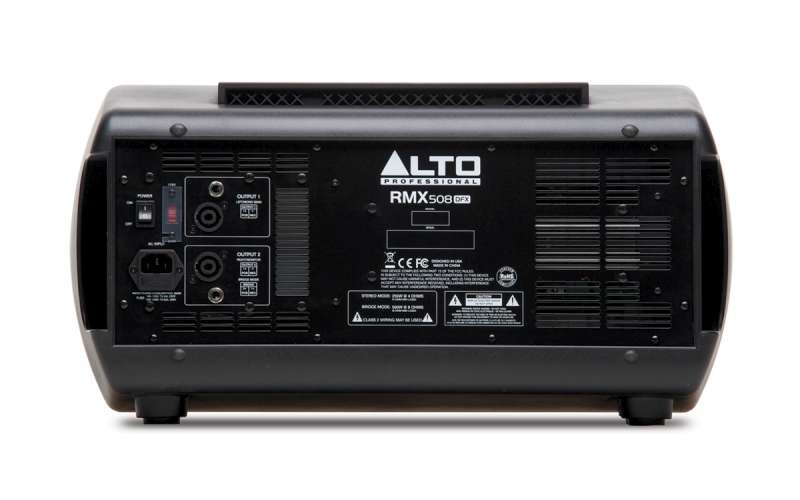

Alto Professional EMPIRE RMX508DFX Powered Cabinet Mixer w/ Effects

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

alto rmx508dfx
alto rmx508dfx Alto Professional EMPIRE RMX508DFX Powered Cabinet Mixer w/ Effects
The RMX508DFX includes everything you need to tackle virtually any live performance. It starts with an ultra-clean 500 watts of Class D power to drive your speakers of choice. Class D amplification makes the RMX508DFX not only powerful but incredibly light compared to other solutions so you won't break your back bringing it to the venue. Running the RMX508DFX in stereo will deliver a continuous 2 x 250W at 4-ohms of pure, clean power.

We didn't stop at just delivering clean power for this affordable cabinet mixer. The RMX508DFX also features an incredibly useful array of tools that can make your events world-class. RMX508DFX includes 18 total inputs including 8 XLR jacks with phantom power, 8 Line jacks and stereo RCA. This means that whether you're plugging in guitars, mics, keyboards or even an iPod for playback between sets, you're covered with the RMX508DFX .

Once everything is connected, there's a full on-board digital effects processor and 3-shelf EQ on each mono and stereo channel so you can dial in the perfect sound at any venue. A 24-bit, built-in Alesis DSP effects engine supplies ample options for sweetening including Hall, Room, Vocal & Plate reverbs, Mono & Stereo delay (max delay time 650ms), Chorus, Flanger & Reverb modulations, Reverb+Delay, Reverb+Chorus and Reverb+Flanger combinations. 256 different Alesis DSP presets provide ample options for any situation. When the gig is done, inset, molded handles on both ends make it super easy to transport.

Make the professional choice for a portable cabinet mixer with the EMPIRE RMX-series.

TECH INFORMATION
Mono input channels
Microphone input: Electronically balanced, discrete input configuration
Frequency response: 10Hz to 55kHz, +/-3dB
Distortion: (THD & N) 0.006% at +4dBu, 1kHz
Gain: 50dB (MIC)
SNR: (Signal to Noise Ratio) >90dB

Line input: Electronically balanced
Frequency response: 10Hz to 55kHz, +/-3dB
Distortion: (THD & N) 0.04% at +4dBu, 1kHz
Gain: 30dB

Stereo input channels
Line input: Unbalanced
Frequency response: 10Hz to 55kHz, +/-3dB
Distortion: (THD & N) 0.006% at +4dBu, 1kHz

Impedances
Microphone input: 1.4kOhm
Channel Insert return: 2.5kOhm
All other inputs: 10kOhm or greater
Tape out: 1kOhm
All other output: 120Ohm

Equalization
Hi shelving: +/-15dB @12kHz
Mid bell: +/-15dB @2.5kHz
Low shelving: +/-15dB @ 80Hz

Alesis DSP Section
A/D and D/A converters: 24-bit
DSP resolution: 24-bit

Type of effects
Hall, Room, Vocal & Plate REVERBS
Mono & Stereo DELAY (max DELAY TIME 650ms)
Chorus, Flanger & Reverb MODULATIONS
REVERB+DELAY, REVERB+CHORUS,
REVERB+FLANGER combinations
Presets: 256
Controls: 16-position PRESET Selector;16-position VARIATION selector
CLIP LED; MUTE SWITCH with LED indicator
Main Mix Section Noise: (Bus Noise) Fader 0dB, all input channels assigned and set to

UNITY gain:-71dBr (ref.:+4dBu)
Max output: +27dBu balanced, +22dBu unbalanced, 1/4" jacks
AUX Sends max out: +22dBu

Power supply Main voltage
100-120VAC 60Hz
220-240VAC 50Hz
Fuse 100 120V : T6.3AL
210 240V : T3.15AL

Stereo mode
230 W @ 4 ohm(RMS) THD=1%
150 W @ 8 ohm(RMS) THD=1%
Bridge mode 460 W @ 8 ohm(RMS) THD=1%

Physical Dimension (WDH) 550mm220mm310mm(8.66"12.20"21.65")
Weight (Net) : 13.2kg (28.70lb)
(Gross) : 15.93kg (35.11lb)
