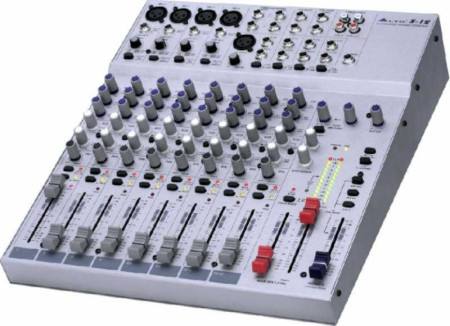

Alto S12 12-Channel 2+2-Bus Mixing Console, New

FEATURES:
• Balanced inputs for clean, hum - free performance
• Extremely low noise preamps
• 48 Volt Phantom Power
• High headroom for wide dynamic range
• 2 - Track inputs assignable to main mix, control room & headphone outputs
• Sealed potentiometers
• Built - in power transformer
• Inserts on mic channels
• 4 mono inputs with gold plated XLR and balanced TRS jacks with low cut filter @75Hz - 18dB / Oct.
• TRIM and +48V Phantom Power for mono / mic inputs
• 4 stereo inputs with balanced TRS jack with level select switches
• Very effective 3 - band EQ
• 2 AUX sends: AUX 1 with PRE - / POST - FADER switch for monitoring / effects AUX 2 POST - FADER for effects send can be changed in PRE - FADER for monitoring
• Each input channel features MUTE / ALT3 - 4, SOLO switches, LEDs & clip indicating LED

MASTER SECTION FEATURES
• 2 Stereo AUX return with level and routing to AUX 1
• 2 - track IN / OUT with discrete switch for routing to Control Room and to Main Mix
• Two different ways of SOLO PFL (Pre-fade listen) AFL (After-fade listen) for a better control over signal path
• Matrix (MAIN MIX / 1-2 / 3-4) & discrete output level for Phones / Control Room
• Balanced XLR & TRS jack output
• Dimensions (WxDxH): 300 x 355 x 28 / 80mm (11.8" x 14.0" x 1.1/3.2")
• Weight: 4.0kg (8.8 lb)
