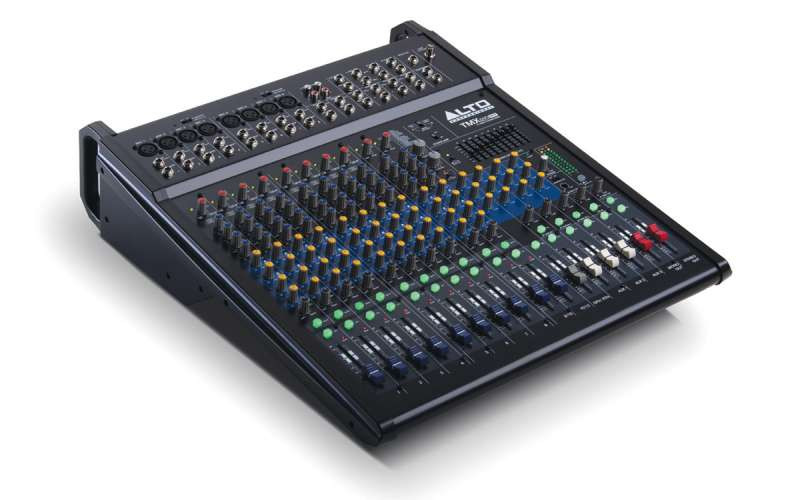

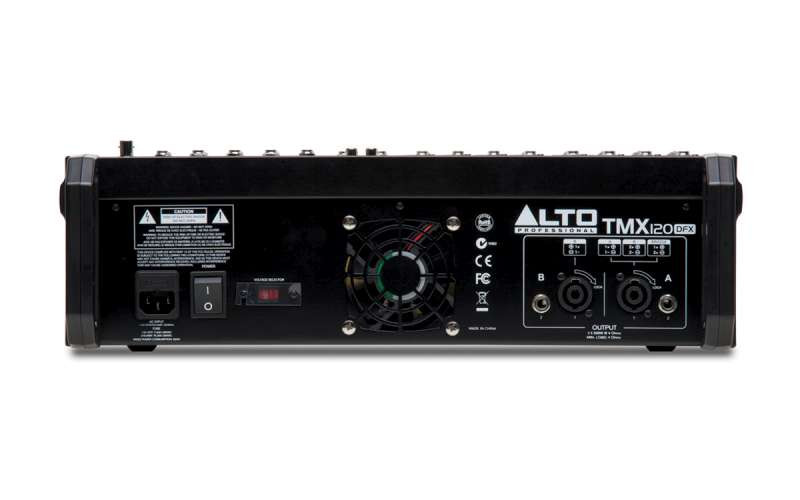

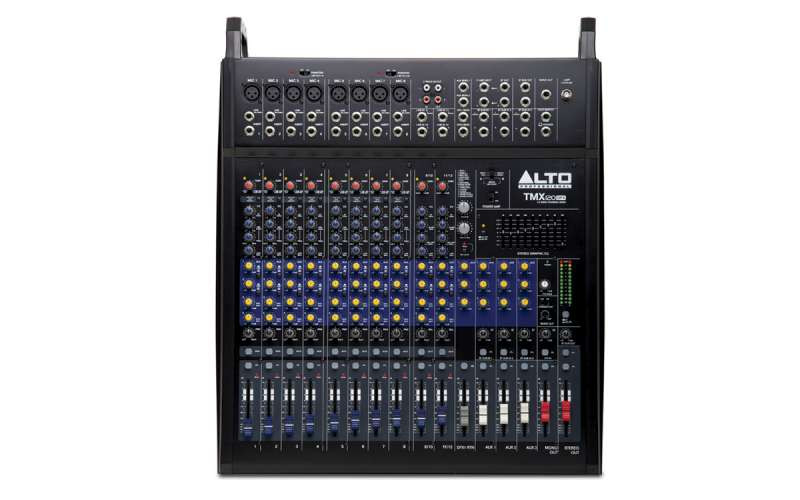

Alto Professional EMPIRE TMX120DFX 12-Channel Powered Mixer w/ Effects

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

alto tmx120dfx
alto tmx120dfx Alto Professional EMPIRE TMX120DFX 12-Channel Powered Mixer w/ Effects Alto Professional EMPIRE TMX120DFX 12-Channel Powered Mixer w/ Effects
The TMX120DFX is loaded with all the connections you need including 22 total inputs comprised of 8 XLR jacks with phantom power, 12 Line jacks and stereo RCA. These low-noise channels are your best friend when connecting instruments, mics, or even your iPod for playing between sets. Even better, each mono and stereo channel has its own 3-shelf EQ, so you can dial in every nuance you need in seconds. A/D and D/A conversion is performed with 24-bit precision, which means you'll never have a "What was that?" moment. Easy-to-view knobs with incredibly smooth movement help to make mixing feel like playing a fine instrument.

SO MANY EFFECTS, SO LITTLE TIME
The TMX120DFX's on-board Alesis digital effects processor provides pristine 24-bit, ultra-clean digital effects you, and the audience, won't soon forget. Effects include Large Hall, Medium Hall, Large Room, Medium Room, Karaoke, Short Spring Reverb, Long Spring Reverb, Chamber, Mono Delay, Mono Echo,Stereo Echo, Flanger, Chorus, Reverb + Chorus, Reverb + Delay and Thickener.

POWER TO SPARE
Did we mention power? The TMX120DFX comes standard with the ability to deliver ultra-clean power at 2 x 500 W (4-Ohms) or 1000 W (8-Ohms bridged). These aren't peak rating either, this is pure continuous power. In short, it's a workhorse. Fortunately, all that power isn't as heavy as you might expect. Weighing in at just under 24 pounds, the TMX120DFX is a clear winner in the power-to-weight class.

TECH INFORMATION
Input Channels
Microphone Input: Electronically Balanced
Frequency Response: 20 Hz to 20 kHz, +/-1 dB
Distortion (THD&N): <0.03% at 0 dBu, 1 kHz
Gain range 0 dB to 45 dB (Mic)
SNR (Signal-to-Noise Ratio): 115 dB

Line Input: Electronically Balanced (Unbalanced)
Frequency Response: 20 Hz to 20 kHz, +/- 1 dB
Distortion (THD&N): <0.03% at 0 dBu, 1 kHz
Gain range: -15 dBu to 30 dBu
Impedance Microphone Input: 1.4 kOhms
Channel Insert return: 2.5 kOhms
All Other Input: 10 kOhms or Greater
Tape Out: 1 kOhms
All Other Outputs 120 Ohms

Equalization
Hi Shelving: 15 dB @ 12 kHz
Mid bell: 12 dB @ 100 Hz - 8 kHz
Low shelving: 15 dB @ 80 Hz
MAIN EQ 9 EQ: (63 Hz, 125 Hz, 250 Hz, 500 Hz, 1 kHz, 2 kHz, 4 kHz, 8 kHz, 16 kHz) 15 dB
DSP Section: A/D and D/A Converters 24-bit
DSP Resolution: 24-bit

Type of effects
Large Hall, Medium Hall, Large Room, Medium Room, Karaoke, Short Spring Reverb, Long Spring Reverb, Chamber, Mono Delay, Mono Echo, Stereo Echo, Flanger, Chorus, Reverb + Chorus, Reverb + Delay, Thickener
Presets 16
Controls 16-Posistion Preset Selector

Clip LED
Mute switch with peak LED indicator

Main Mix Section Noise (Bus noise)
Fader 0 dB, Channels muted: -90 dBr (ref.: +4 dBu)
Fader 0 dB, All input channels assigned and set to Unity Gain: -88 dBr (ref.: +4 dBu)

Power Consumption Stereo mode
2 x 500 W @ 4 Ohm (EIAJ) 2 x 340 W @ 4 Ohm (RMS)

Bridge mode
1000 W @ 8 Ohm (EIAJ)

Phantom Power (Mic Pin 2 / Pin 3 and Pin 1): 47 2 V

Power supply Main voltage 115 V / 230 V

Dimensions (WxLxH): 565mm x 450mm x 145mm
Weight: 23.5 lb

Additional Information

UPCN/A
SKUTMX120DFX
ManufacturerAlto Professional
Product ConditionNew - On Clearance
ReturnableNo
