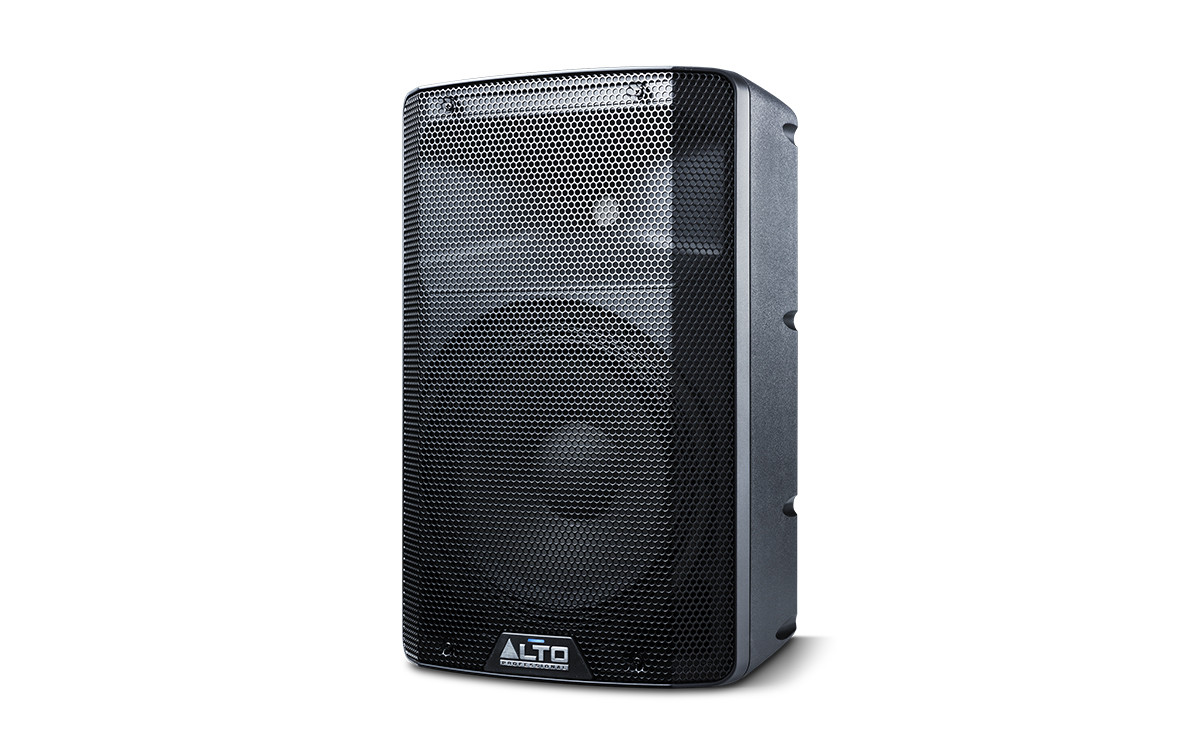

Experience power, performance, and portability. TX210 comes equipped with efficient, bi-amped Class D amplification that pumps out a generous 300 Watts of peak power. An exacting electronic crossover ensures smooth frequency response from the 10" low-frequency driver and 1" high-frequency compression driver. Bass porting offers extended low-end response, while the steel grille adds extra protection.
Features• Power Output: 300 W peak (200 W LF + 100 W HF), 150 W continuous (100 W LF + 50 W HF) Class D power
• LF Driver: 10-inch (254 mm) LF driver, 1.5-inch (38.1 mm) voice coil
• HF Driver: 1-inch (25.4 mm) titanium diaphragm HF compression driver
• Crossover: 2.5 kHz
• Maximum: 116 dB at 1m
• Frequency Response: (-3dB): 75 Hz 20 kHz
• Horn Coverage: 90 H x 60 V nominal

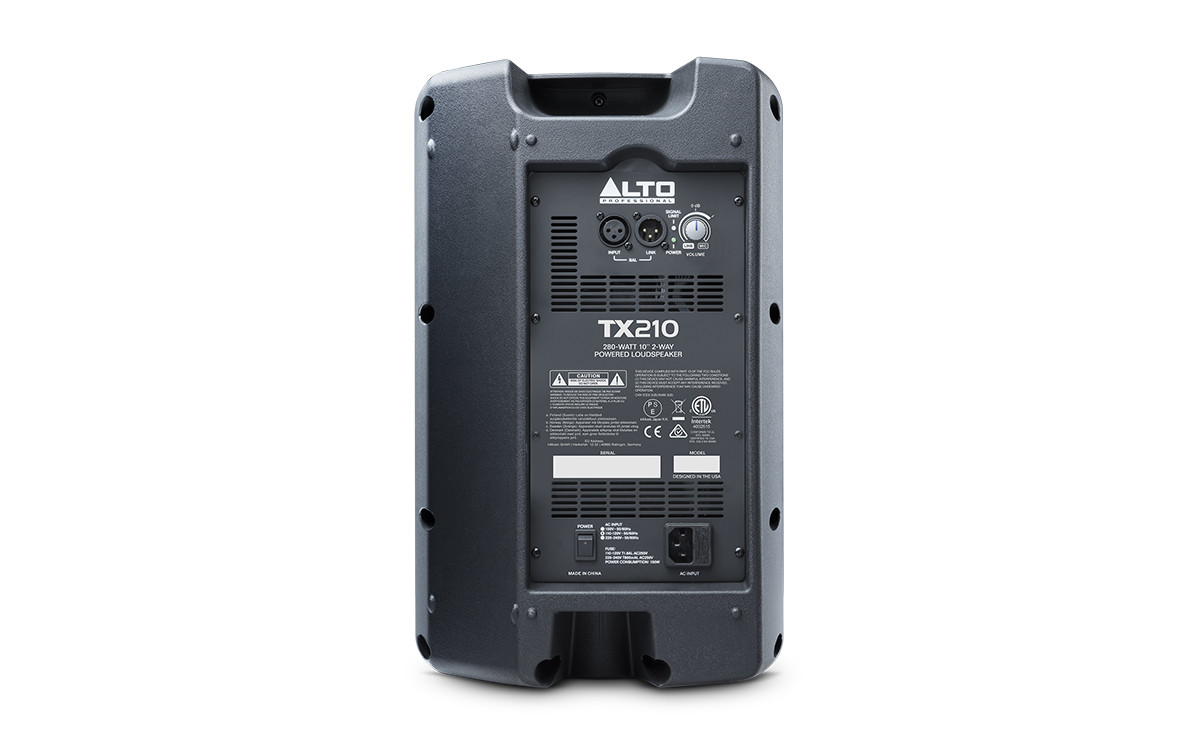

• Connectors: (1) XLR balanced input, (1) XLR link output, (1) IEC power cable input
• Controls: (1) Volume, Power on/off switch
• Indicators: (2) Power LED (front and rear), Clip limiter LED
• Protection: Overload Analog Limiter / Compressor, Thermal Protection
• Power Supply: 100V-240V 50/60Hz
• AC Voltage Input: 100,110-120,220240 V, 50/60 Hz
• Fuse: 100120V T1.6AL AC250V, 220240V T800mAL AC250V
• Power Consumption: 150 W
• Enclosure Construction: Injection-molded polypropylene enclosure, multi-angle for main or monitor applications, metal grille, rubber feet, 1 handle on top
• Mounting/Installation: Standard speaker pole socket, Wedge Monitor
• Dimensions (H x W x D): 18.2" x 11.3" x 10.9" / 462mm x 287mm x 277mm
• Net Weight: 16.7 lbs. / 7.6 kg
