Experience power, performance, and portability. TX212 comes equipped with efficient, bi-amped Class D amplification that pumps out a generous 600 Watts of peak power. An exacting electronic crossover ensures smooth frequency response from the 10" low-frequency driver and 1" high-frequency compression driver. Bass porting offers extended low-end response, while the steel grille adds extra protection.
Features:• Power Output: 600 W peak (400 W LF + 200 W HF), 300 W continuous (200 W LF + 100 W HF) Class D power
• LF Driver: 12-inch (305 mm) LF driver, 2-inch (50.8 mm) voice coil
• HF Driver: 1-inch (25.4 mm) neodymium HF compression driver
• Crossover: 2.5 kHz
• Maximum: 118 dB at 1m
• Frequency Response: (-3dB): 70 Hz 20 kHz
• Horn Coverage: 90 H x 60 V nominal
• Equalization: Contour Switch Low and High Frequency +3dB Boost

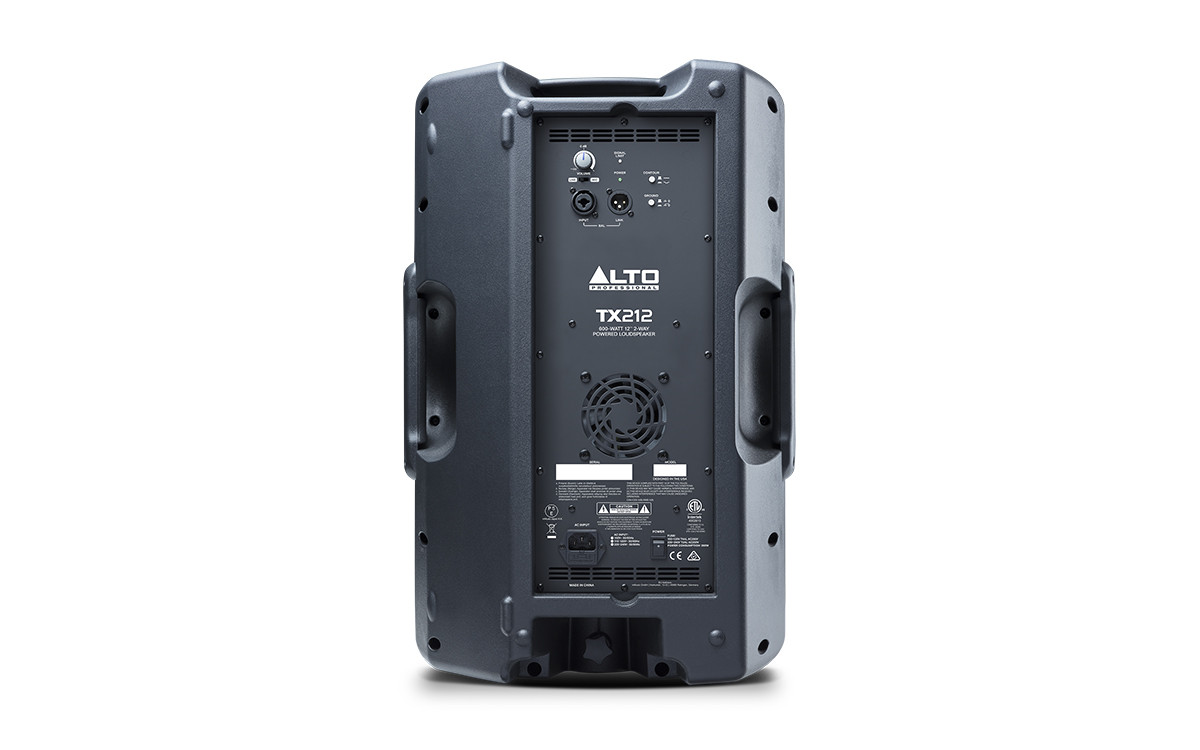

• Connectors: (1) XLR/TRS 1/4" (6.35 mm) combo input, (1) XLR link output, (1) IEC power cable input
• Controls: (1) Volume, Power on/off switch, Contour switch, Ground-Lift Switch
• Indicators: (2) Power LED (front and rear), Clip limiter LED
• Protection: Overload Analog Limiter / Compressor, Thermal Protection
• Power Supply: 100V-240V 50/60Hz
• AC Voltage Input: 100,110-120,220240 V, 50/60 Hz
• Fuse:100120V T4AL AC250V, 220240V T2AL AC250V
• Power Consumption: 260 W
• Enclosure Construction: Injection-molded polypropylene enclosure, multi-angle for main or monitor applications, metal grille, rubber feet, 2 handles (both sides)
• Mounting/Installation: Standard speaker pole socket, Wedge Monitor
• Dimensions (HxWxD): 23.7" x 15" x 13.7" / 602mm x 381mm x 348mm
• Net Weight: 31.3 lbs. / 14.2 kg.
