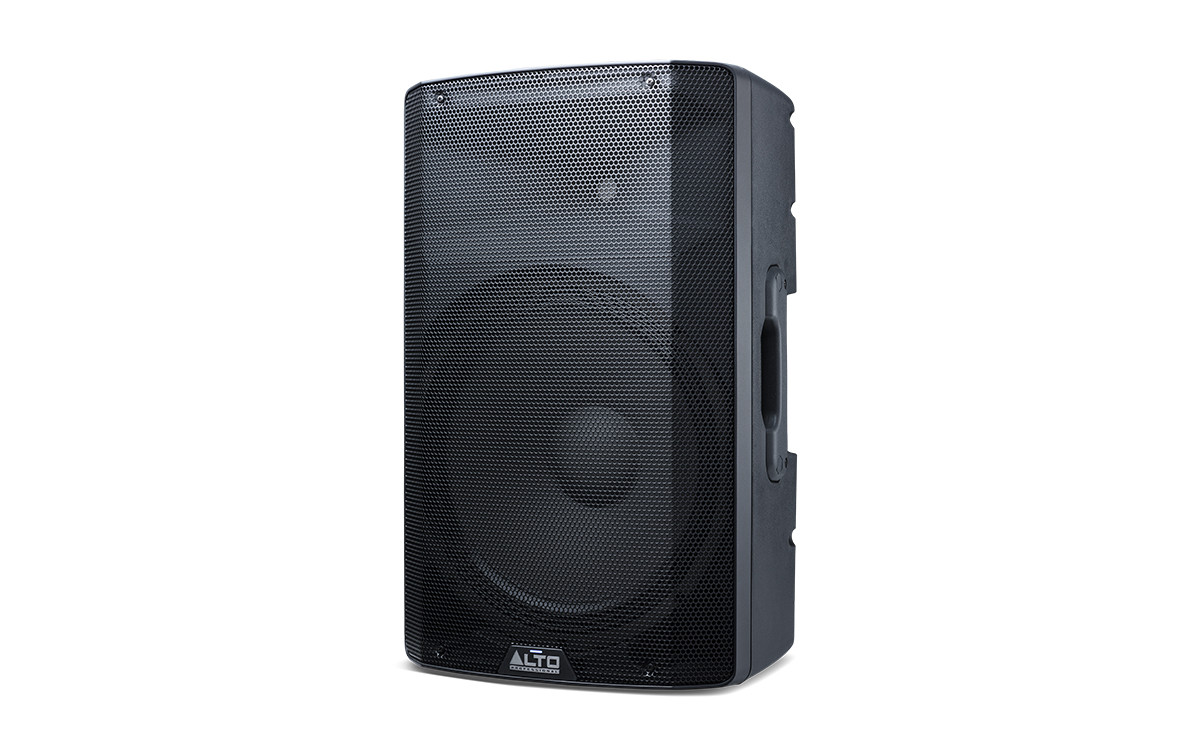

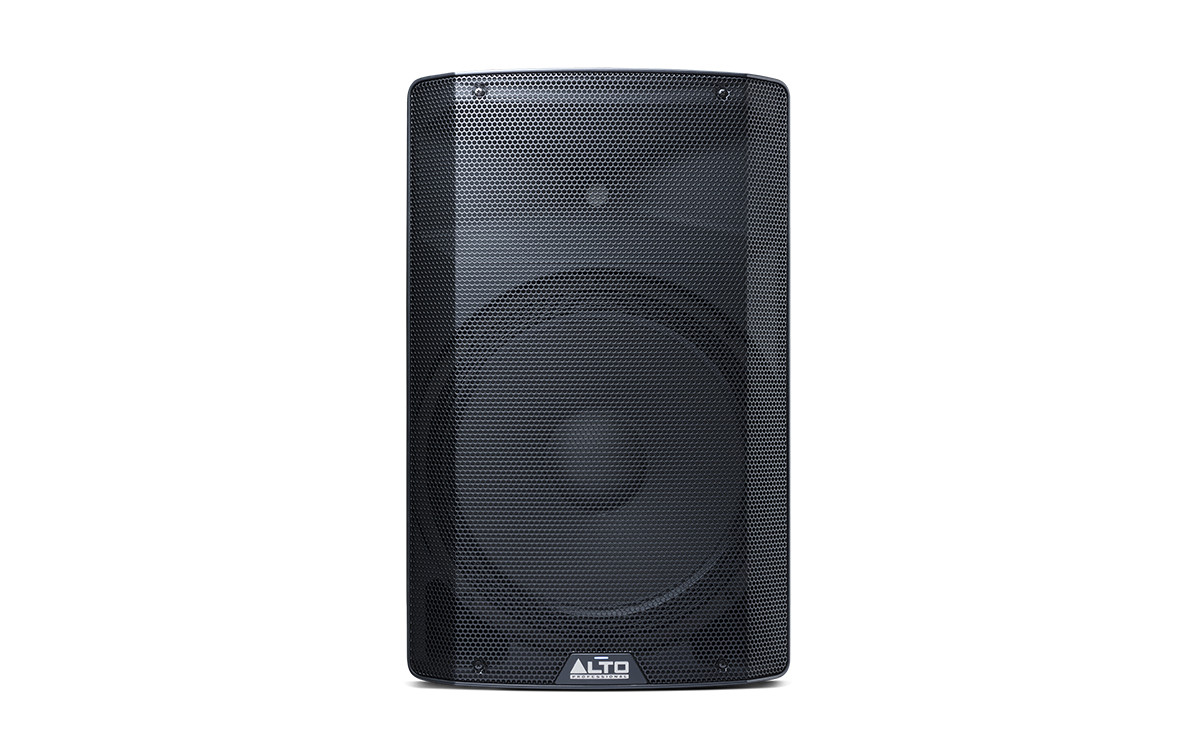

Experience power, performance, and portability. TX215 comes equipped with efficient, bi-amped Class D amplification that pumps out a generous 600 Watts of peak power. An exacting electronic crossover ensures smooth frequency response from the 10" low-frequency driver and 1" high-frequency compression driver. Bass porting offers extended low-end response, while the steel grille adds extra protection.
Features:• Power Output: 600 W peak (400 W LF + 200 W HF), 300 W continuous (200 W LF + 100 W HF) Class D power
• LF Driver: 15-inch (381 mm) LF driver, 2-inch (50.8 mm) voice coil
• HF Driver: 1-inch (25.4 mm) neodymium HF compression driver
• Crossover: 2.2 kHz
• Maximum: 119 dB at 1m
• Frequency Response: (-3dB): 65 Hz 20 kHz
• Horn Coverage: 90 H x 60 V nominal
• Equalization: Contour Switch Low and High Frequency +3dB Boost

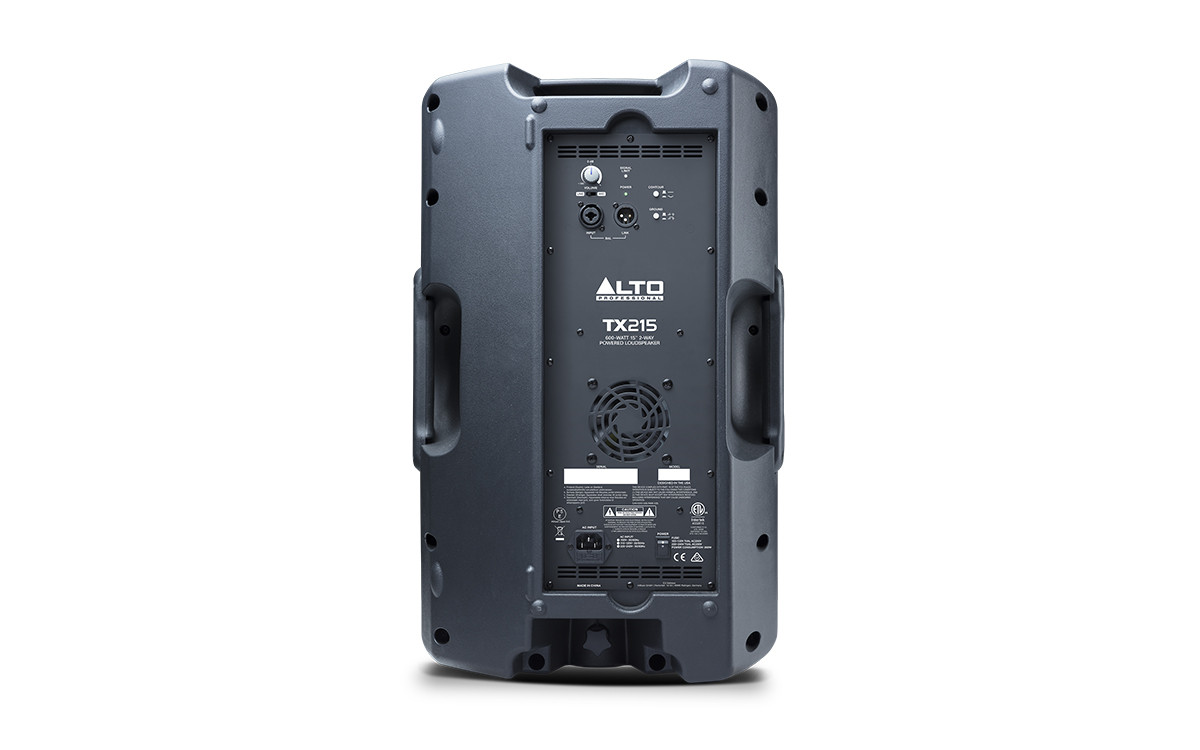

• Connectors: (1) XLR/TRS 1/4" (6.35 mm) combo input, (1) XLR link output, (1) IEC power cable input
• Controls: (1) Volume, Power on/off switch, Contour switch, Ground-Lift Switch
• Indicators: (2) Power LED (front and rear), Clip limiter LED
• Protection: Overload Analog Limiter / Compressor, Thermal Protection
• Power Supply: 100V-240V 50/60Hz
• AC Voltage Input: 100,110-120,220240 V, 50/60 Hz
• Fuse:100120V T4AL AC250V, 220240V T2AL AC250V
• Power Consumption: 260 W
• Enclosure Construction: Injection-molded polypropylene enclosure, multi-angle for main or monitor applications, metal grille, rubber feet, 2 handles (both sides)
• Mounting/Installation: Standard speaker pole socket, Wedge Monitor
• Dimensions: (H x W x D): 24.7" x 15.2" x 14.6" / 627mm x 386mm x 371mm
• Net Weight: Net Weight: 32.4 lbs / 14.7 kg.
