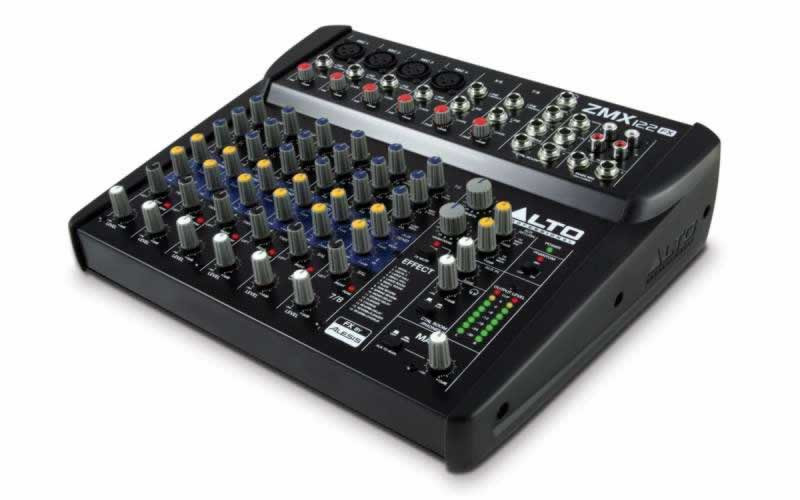

256 Onboard Effects Regardless of what you're mixing, give your mix a professional edge with 256 onboard 24-bit DSP effects designed in partnership with Alesis. Sure, we could have chosen some cheap, off-the-shelf effects to throw in, but instead we worked closely with Alesis, a company that has been setting standards for DSP technology for nearly three decades. Choose from room and space delays, small and large hall acoustics, plate and spring reverbs, flangers, chorus effects and more. The ZMX122FX offers 16 variations of 16 professional Alesis effects from which to build, tweak, and dial in your sound.
Versatile Inputs and Outputs The ZMX122FX is the swiss army knife of your creative life needs. Not only can you can plug dynamic, condenser, and wireless microphones into the first four channels, but you also get two stereo channel inputs for keyboards, drum machines, and other instruments. What's more, you can easily plug in your MP3 player, CD players, or audio from a DVD player into the CD/TAPE inputs. But you also have two AUX sends that you can use to send streams of audio from your mixer to a digital effects unit, stage monitor, TV screen, or any number of sources. Choose the ZMX122FX as the audio central command for your live performances, home studio, or video suite.
High headroom, low noise The ZMX122FX packs an enormous amount of features into a very compact space, but we took a no-compromise approach where the purity of your mix is concerned. This compact mixer brings the same standard of quality to your performances as our top-of-the-line models. All Alto Professional ZEPHYR ZMX mixers are designed with high headroom and ultra low-noise, discrete mic preamps so you always get the full dynamic range of your mix every time.

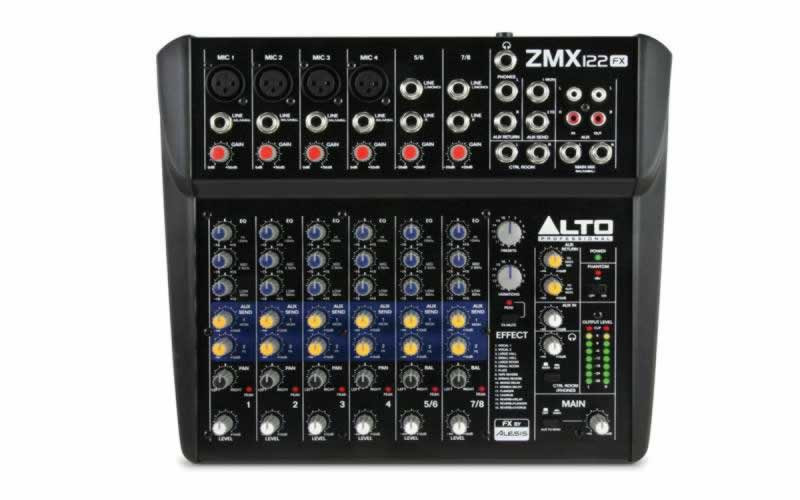

Visualize your mix We designed every ZEPHYR ZMX mixer with your performance in mind. Sometimes venues are dark and it can be hard to see what you're working with. Alto Professional solves this problem by not only color coding each section of the mixer, but also by using brightly colored knobs so that you can easily find what you need to adjust before you ever lay a finger on the mixer. Our blue, red, yellow and white pots are instantly easy to identify in dim lighting. LED indicators for output level, peak, and phantom power also assist in making sure that you have multiple visual cues that compliment everything you're hearing.
TECH INFORMATION Input Channels: Mono channels (Ch. 1 - 4) Microphone Input: Electronically balanced, discrete input configuration
Frequency Response: 20 Hz to 22 kHz, +/-1 dB
Distortion (THD&N): ?0.005% At +4 dBu, 1 kHz
Gain range: 0 dB to 50 dB (Mic)
Maximum Voltage Gain: 70 dB Ch. Mic input ? Main Mix out & Tape out, 80 dB Ch. Mic input ? Control Room & Phones, 60 dB Ch. Mic input ? Aux send
SNR (Signal to Noise Rate ): ?110 dBu
Phantom power (Mic Pin 2 / Pin 3 and Pin 1): +48 V - with switch control
Line Input: Electronically Balanced
Frequency Response: 20 Hz to 22 kHz, +/-1 dB
Distortion (THD&N): ?0.005% at + 4 dBu, 1 kHz
Gain Range: 15 dBu to 35 dBu
Stereo Channels: (Ch. 5 - 8) Line Input: Electronically Balanced
SNR (Signal to Noise Ratio): ?110 dBu
Frequency Response: 20 Hz to 22 kHz, +/-1 dB
Distortion (THD&N): ?0.005% at +4 dBu, 1 kHz
Gain range: -20 dBu to +20 dBu, 60 dB Ch. Line ? Main Mix out
Maximum Voltage Gain: 20 dB FX Return ? Main Mix out, 20 dB RCA Tape input ? Main Mix out
Impedance Microphone Input: 3.9 kOhms
All Other Inputs: 10 kOhms or greater
Tape Out: 1 kOhms
All Other Outputs: 120 Ohms
Equalization Mono Channels: High 15 dB @ 12 kHz, Mid 15 dB @ 2.5 kHz, Low 15 dB @ 80 Hz
Stereo Channels: High 15 dB @ 12 kHz, Mid 15 dB @ 2.5 kHz, Low 15 dB @ 80 Hz
Alesis DSP Section A/D And D/A Converters: 24-bit
DSP Resolution: 24-bit
Type of effects: Hall, Room, Vocal & Plate Reverbs Mono & Stereo Delay (max delay time 650 ms) Chorus, Flanger & Reverb modulations, Reverb+Delay, Reverb+Chorus, Reverb+Flanger combinations
Presets: 256
Controls: 16 x 16-position preset selector
Crosstalk: Adjacent Input ?-80 dB @ 1 KHz (Ch. 1-6) , Input to Output ?-75 dB @ 1 KHz (Stereo L/R, Ch. 1-4, Pan: panned hard left or right)
Main Mix Section Tape, Aux, Phones Output
Output level: 0 dBu Unbalanced, 1/4" Jacks, Max out +22 dBu Unbalanced, 1/4" jacks
Noise (Bus noise): ?-90 dB @ 20 Hz 22 KHz (channel & Main level at 0 dB, other at minimum, DSP mute)

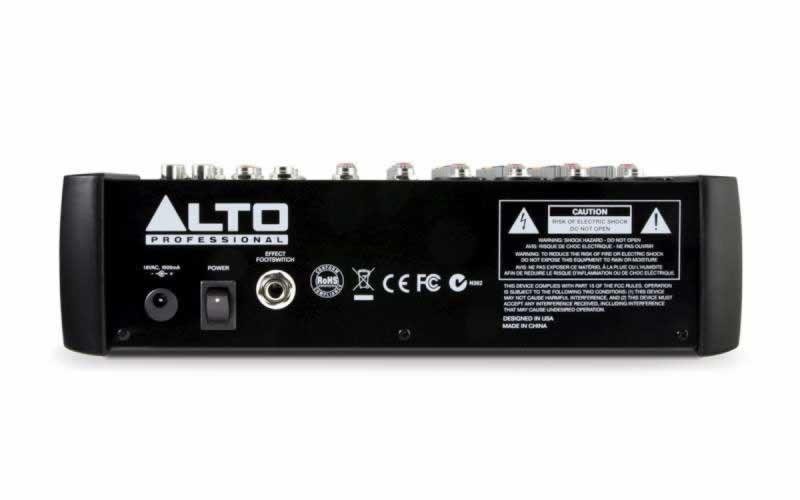

Power supply: 18 V, 1500 mA
Rated power consumption: 27 W
Dimensions (WxLxH): 256mm x 250mm x 72mm
Weight: 5.07 lb
