256 Onboard Alesis EffectsWhether you're mixing the church choir or a heavy metal band, give your mix a professional edge with 256 onboard 24-bit Alesis DSP effects. Choose from room and space delays, small and large hall acoustics, plate and spring reverbs, flangers, choruses and more. The ZMX244FX USB offers 16 variations of 16 professional effects from which to build, tweak, and dial in your sound.
USB Audio InterfaceCapture your live mix with your laptop and computer recording software by simply connecting a USB cable to the ZMX244FX USB. This USB-enabled professional mixing console features a USB port that streams two channels of 24-bit audio out to your computer (Main Mix or Sub Mix 1/2). With the ZMX244FX USB you can record band rehearsals, club gigs, speaking engagements, worship meetings, and any other live performance reinforcement situation. What's more, this USB connection is bi-directional so you can also stream audio from your laptop to the ZMX244FX USB for audio and music playback!
High headroom, low noiseThe ZMX244FX is the ultimate ZEPHYR ZMX mixer with the most features and inputs in the series. Of course, the purity of your mix is essential so we held nothing back. The ZMX244FX is designed with high headroom and ultra low-noise, discrete mic preamps so you always get the full dynamic range of your mix every time. This professional mixer sets the standard of quality as our top-of-the-line model.

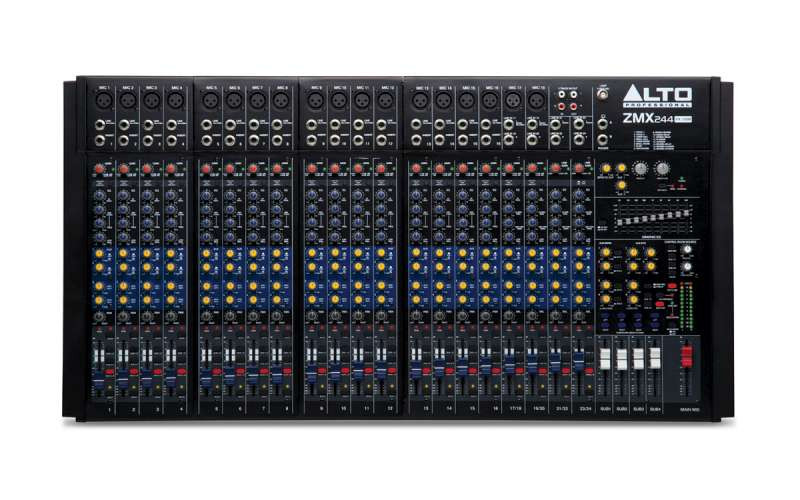

Visualize your mixWe designed every ZEPHYR ZMX mixer with your performance in mind. Sometimes venues are dark and it can be hard to see what you're working with. Alto Professional solves this problem by not only color coding each section of the mixer, but also by using brightly colored knobs so that you can easily find what you need to adjust before you ever lay a finger on the mixer. Our blue, red, yellow and white pots are instantly easy to identify in dim lighting. LED indicators for output level, peak, and phantom power also assist in making sure that you have multiple visual cues that compliment everything you're hearing.
TECH INFORMATIONInput Channels Microphone Input: Electronically Balanced
Frequency Response: 20 Hz to 20 kHz, 1 dB
Distortion: ( THD&N) <0.03% at 0 dBu, 1kHz
Gain range: 0 dB to 50 dB (Mic)
SNR (Signal-to-noise ratio): 114 dB
Line Input: Electronically Balanced (Unbalanced)
Frequency Response: 20 Hz to 20 kHz, 1 dB
Distortion: (THD&N) <0.03% at 0 dBu, 1 kHz
Gain range: -15 dBu to 35 dBu
Impedance Microphone Input: 1.4 kOhms
Channel Insert return: 2.5 kOhms
All Other Input: 10 kOhms or Greater
Tape Out: 1 kOhms
All Other Outputs: 120 Ohms
Equalization Hi Shelving: 15 dB @ 12 kHz
Mid bell: 12 dB @ 100 Hz - 8 kHz
Low shelving: 15 dB @ 80 Hz
MAIN EQ: 9 EQ (63 Hz, 125 Hz, 250 Hz, 500 Hz, 1 kHz, 2 kHz, 4 kHz, 8 kHz, 16 kHz) 15 dB
DSP Section: A/D and D/A converters 24-bit
DSP Resolution: 24-bit
Type of effects: Large Hall, Medium Hall, Large Room, Medium Room, Karaoke, Short Spring Reverb, Long Spring Reverb, Chamber, Mono Delay, Mono Echo, Stereo Echo, Flanger, Chorus, Reverb + Chorus, Reverb + Delay, Thickener
Presets: 16
Controls: 16-position preset selector
Clip LED
Mute switch with peak LED Indicator
Main Mix Section Noise (Bus noise) Fader 0 dB, Channels muted: -94 dBu
Fader 0 dB, All Input Channels Assigned and Set To Unity Gain: -92 dBu
Phantom Power: Mic Pin 2 / Pin 3 and Pin 1 472V
Power supply main voltage: 100 V - 230 V
Dimensions (WxLxH): 765mm x 400mm x 115mm
Weight: 23.4 lb
