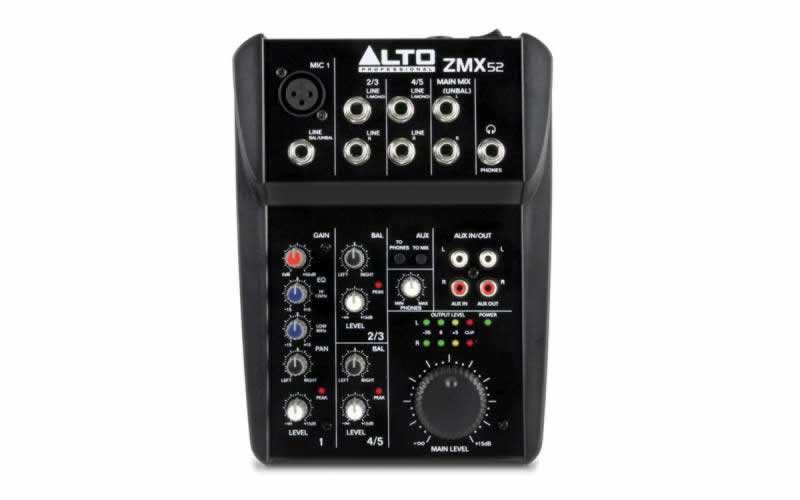

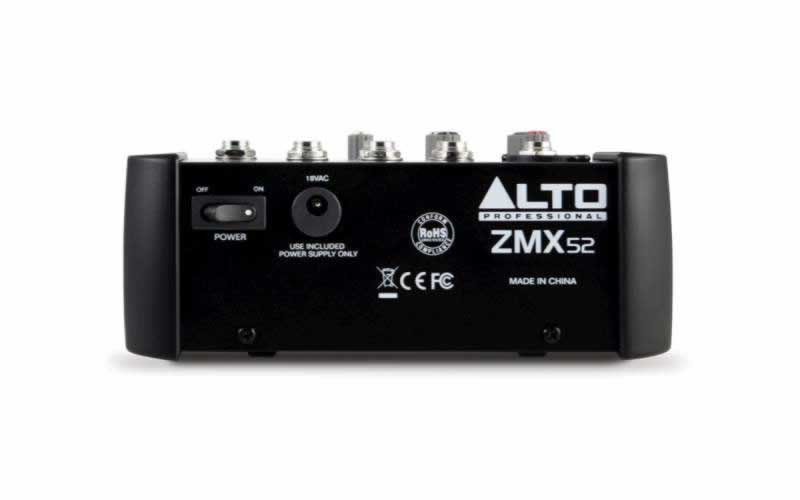

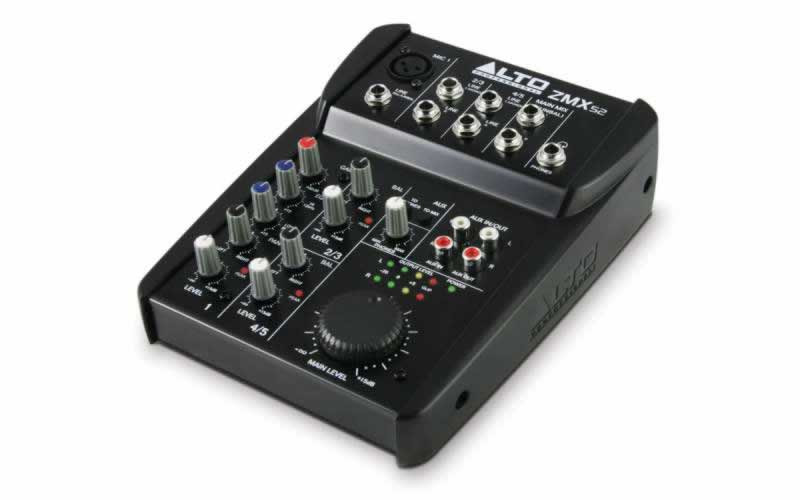

Alto Professional ZEPHYR ZMX52 5-Channel Compact Mixer

Be the first to review this product

Alto Professional
Authorized
Dealer

In Stock In Stock and Ready To Ship
This item is available for immediate delivery. Verified orders received by 3 p.m. Pacific Time usually ship the same day.
Free Shipping FREE Ground Shipping On Orders Over $99
to the contiguous U.S. (details)
List: $89.00
$49.00
You Save: $40.00
    • Buy Now & Earn 98 PDJ Bucks ($0.98) !
alto zmx52
alto zmx52 Alto Professional ZEPHYR ZMX52 5-Channel Compact Mixer Alto Professional ZEPHYR ZMX52 5-Channel Compact Mixer
The ZMX52 is the perfect mixer for quick, easy setups with no hassle. Not only can you can plug dynamic, condenser, and wireless microphones into the first channel, but you also get two stereo channel inputs for keyboards, drum machines, and other instruments. This compact mixer brings the same standard of quality to your performances as our top-of-the-line models. you always get the full dynamic range of your mix every time.

Versatile Inputs and Outputs
The ZMX52 is the perfect mixer for quick, easy setups with no hassle. Not only can you can plug dynamic, condenser, and wireless microphones into the first channel, but you also get two stereo channel inputs for keyboards, drum machines, and other instruments. What's more, you can easily plug in your MP3 player, CD players, or audio from a DVD player into the CD/TAPE input. But, you also have a dedicated stereo output to send to a recorder in addition to the main stereo outputs. Choose the ZMX52 as the audio central command for your live performances, home studio, or video suite.

High headroom, low noise
Just because the ZMX52 is the smallest, most affordable mixer we make doesn't mean you have to make sacrifices. This compact mixer brings the same standard of quality to your performances as our top-of-the-line models. All Alto Professional ZEPHYR ZMX mixers are designed with high headroom and ultra low-noise, discrete mic preamps so you always get the full dynamic range of your mix every time.

Visualize your mix
We designed every ZEPHYR ZMX mixer with your performance in mind. Sometimes venues are dark and it can be hard to see what you're working with. Alto Professional solves this problem by not only color coding each section of the mixer, but also by using brightly colored knobs so that you can easily find what you need to adjust before you ever lay a finger on the mixer. Our blue, red and white pots are instantly easy to identify in dim lighting. LED indicators for output level, peak, and phantom power also assist in making sure that you have multiple visual cues that compliment everything you're hearing.

TECH INFORMATION:
Mono channel (Ch. 1)
Microphone Input: Electronically balanced, discrete input configuration
Frequency Response: 20 Hz to 22 kHz, +/-1 dB
Distortion( THD&N): ?0.005% at +4 dBu, 1 kHz
Gain range: 0 dB to 44 dB (Mic)
Maximum Voltage Gain: 74 dB Ch. Mic Input ? Main Mix out & Tape out, 80 dB Ch. Mic Input ? Control room & phones
SNR (Signal to Noise Rate): ?110 dBu
Phantom power (Mic Pin2/Pin3 and Pin1): +18 V

Line Input: Electronically balanced
Frequency Response: 20 Hz to 22 kHz, +/- 1 dB
Distortion (THD&N): ?0.005% at +4 dBu, 1 kHz
Gain range: 15 dBu to 30 dBu

Stereo channels (Ch. 2 - 5)
Line Input: Electronically balanced
SNR (Signal to Noise Ratio): ?110 dBu
Frequency Response: 20 Hz to 22 kHz, +/- 1dB
Distortion (THD&N): ?0.005% at +4 dBu, 1 kHz
Gain range: 0 dBu
Maximum Voltage Gain: 30 dB Ch. Line ? Main Mix out

Impedance
Microphone Input: 3.9 kOhms
All Other Input: 10 kOhms or Greater
Tape Out: 1 kOhms
All Other Outputs: 120 Ohms

Equalization
Mono channel: High 15 dB @ 12 kHz, Low 15 dB @ 80 Hz

Crosstalk
Adjacent Input: ?-80 dB @ 1KHz (Ch. 1 - 6)
Input to Output: ?-75 dB @ 1KHz (Stereo L/R, Ch. 1-4, Pan: panned hard left or right)

Main Mix Section
Output level: 0dBu Unbalanced, 1/4" Jacks
Max out: +22dBu Unbalanced, 1/4" Jacks
Noise (Bus noise): ?-90 dB @ 20 Hz - 22 KHz (channel & Main level at 0 dB, other at minimum, DSP mute)

Power and Dims
Power Supply: 18 V, 500 mA
Rated Power Consumption: 9 W

Dimensions (WxLxH): 128.1mm x 204mm x 38mm
Weight: 1.65 lb

Additional Information

UPC816311010153
SKUZMX52
ManufacturerAlto Professional
Product ConditionNew
ReturnableYes
