American Audio ELS10A Active 10'' 2-Way Speaker

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

american audio els10a
american audio els10a American Audio ELS10A Active 10'' 2-Way Speaker American Audio ELS10A Active 10'' 2-Way Speaker
Images may show accessories or configurations not packaged with this item.

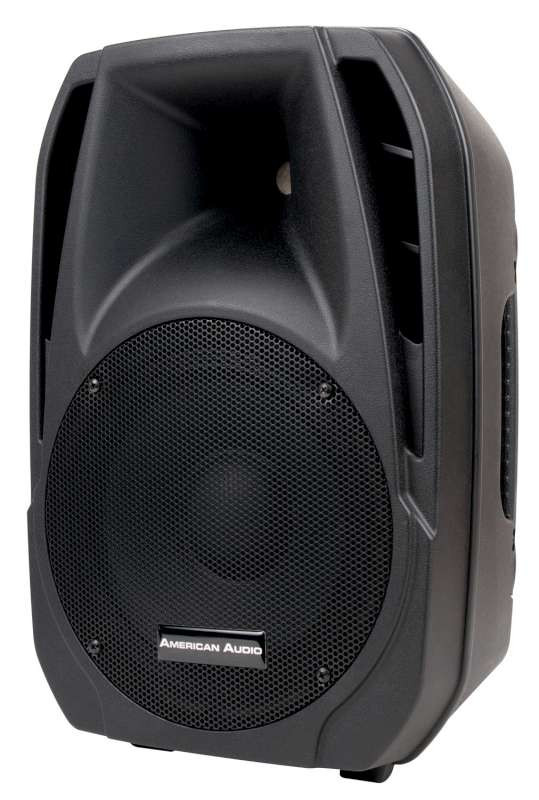

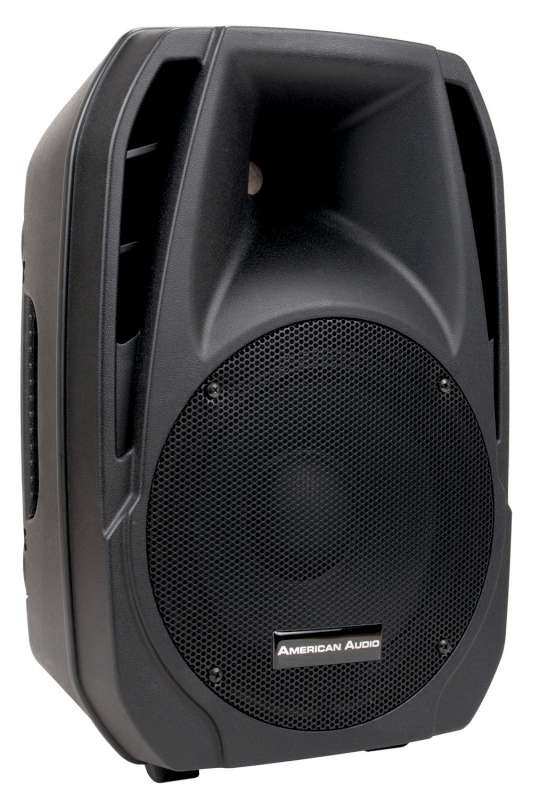

The American Audio ELS 10A is a lightweight 10-inch, 2-way Active Speaker specifically designed for the DJ market. This speaker features a high efficiency design, low power consumption, and plenty of output power for smaller and mid-sized parties.

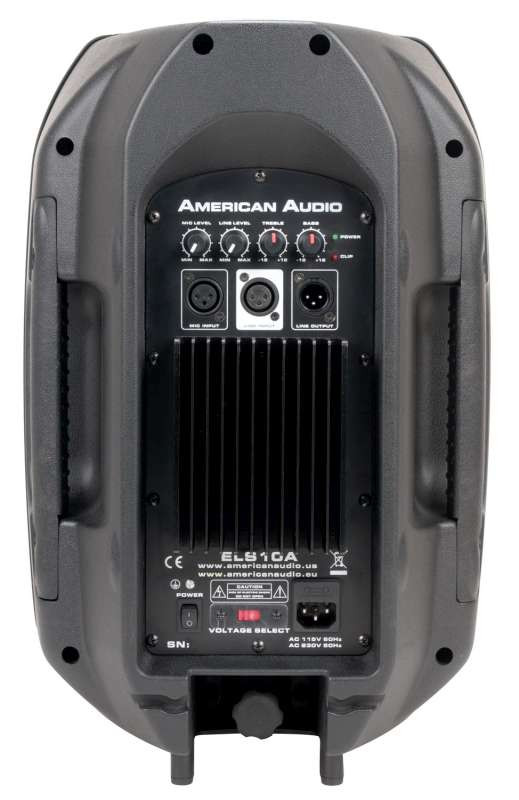

The ELS 10A has many useful features on the rear panel. It has built-in XLR Line input with line level, treble and bass control, plus a built-in XLR microphone input with mic level control - great for when you want to use it for a small PA speaker.

• 10-inch 2-way Powered Speaker
• 1-inch Compression Driver
• Time Aligned Electronic Crossover
• Flyable or Stand Mountable
• Built-in XLR Microphone input with volume control
• XLR Line-in with Level, Treble & Bass control
• XLR through output
• Active signal limiting system with Clip LED indicator on rear panel
• Dimensions (LxWxH): 18.5" x 12.5 x 10" / 469.9 x 317.5 x 254mm
• Weight: 18 lbs. / 8 kg.
• Selectable Voltage: AC 115/60Hz or 230V/50Hz

Speaker Specifications:
• Frequency Response: 70Hz - 18KHz
• Crossover: Active
• Nominal Dispersion: 90 x 50 (HXV)

Amplifier Specifications:
Balanced: Line 20KO, Mic 3.6KO
Unbalanced: Line 10KO, Mic 1.8KO
• Low Pass: 2nd order filter 2.7KHz @ 12 dB/octave
• Low Cut: 2nd order filter 40Hz @ 12 dB/octave
• S/N Ratio:Line 100dB,Mic 80dB
Channel Equalizer:
• Bass: 100Hz 15dB
• Treble: 10KHz 19dB

Additional Information

ManufacturerAmerican Audio
Product ConditionNew - On Clearance
