American Audio ELS12A Active 12'' 2-Way Speaker

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

american audio els12a
american audio els12a American Audio ELS12A Active 12'' 2-Way Speaker American Audio ELS12A Active 12'' 2-Way Speaker
Images may show accessories or configurations not packaged with this item.

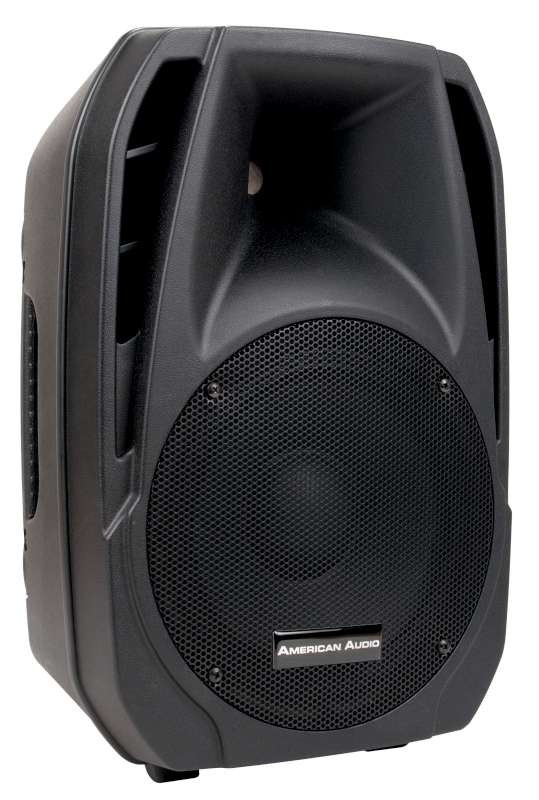

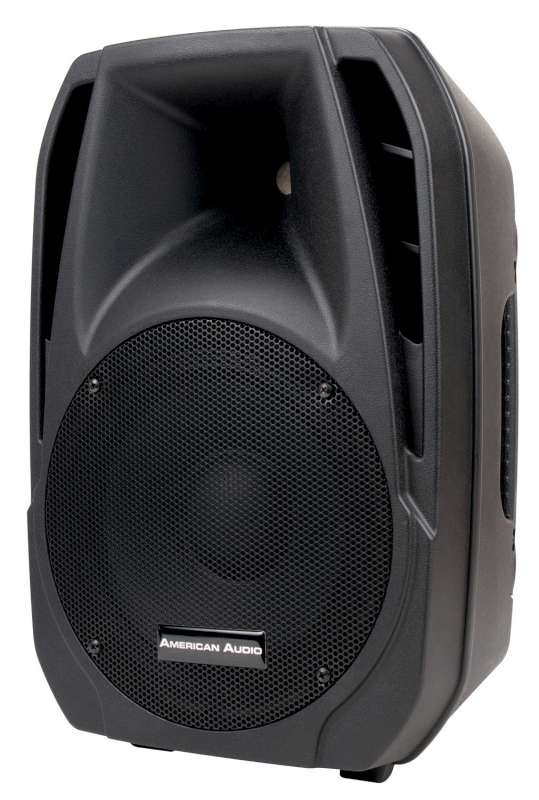

The American Audio ELS 12A is a lightweight 12-inch, 2-way Active Speaker specifically designed for the DJ market. This speaker features a high efficiency design, low power consumption, and plenty of output power for smaller and mid-sized parties.

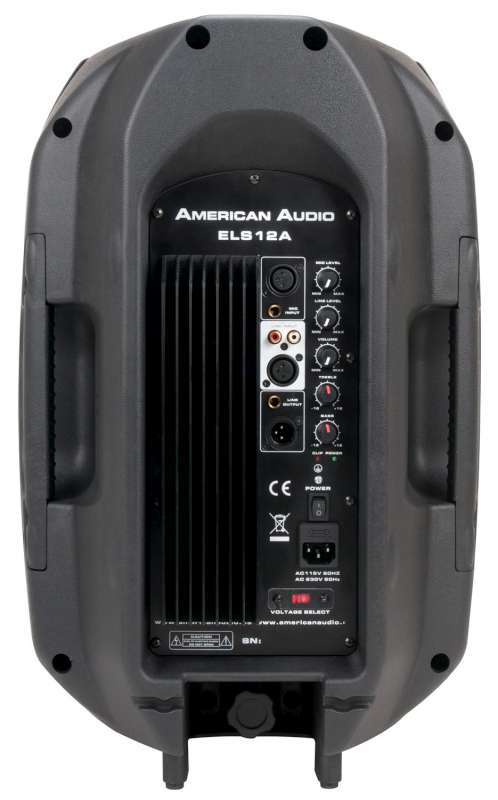

The ELS 12A has many useful features on the rear panel. It has built-in XLR & RCA Line inputs with volume, line level, treble and bass control; line output with XLR & TRS connections; plus built-in XLR & TRS microphone inputs with mic level control - all great features for dialing in your sound and for when you want to use it for a small PA speaker.

• 12-inch 2-way Powered Speaker
• 1-inch Compression Driver
• Time Aligned Electronic Crossover
• Flyable or Stand Mountable
• Built-in XLR & -inch TRS Microphone inputs with volume control
• Line Level, Volume, Treble & Bass control on rear panel
• XLR & RCA Line input
• XLR & -inch TRS through output
• Active signal limiting system with Clip LED indicator on rear panel
• Dimensions (LxWxH): 22" x 15" x 12" / 558.8 x 381 x 317.5mm
• Weight: 26 lbs. / 12 kg.
• Selectable Voltage: AC 115/60Hz or 230V/50Hz

Speaker Specifications:
• Frequency Response: 70Hz - 18KHz
• Crossover: Active
• Nominal Dispersion: 90 x 50 (HXV)

Amplifier Specifications:
Balanced: Line 20KO, Mic 3.6KO
Unbalanced: Line 10KO, Mic 1.8KO
• Low Pass: 2nd order filter 2.7KHz @12 dB/octave
• Low Cut: 2nd order filter 40Hz @12 dB/octave
• S/N Ratio: Line 100dB,Mic 80dB
Channel Equalizer:
• Bass: 100Hz 15dB
• Treble: 10KHz 19dB

Additional Information

ManufacturerAmerican Audio
Product ConditionNew - On Clearance
