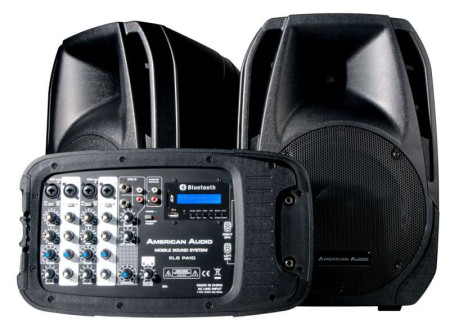

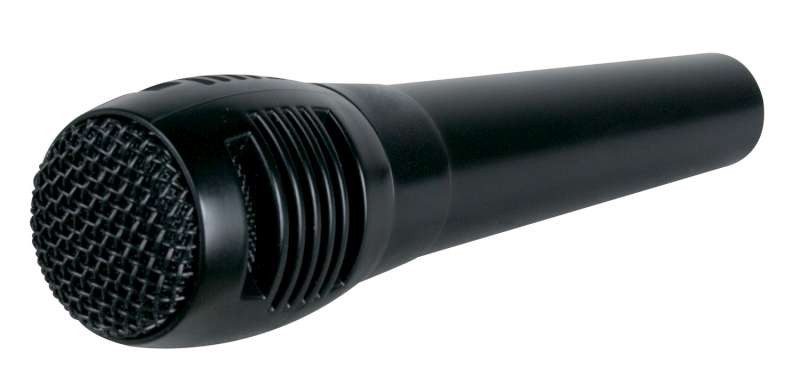

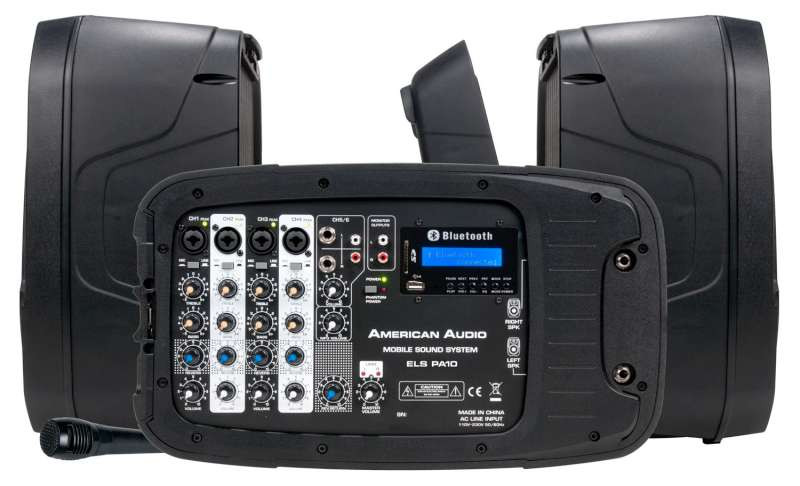

The American Audio ELS PA10 is an all-in-one complete portable powered PA and sound system, consisting of (2) 10-inch portable speakers, (1) Powered Mixer, (1) Dynamic Microphone, and all component cables needed.
Features:• 6-Channel powered mixer
• 6 Button Function with blue LCD on rear panel
• Monitor RCA Output
• 3-band EQ, EFX Sound, Pan and Level on each channel
• Built-in stereo power amplifier with dynamic Distortion Processor
• 4x XLR Mic Combo Jacks.
• 2x TRS stereo Channels with RCA 3.5mm Stereo input.
• Bluetooth Connectivity
• Digital Reverb Effect
• USB or SD/MMC port to connect a flash disc containing music or a MP3 Player
• Effects send on every channel with stereo return
• Effects parameter adjustment allows you to customize each effect selection
• Speaker system with I-inch compression drivers and 10-inch woofers

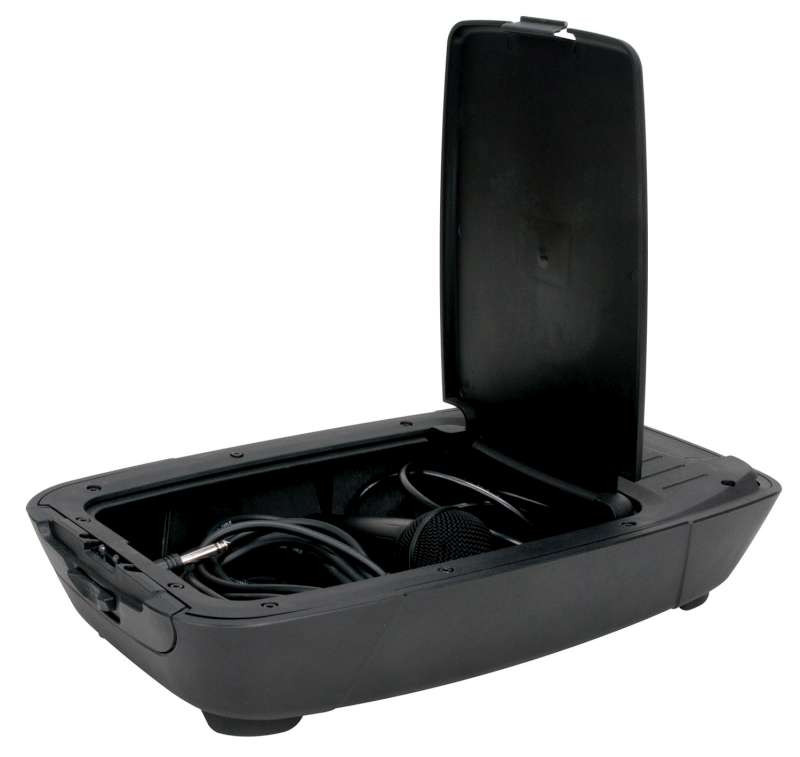

• Speakers have rear latches storage compartment for microphone, cables and accessories.
• Integrated 36mm pole mount socket with stabilizing securing screw
Specifications• Powered mixer with two-way bass-reflex enclosures
• Maximum spl output: 124Db
• Frequency Range (-10db): 50Hz-20KHz
• Amplifier Design: Class D (2x75w stereo)
• Output Connector: 2x 1/ 4 TS amplifier outputs
• Input Connectors: 6 inputs(4 mono mic/line ,1xstereo) Channels: 1-4 are XLR 1/ 4 Jack combo connectors , XRL is a mic level input ,1 / 4 is a line level input and pair of RCA jacks (stereo).
• Output Connectors: Monitor outputs: one pair of 1/ 4 balanced TRS jacks (L+R) and a pair of RCA connectors(stereo)
• Signal Indicators: Ch1-4 Peak LED : Green=signal present, Red=input overload
• EQ: Individual channel Bass and Treble controls, center detent, +/-6db cut and boost
• LF Driver: 10 woofer
• HF Driver: 1 woofer
• Output Connector: 2*1/ 4 TS(unbalanced) amplifier inputs
• Phantom Power: 15V
• Switchable voltage operation: AC 120-240V, 50/60Hz
• Dimensions (LxWxH): 12" x 18" x 10.75" / 305 x 457.5 x 273mm
• Weight: 44 lbs. / 20 kg. (Total Sys)
