American Audio ELX3000 19'' 2U Power Amplifier

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

american audio elx3000

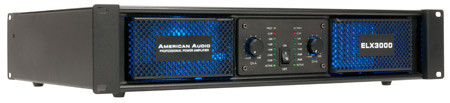

american audio elx3000 American Audio ELX3000 19'' 2U Power Amplifier
The American Audio ELX Power Amplifier Series offers professional features at an affordable price. It features pro In/Out/Thru connections, has a high powered fan to keep the amplifier cool, and has an unique illuminated crystal blue glowing front panel.

The ELX3000 offers 500W RMS @ 8 Ohms (Bridged Mono), a Frequency Response of 20Hz - 20KHz (+/-01dB @ 8 Ohms) and features Balanced XLR Inputs and Speakon and Binding Posts for outputs.

Output Power:
• 2x 180W RMS Per Channel @ 8 Ohms, 1K Hz, 1% THD
• 2x 250W RMS Per Channel @ 4 Ohms, 1kHz, 1% THD

(Bridged Mode, Mono)
• 500W RMS @ 8 Ohms, 1kHz, 1% THD

Specifications:
• Total Harmonic Distortion: Less Than 0.1% (20Hz - 20kHz @ 8 Ohms)
• Frequency Response: (+/-01db, @rated output Power, 8 Ohms): 20Hz - 20K Hz
• Slew Rate: 20V Per usec
• Damping Factor @ 8 Ohm: 60
• Impedance: 20 K Ohms balanced
• Cooling System: 1 individual fan
• Special Feature: Ground Lift
• Input: Balanced XLR
• Outputs: Speakon, Binding Post
• Dimensions (LxWxH): 19" x 13.75" x 3.5" / 483 x 345 x 88mm 2 rack mount spaces
• Weight: 25 lbs. / 11 Kg.

Additional Information

UPCN/A
SKUELX3000
ManufacturerAmerican Audio
Product ConditionNew - On Clearance
ReturnableNo
