ADJ Q-2442-S 19 Mixer

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

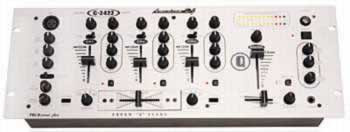

american audio q-2422-s
The new Q-2442-S is identical to the Q-2422 mixer but with the very new popular silver faceplate.

FEATURES
• 2 Phono, 4 line, 2 auxiliaries & 2 mic inputs
• Fader "Q" Start w/ On/Off switch (for use with the American DJ CD Players with Fader "Q" Start)
• Fader allows auto return to preset digital cue points)
• Fader "Q" On/Off switch
• Balanced XLR Outputs
• Bass, mid & treble control for mics
• Volume control for each mic
• High quality Alps Feather Fader(tm) for smooth, clean crossfading (replaceable/Made in Japan)
• On/Off Channel assign switch
• Balance, Pan and Gain for each channel
• Bass, mid and treble control for each channel • Master volume control
• Cue mixing slider
• Split Cue on headphones
• Cue Level Control Cue button w/ LED for each channel
• Master Level Indicators w/ peak hold
• Left/Right master balance
• 12V BNC light connector for gooseneck light
• Zone/Booth volume, treble and bass control
• High level headphone output
• Neutrik(tm) mic 1/4" (6.3mm) / XLR
• On/off/talkover switch for DJ mic
• Left & right turntable ground connectors conveniently located on rear panel
• Independent light control signal output for touch panels and chase controllers - 1/4" connection
• Soft-touch rubber knobs for better control
• Line Output: 28V, peak to peak, (+20dB)
• S/N Ratio: >85dB
• Channel EQ: -35dB - +15dB for bass, mid and treble
• Frequency Range: 20Hz - 20kHz, +/-1dB
• Distortion: <0.03%
• Talkover: -15dB
• Headphone Impedance: 16 Ohms
• Power: 115V 60Hz / 230V 50Hz switchable
• Crossfader: FF-5
• Dimensions: 19" W x 7" D x 2.25" H (4 rack mount spaces)

Additional Information

UPCN/A
SKUQ-2422-S
ManufacturerAmerican Audio
Product ConditionNew - On Clearance
ReturnableNo
